Neve 1073OPX 8-channel Microphone Preamp (B-Stock)

AMS NEVE 1073OPX

The Neve 1073OPX gives you eight remote-controlled 1073 mic preamps with Marinair transformers in a 2U rack unit sporting flexible I/O connection and analogue/digital monitor path for easy integration in any Studio/Live/Broadcast environment and Total Recall.

1073 PREAMPS

The Neve 1073OPX delivers the legendary sound of the most desirable preamp with its sought-after tonal quality, warmth, low mid punch and subtle colouration. Each of the eight preamps can be remotely controlled via software and can be perfectly recalled thanks to Neve’s Total Recall feature. In addition to the Mic/Line inputs, each channel also provides DI inputs, which benefit from the transformer-coupled input stage.

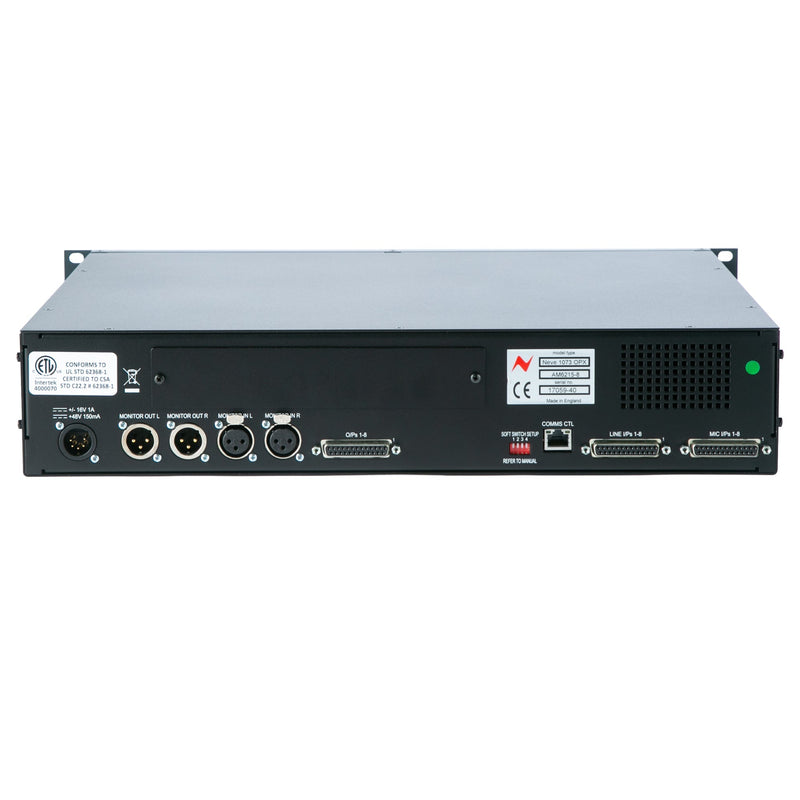

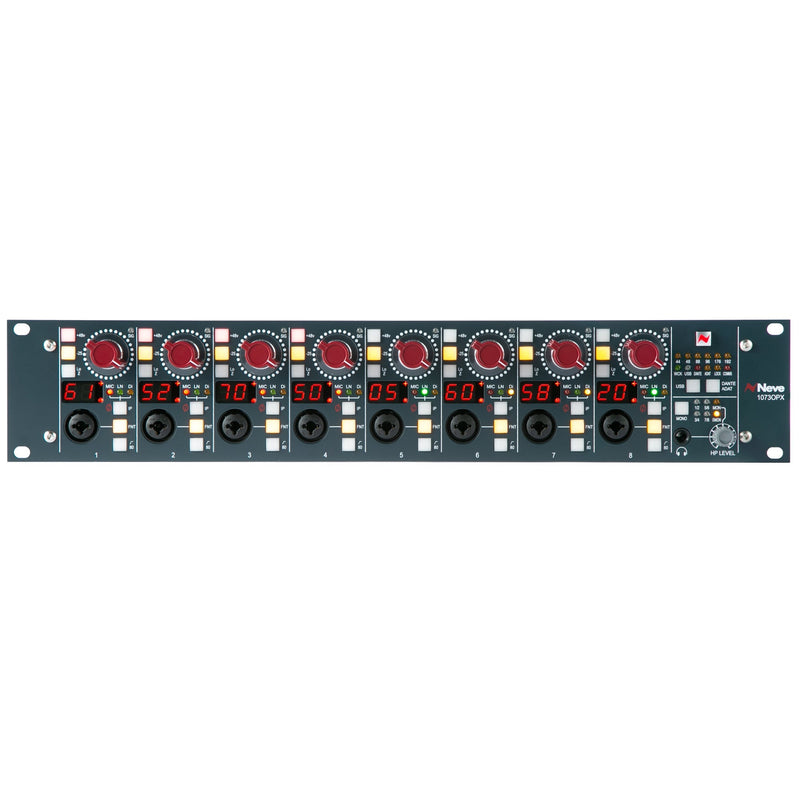

The 1073OPX includes comprehensive connectivity with eight combos Jack/XLR connectors on the front, microphone and line inputs over DB25 as well as eight line output over DB25. An additional Monitor path includes dual input and output over XLR. A headphone output is included on the front letting you monitor each pair of channels individually or the monitor path.

DIGITAL CARD

The optional digital I/O card with 192kHz/ 24-bit mastering-grade A/D conversion allows the 1073OPX to be used as a primary Audio interface to any computer with a DAW. A Dante connector also provides Audio-over-IP applications as a Primary or Secondary Dante device.

Specifications :

• 8 Channels of remote-controlled 1073^® Mic/Line/Instrument Preamplifiers.
• Exclusive Neve^® Marinair^® transformers on Microphone input.
• Class-A transformer-less DI input
• Remote control software can control up to eight 1073OPX racks at a time (64 preamps!)
• Automatic Total Recall™ of all settings.
• Front Mic/Line combi input
• Rear Mic/Line D-Type connection
• 80Hz High pass filter
• -25dB pad
• Phase flip
• Smart Phantom Power control
• Hi/Lo Impedance selector from 300Ω to 1.3KΩ
• Separate stereo monitor path with Independent level control
• Latency-free monitoring of all signal sources
• Eight front D.I inputs for instrument tracking
• Front-mounted Headphone output
• Heat Dissipation 40 Watts
• Input voltage range 90-240V

Digital Card (optional add on) General Specification

• USB connection for use as standalone primary audio interface/core audio device.
• Dante Primary and Secondary connection for Audio-over-IP application.
• Word Clock Sync In/Out
• Selectable Headroom from +18, +24, +26dB

Audio Performance

• Headroom: >+26dBu @ 1kHz (<0.5% THD+N)
• Frequency Response: Typically +/-0.15dB, 20Hz to 20kHz
• Distortion (THD+N): Typically 0.002% @ 1kHz (measured at +20dBu, 10Hz to 80kHz filter)
• General Noise: <-85dBu (20Hz to 22kHz filter)
• Mic EIN Noise: Typically -125dBu (20Hz to 20kHz)
• Microphone Inputs: Input Impedance ≈300Ω or ≈1.3kΩ (PAD out). Transformer coupled. Gain 20dB to 70dB in 1dB steps
• Line Inputs: Input Impedance ≈10kΩBridging(PAD out). Gain -20dB to +20dB in 1dB steps
• DI Inputs: Input Impedance >650kΩ. Transformer-less Class A Gain 30dB to 60dB in 1dB steps

AD/DA Card Specification

• Noise: > -118dBFS
• Dynamic Range: 120dB
• Distortion: <0.0007%
• RTL: 4.01ms (192kHz, 32 buffer)

Dimensions

• Height: 89mm/3.5 inches (2U)
• Width: 484mm/19.05 inches (19″ rack)
• Depth: 360mm/14.17 inches
• Weight: 7.8Kg

• Eight channels of the legendary 1073
• Marinair Transformers
• Software Remote Control and Total Recall
• Remote control via AMS NEVE Remote software
