This B-Stock unit comes in original packaging, as new.
A full warranty of one year will be issued with this purchase.
At a glance

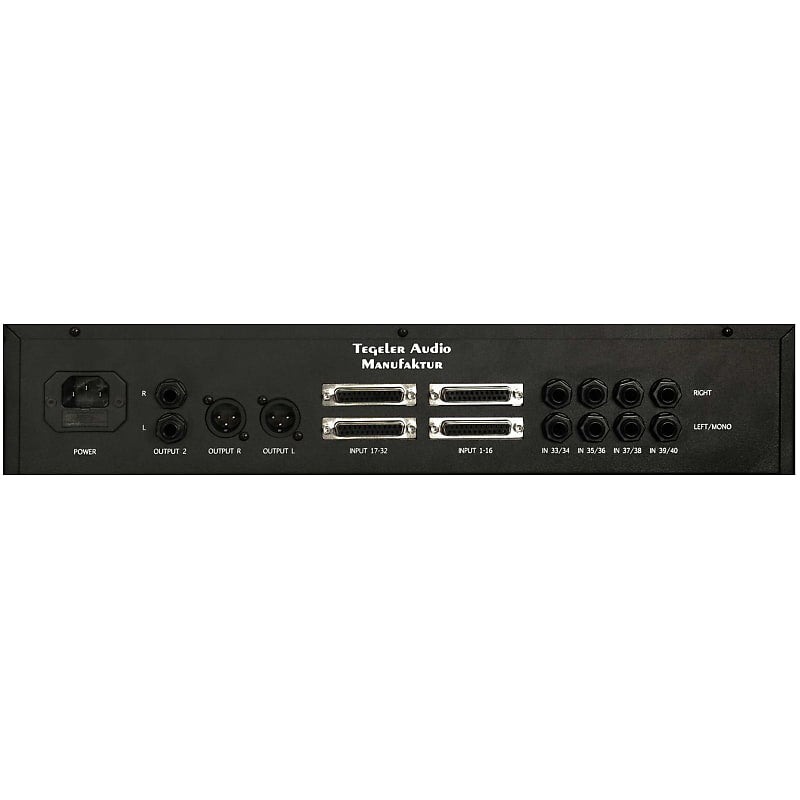

- 2 × 16 balanced inputs via 4 sub D connectors (XLR or TRS via adapter cable, Tascam® layout)
- 2 × 4 balanced TRS inputs (Neutrik®stereo jack)
- Internal mix bus with up to +22 dBu
- Active Tubes and Transformer output stage

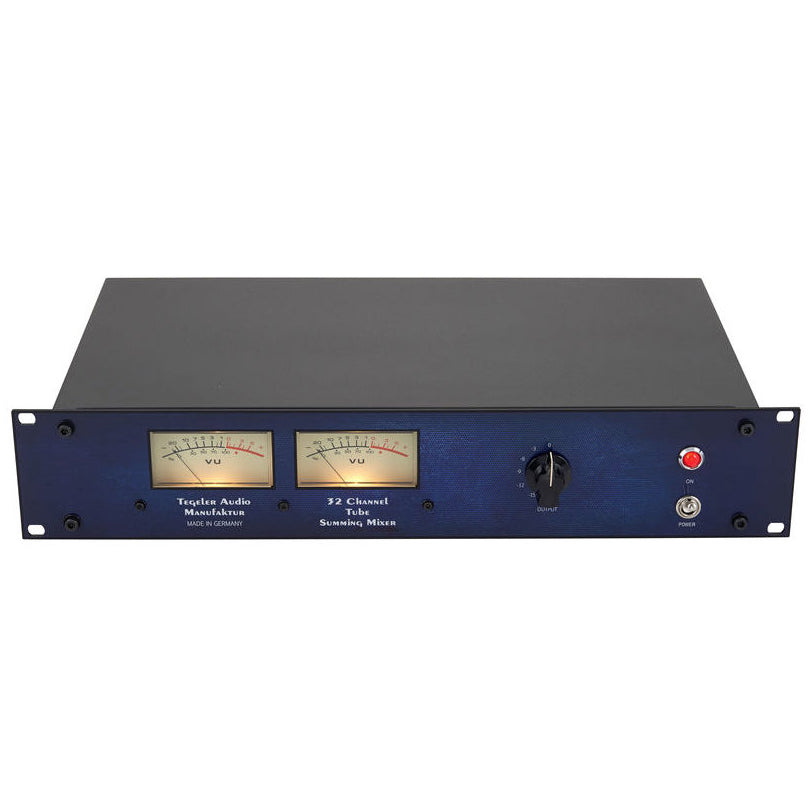

- Illuminated VU meters
- Output Level switch in -3db increments
The Tegeler Audio TSM Tube Summing Mixer is a 40-channel valve summing mixer with 32-stereo input over D-Sub and four stereo inputs over TRS
The Tegeler Audio TSM Tube Summing Mixer’s active tubes and transformer output stage imparts an unmistakably analogue sound; open and defined yet full of warmth with improved separation that can only be achieved via analogue summing.
With 40 inputs, the TSM will let you glue the most demanding mixes but several units can be cascaded for increase input count or even use several units for surround mixes.
A stepped output control offers level reduction in 3dB increments down to a total of -15dB. This ensures easy recalls and a mix that can be reproduced accurately.
Mono signals can also be included in the summing simply by inserting the cable into the lower TRS Jack input. The mono signal is then automatically distributed equally over Left and Right channels.
