DPA SMK4060 Stereo Kit
DPA SMK4060 Stereo Kit
DPA SMK4060 Stereo Kit
DPA SMK4060 Stereo Kit DPA SMK4060 Stereo Kit DPA SMK4060 Stereo Kit

DPA SMK4060 Stereo Kit

Stereo mic system

CAP2: 0 £1,026.00
£855.00 ex VAT
Call or Email for availability.

Stereo Microphone Kit including two DPA 4060, two BLM6000-B Boundary Layer Mount, DAD6001-BC MicroDot, DMM0007, DMM0011-B and two MHS6001 Microphone Holder for Strings

The DPA SMK4060 Stereo Mic Kit is an affordable stereo mic system designed to be used in project studios or on stage.

The DPA SMK4060 features two DPA4060 omnidirectional miniature microphones and a multitude of accessories allowing them to be mounted on almost any instrument. The BLM6000 Boundary Layer Mount allows you to use the 4060 as a boundary microphone, positioned close to a reflective surface like floor, tables and walls, to capture the surrounding ambience around the microphone. Such setup provides a much-improved clarity, intelligibility as well as high sensitivity.

Additional mounting accessories include the DMM0007 soft rubber holder which allows you to mount your microphone in a piano, classical guitar, drums and more without leaving any glue marks on your beloved instrument while ensuring optimum placement.

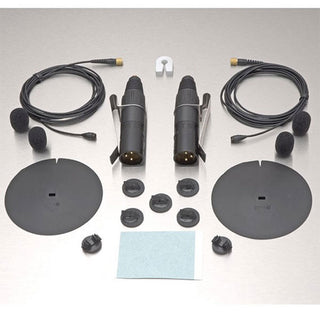

The DPA SMK4060 Stereo Microphone Kit contains:

  • 2 x 4060 Omnidirectional Mic, Hi-Sens, Black, 3-meter cable
  • 2 x BLM6000-B Boundary Layer Mount, Black
  • 2 x DAD6001-BC MicroDot to 3-pin XLR (P48) w. Belt Clip
  • 1 x DMM0007 Universal Surface Mount, 5 pcs.
  • 2 x DMM0011-B Magnet Mount, Black
  • 1 x DUA0560 Windscreen, Black, 5 pcs.
  • 2 x MHS6001 Microphone Holder for Strings

Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm

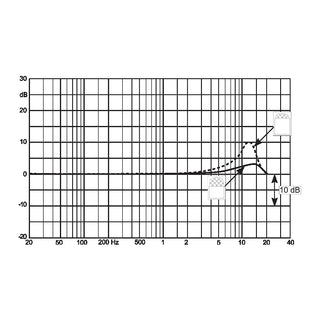

  • Frequency range, ± 2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz, High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Total harmonic distortion (THD): <1% THD up to 123 dB SPL peak
  • Dynamic range: Typ. 100 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: 30 - 40 Ohm
  • Cable drive capability: Up to 300 m (984 ft)

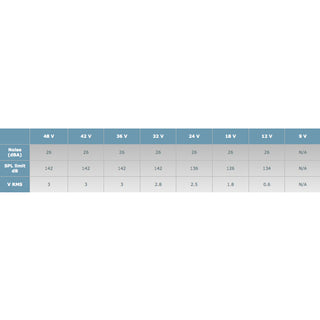

  • Power supply: For wireless systems: Min. 5 V – max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V.
  • Connector: MicroDot
  • Weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 3 m (9.4 ft)
  • Sensitivity selection tolerance (at 1 kHz): ± 1.5 dB
