Grace Design m103

Grace Design m103
Grace Design m103

Grace Design m103

Transformerless Channel Strip

CAP2: 0 £2,364.00
£1,970.00 ex VAT
Call or Email for availability.

Single channel mic preamp, EQ and optical compressor.

Grace Design m103

Transformerless Channel Strip

CAP2: 0 £2,364.00
£1,970.00 ex VAT
Call or Email for availability.
Visa MasterCard American Express Discover Diners Club Maestro UnionPay Shop Pay Apple Pay Google Pay

Single channel mic preamp, EQ and optical compressor.

Novuna Logo

Spread the cost of your purchase over 12-48 Months

KMR Audio - Cables and Accessories

AT A GLANCE

  • Fast and musical transimpedance microphone preamplifier architecture
  • Updated audio path with 0.5% precision metal film resistors
  • New 12 position gold plated rotary gain switch
  • High-performance output line driver amplifier and HPF amplifier
  • Ribbon mic mode (also great for dynamic mics)- Relay bypass of phantom power decoupling capacitors, increased input impedance, and 48V lockout
  • 3-band precision EQ, fully parametric mid band, peak and shelf mode for hi and low bands
  • Newly designed optical compressor
  • Mic amp direct output
  • EQ/COMP section line input
  • Bombproof laser-etched black anodized front panel
  • Sealed gold contact relay for Hi-Z input switching
  • Built-in power supply
    Led indicators for +48V, Ribbon mode, and HPF
  • Powerful 10 segment meters for gain reduction and output level
  • Five-year warranty on parts and labour
  • Made in the USA
KMR Audio - Grace Design m103
KMR Audio - Grace Design m103

Single channel mic preamp, EQ and optical compressor.

The Grace Design M103 Channel Strip begins with the tried and true m101 transformerless microphone preamplifier circuity. Headroom, detail, clarity, musicality –its all there. Complete with the exclusive ribbon mic mode, a 75Hz HPF and 48V phantom.

The 3 band EQ section is built around single stage parallel tuning architecture, which minimizes circuitry and delivers natural, musical tonal shaping at all frequencies. Controls include a fully parametric mid, with shelving and peak modes on the high and low bands.

The compressor circuit is based on an optical attenuator - the purest, high fidelity gain control mechanism available. It provides gentle limiting to fairly heavy compression, while remaining neutral and transparent. The perfect way to zip it all up and send it downstream - clean, intact and alive.

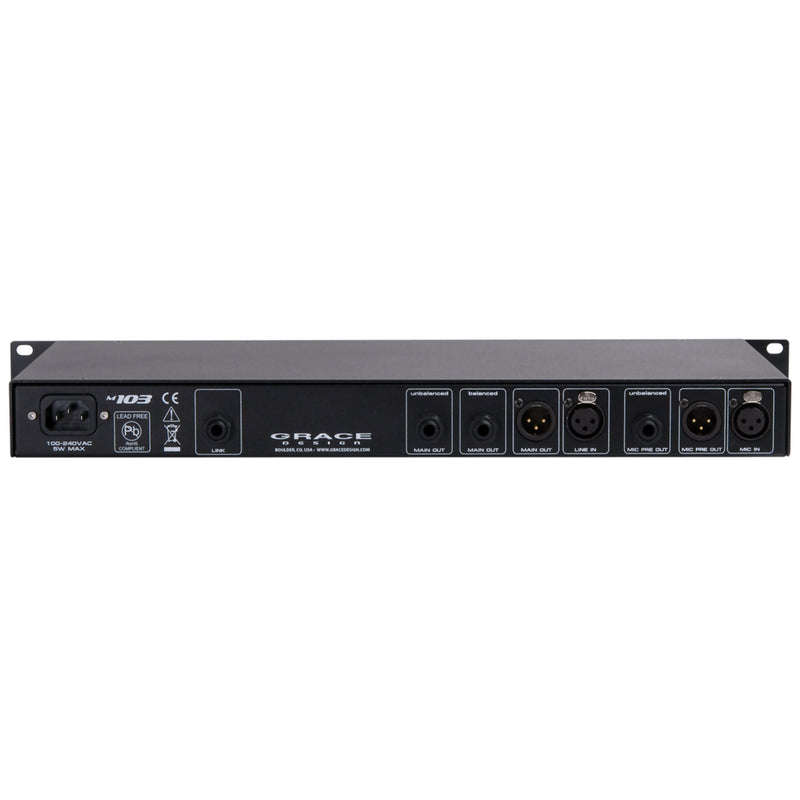

Comprehensive I/O options allow the mic pre and EQ/COMP sections to be accessed independently of each other, and the order of the EQ/COMP is switchable. The compressor controls can be linked for stereo applications, and 10 segment gain reduction and output meters make monitoring signal status simple.

The m103 - a channel strip by name, a powerful tool by design.

More From

KMR Audio Grace Design
Logo

At a glance

  • Fast and musical transimpedance microphone preamplifier architecture
  • Updated audio path with 0.5% precision metal film resistors
  • New 12 position gold plated rotary gain switch
  • High-performance output line driver amplifier and HPF amplifier
  • Ribbon mic mode (also great for dynamic mics)- Relay bypass of phantom power decoupling capacitors, increased input impedance, and 48V lockout
  • 3-band precision EQ, fully parametric mid band, peak and shelf mode for hi and low bands
  • Newly designed optical compressor
  • Mic amp direct output
  • EQ/COMP section line input
  • Bombproof laser-etched black anodized front panel
  • Sealed gold contact relay for Hi-Z input switching
  • Built-in power supply
    Led indicators for +48V, Ribbon mode, and HPF
  • Powerful 10 segment meters for gain reduction and output level
  • Five-year warranty on parts and labour
  • Made in the USA
