IGS Audio S-Type 500 VU

500 Series mix buss VCA compressor with Sidechain HPF, Dry/Wet Mixer, large gain reduction meter and THAT Integrated Circuit, 500 Series mix buss VCA compressor with Side chain HPF, Dry/Wet Mixer and THAT Integrated Circuit

Read More

CAP2: 0 £649.00 £540.83 ex VAT

AVAILABLE TO ORDER

Sold out but more on the way. Contact us for accurate delivery time and our best price.

Check Availability & Get Our Best Price

WHY CHOOSE TO BUY FROM KMR AUDIO?

  • 22+ Years Industry Experience
  • Rated “Excellent” By Our Customers
  • Lifetime Tech Support, Always Free
  • Easy 14 Day Returns

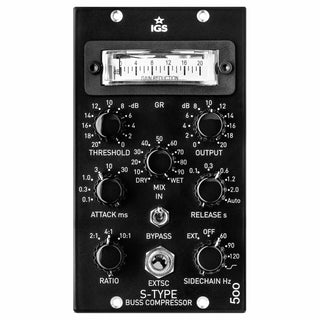

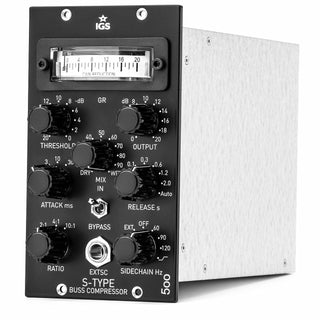

The IGS Audio S-Type 500 VU is a 500 Series mix buss VCA compressor inspired by the SSL G Series mix buss compressor.

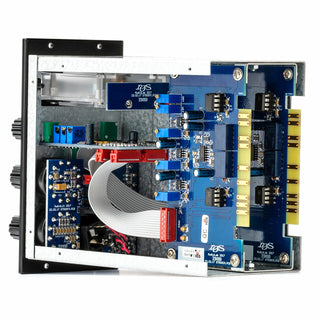

The IGS Audio S-Type 500 features at its core the THAT integrated circuit. This is combined with a balanced audio path with ultra-fast op-amps. This provides a very transparent sound with minimal level of noise. The S-Type delivers the big punchy sound associated with Mixbuss VCA compressors.

Modernised for today's music production and mixing, the S-Type 500 boasts extra features such as a large gain reduction meter and external sidechain. A Sidechain HPF with 6 selectable frequencies further augments its flexibility. Set its frequency for punchier low-end more controlled dynamics. Finally, a Dry/Wet mixer lets you blend in processed signal with the dry for more transparent compression.

  • Parallel compressor with stepped manipulators (excl. Mix)
  • Stereo VCA compressor
  • Large Gain Reduction Meter
  • Sidechain filter: Flat, 60, 90, 120, 180, 240 Hz
  • Maximum output +21 dBU, +4dB operating level
  • Max gain: 20dB, max reduction: 20dB
  • Frequency response 5Hz to 20kHz; +/- 0.1dB
  • Noise level dBA: -102dB, crosstalk: 101 dB
  • THD+N @0dBU: 0.012%
  • Suitable for 500-series 'lunchbox' racks (2 slots)
DPD UPS
  • UK over £99 FREE
  • UK under £99 £10
  • EU £36
  • Rest of World £80

Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.

We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock.

This item, like everything we supply, comes with the complete support of our expert team. Our excellent technicians have been specifying, building and supporting studios for over twenty years. If you have any problems with installation, setup or everyday use, they’re never more than a click away, and always happy to help.

You can contact them here.

IGS Audio S-Type 500 VU

IGS Audio S-Type 500 VU

AVAILABLE TO ORDER

KEY BENEFITS

Transparent Sound Quality

The IGS Audio S-Type 500 VU features ultra-fast op-amps and a balanced audio path, ensuring very transparent sound with minimal noise, ideal for high-quality audio productions.

Enhanced Dynamic Control

Equipped with a Sidechain HPF and six selectable frequencies, the S-Type 500 allows for precise dynamic control, enabling punchier low-end and more controlled sound dynamics.

Flexible Processing

This compressor includes a Dry/Wet mixer, allowing for seamless blending of processed and dry signals. This feature is perfect for achieving more transparent compression without losing the original sound quality.
