Creative Integration Flexibility
Description line Effortlessly connect stereo effects pedals like reverbs and delays to professional audio setups, enhancing music production with creative sound possibilities.
KEY FEATURES

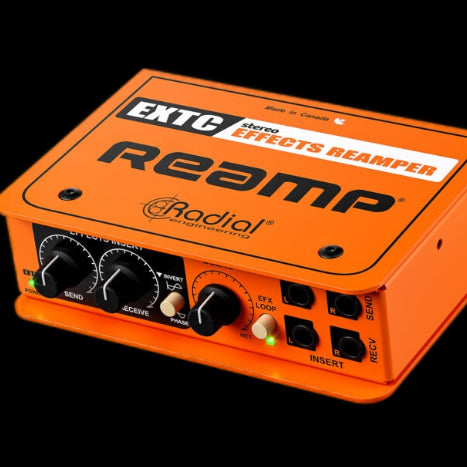

The Radial EXTC Stereo provides a seamless solution for integrating stereo guitar effects pedals into your recording setup by facilitating connections between these pedals and professional audio equipment like recording interfaces and mixing consoles. This opens up a world of creative possibilities for your music production.
With the EXTC-Stereo, you can effortlessly link stereo effects pedals, including reverbs and delays, to the line-level inputs and outputs of your recording interface or console. Whether you want to infuse drum overheads with the richness of a multi-tap delay or infuse a fresh dimension into a stagnant keyboard patch using a flanger or chorus pedal, this versatile tool has you covered. Explore its potential on vocals, strings, or any pre-recorded tracks to inject a fresh creative spark into your mixes and reinvigorate your existing pedal collection.
EXTC-Stereo Applications

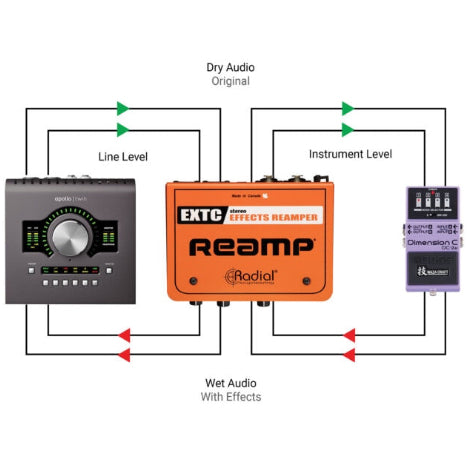

Achieving Stereo Effects with Reamping: The EXTC-Stereo is the vital link between your recording interface and stereo guitar pedals, simplifying applying your beloved pedal effects to pre-existing audio tracks. This ingenious device transforms the dry audio signal from line to instrument level, enabling seamless processing through your pedals. It subsequently elevates it back to line level for recording the transformed results.

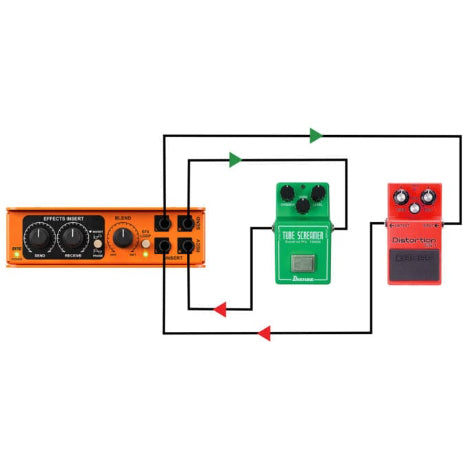

Connecting mono guitar pedals: The EXTC-Stereo seamlessly accommodates mono guitar pedals, offering you the same level of compatibility and versatility. You have the option to connect two separate pedal chains simultaneously, effectively doubling your creative potential. Plug one pedal chain into the left insert jacks on the EXTC-Stereo and the other into the right insert jacks.
Reamping through Single or Dual Amplifiers: The EXTC-Stereo offers the versatility to function like traditional Reamp® boxes, facilitating the routing of your tracks through an amplifier. Simply connect the send jacks to your amplifier inputs and employ a microphone to capture the ensuing sonic outcomes.
Direct Recording from Your Pedalboard: Utilizing the EXTC-Stereo, you can link your instrument and pedalboard directly to the line-level inputs on your recording equipment. Connect your pedalboard to the insert receive jacks and adjust the receive level control.
Specifications :
- Proprietary Active Circuit with Class-A buffers
- Number of channels : 2
- Frequency response : 20Hz to 20kHz (-0.5dB/+0.5dB)
- Dynamic range :>+130dBu
- Total harmonic distortion : 0.007% @ 0dBu, 1kHz
- Intermodulation Distortion :0.002% @ 0dBu, 1kHz
- Common Mode Rejection Ratio :34dBu @ 60Hz, 42dBu @ 3kHz
- Noise Floor :-105dBu
- Maximum Input :+11dBu
- Input Connectors :1/4” TRS/XLR Combo Jacks, 1/4” TS Insert Recv
- Output Connectors :1/4” TRS, XLR, 1/4” TS Insert Send
- Extras : SA series rack mount available
- Construction : 14-gauge Steel Chassis
- Finish : Durable Powder Coat
- Connects guitar effects pedals to pro audio equipment.
- Enables integration of stereo pedals into recordings.
- Compatible with mono guitar pedals as well.
- Facilitates reamping through one or two amplifiers.
