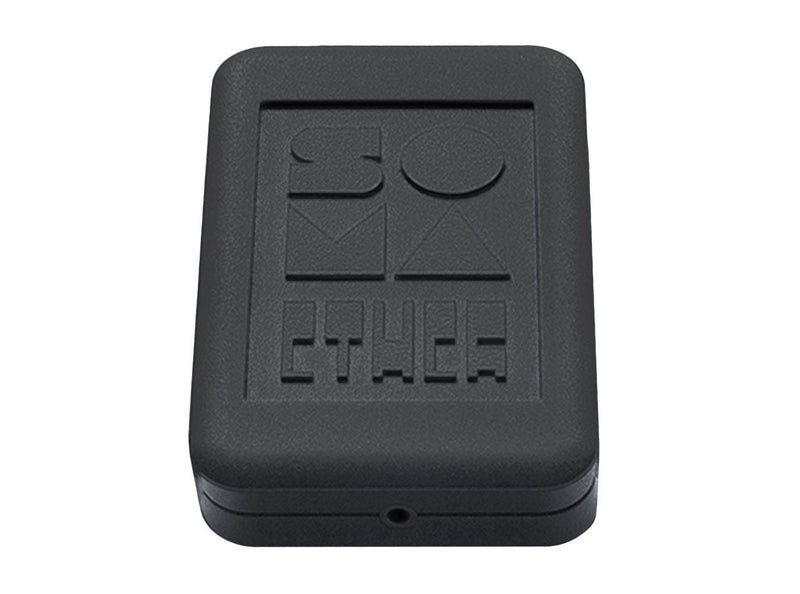

The SOMA Ether is a wide-band receiver designed to allow users to perceive the electromagnetic landscape surrounding them.
Functioning as an unconventional form of anti-radio, the SOMA Ether does not discriminate among radio signals like traditional radios. Instead, it captures all forms of interference and radiation within the electromagnetic spectrum, from hertz to gigahertz. Unlike radios equipped with tuned input circuits that filter out unwanted frequencies, the Ether captures radio waves "as is," allowing it to detect the unintentional electromagnetic emissions created by human activity. This unique capability enables live electromagnetic field listening and recording.
The inspiration for the Ether project draws from the design of early 1900s radios, which lacked tuning wheels and were primarily used for Morse code transmissions. Each transmitter at that time had its distinct timbre or "voice," making it possible to distinguish them by ear.
Regarding physical attributes, the Ether is pocket-sized, measuring 103x58x17mm, and is lightweight at 73g with batteries. It operates on two AAA batteries, and its remarkable energy efficiency is evident from the fact that the initial set of alkaline batteries in the prototype lasted for six years. It has a battery life of over 300 hours when using alkaline or lithium batteries.
Considerable attention has been given to the design of the Ether, making it a unique accessory for the modern conscious individual. Crafted with specially designed European enclosures and high-quality PCB and furniture, the Ether offers a distinctive sound experience and an aesthetically pleasing, high-quality gadget.
The Ether incorporates both magnetic and electric components for sensing radiation. Its built-in magnetic antenna, reminiscent of the antennas used in early long-wave radios, offers maximum sensitivity along the Ether's axis. Altering the Ether's orientation, angle, and position will result in changes in the captured sound. The electric component features antennas printed on the PCB and special input pins on the front surface.
Ether V2 introduces two external antenna pins, allowing users to touch conductive materials or surfaces, including their bodies, to function as a large external antenna. This unique feature produces varied sounds, and experimenting with different metal objects or materials, such as rails, tubes, metallic doors, or parts of buildings, can yield intriguing results. The two pins are connected to different points in the circuit and interact differently with electromagnetic waves. Switching between them or using both simultaneously allows users to manipulate the captured sound. In less urban settings, connecting a piece of wire measuring 1-4 meters to one of the pins can yield fascinating auditory experiences.
The Ether V2 has two control wheels for adjusting sound and power settings. The upper wheel controls high-frequency amplification and regeneration, allowing users to focus the Ether on different levels of surrounding interference and obtain rich and captivating soundscapes. The lower wheel adjusts the volume.
Unlike simple inductive sniffers found online, the Ether is not limited to close-range scanning. While it can perceive low-frequency magnetic fields, its unique regenerative circuit and demodulator distinguish it as a true radio wave receiver rather than a mere amplifier of low-frequency fields. However, the Ether can also detect the electric component of radiation, capturing frequencies well beyond the audio range with higher sensitivity. Consequently, it is designed for use during urban walks and can even pick up sounds in forested or coastal environments.
The Ether's sensitivity to nearby digital circuitry necessitates precautions, such as maintaining a minimum distance of 30 cm/1 ft from other electronic devices like phones, laptops, or recorders. Nevertheless, it functions effectively even when carried alongside such devices in pockets and bags.
The Ether's output is a standard 3.5mm stereo jack with parallel L and R contacts, resulting in a mono output. To record Ether's output, users should connect it to a recording device, such as a ZOOM recorder, using an audio cable at least 1m/3ft in length. Although Ether can produce distinct sounds when connected to recording equipment, the purest experience is achieved with headphones. Some sounds, however, may remain best experienced through personal perception.
Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.
We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock.
This item, like everything we supply, comes with the complete support of our expert team. Our excellent technicians have been specifying, building and supporting studios for over twenty years. If you have any problems with installation, setup or everyday use, they’re never more than a click away, and always happy to help.
You can contact them here.
The SOMA Ether captures a wide spectrum of electromagnetic interference and radiation, from hertz to gigahertz, unlike traditional radios that filter frequencies, allowing for detection of unintended electromagnetic emissions.
At a mere 73g and pocket-sized dimensions, the Ether offers remarkable portability and energy efficiency, with a battery life exceeding 300 hours on standard AAA batteries, making it highly convenient for extended use.
Ether V2 features external antenna pins that let users utilize conductive materials or even their own body as an antenna, enriching the variety of sounds and interactions with the electromagnetic environment around them.
