Buchla Ziggy Analog Desktop Synthesizer

The Buchla Ziggy is a hybrid analogue-digital desktop synthesizer instrument built around a fully analogue complex oscillator and modulation oscillator, featuring digital control, preset recall, integrated effects, low-pass gate architecture, and gestural modulation assignment for patch-free West Coast synthesis workflows.

Instrument Design and Philosophy

Buchla Ziggy continues the West Coast synthesis tradition by prioritising interaction, timbre shaping, and musical gesture over conventional subtractive workflows. It presents a fully self-contained instrument rather than a modular system, removing the need for patch cables while preserving the depth and unpredictability associated with classic Buchla designs. The interface encourages immediate performance and composition through direct manipulation of parameters, with modulation assignment achieved through physical interaction rather than routing complexity.

Analogue Signal Path and Digital Control

Ziggy uses a fully analogue signal path for its core sound generation, including the complex oscillator, modulation oscillator, and low-pass gate. The complex oscillator begins as a sine wave and evolves through wavefolding, harmonic blending, and modulation into richer timbres such as sawtooth, square, and spike variations. The modulation oscillator operates at both low frequency and audio rates, enabling amplitude modulation and frequency modulation while also functioning as a secondary audio source.

Digital control governs these analogue elements, enabling precise modulation routing, parameter recall, and storage of over 100 presets. This hybrid architecture maintains analogue character while introducing modern workflow efficiency, allowing instant recall of complex sound states without manual reconfiguration.

Low-Pass Gate and Envelope Behaviour

The low-pass gate operates as a voltage-controlled amplifier, filter, or a combination of both, using a Sallen-Key filter topology. This design shapes amplitude and frequency simultaneously, producing organic, percussive responses characteristic of Buchla systems. Instead of traditional ADSR envelopes, Ziggy uses blended envelope shapes controlled by time and intensity, encouraging exploration and variation rather than fixed parameter programming.

Modulation System and Cycler Engine

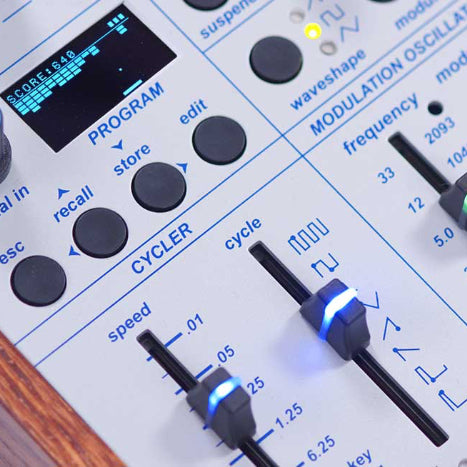

Ziggy introduces the Cycler, a multi-functional modulation source that combines the behaviour of a clock, envelope generator, LFO, and random generator. The Cycler generates evolving modulation patterns that can influence pitch, timbre, and gate triggering. Users can introduce controlled randomness through the uncertainty parameter, allowing dynamic variation in modulation behaviour.

An additional extra-low-frequency oscillator provides slower modulation cycles, while the modulation oscillator extends modulation into audio-rate domains. The system allows modulation assignment through button selection and slider interaction, removing the need for patch cables and streamlining complex routing.

Sound Design and Tonal Capability

Ziggy supports a wide range of sonic outcomes through its combination of analogue oscillators, wavefolding, modulation sources, and envelope shaping. It produces percussive transients, evolving textures, harmonic drones, and structured tonal material. The integration of alternative tunings and scale quantisation allows pitch sliders to align with musical systems, supporting both Western and non-Western tonal frameworks.

Integrated Effects and Output Processing

A built-in digital effects engine enhances the analogue signal with reverb, delay, chorus, flanging, distortion, and pitch shifting. A macro-based control system simplifies effect shaping through parameters such as wet-dry balance and spatial size. This processing stage expands the spatial and textural range of the instrument without external hardware.

Connectivity and Integration

Ziggy integrates with external systems through multiple control standards. It supports MIDI over USB-C, USB 2.0, five-pin DIN, and Type-A connections, enabling sequencing and parameter control from hardware and software environments. It also supports 1V/octave CV, gate, and modulation signals for compatibility with Eurorack systems and controllers such as the Buchla LEM 218.

An external audio input allows signals to pass through the low-pass gate, enabling external processing using Ziggy’s analogue circuitry. Stereo output is available via dual quarter-inch outputs and a headphone connection.

User Interface and Workflow

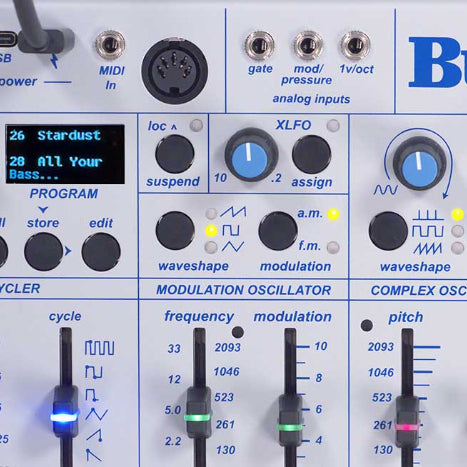

The interface replaces traditional patching with gesture-based modulation assignment, where users hold buttons and move sliders to define routing. LED feedback indicates modulation relationships and system states, providing immediate visual clarity. Presets store complete configurations, allowing rapid recall during performance or production.

Users can configure deeper parameters and manage patches through an integrated web-based editor using WebMIDI, enabling firmware updates and extended control through a browser environment.

Physical Design and Practical Use

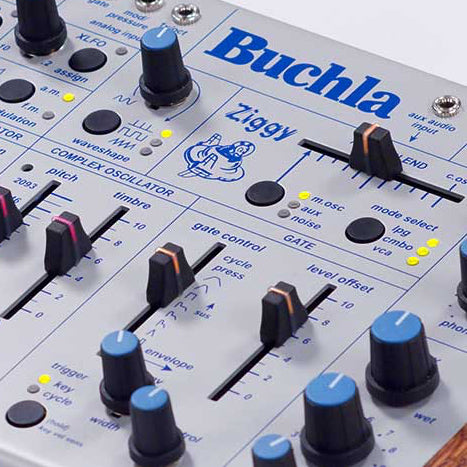

Ziggy features a compact desktop format with a durable enclosure combining oak and steel. USB-C power simplifies integration into modern studio setups and supports portable use with power banks or computers. The patch-free design reduces setup time and physical complexity, making it suitable for both studio and live environments.

Why Choose Buchla Ziggy

• Immediate sound creation without patching complexity
• Combines analogue warmth with digital precision and recall
• Encourages experimentation through gestural modulation control
• Adapts to both structured composition and exploratory performance
• Integrates seamlessly with modular, MIDI, and DAW-based systems
• Supports alternative tunings for expanded musical expression
• Delivers a complete instrument experience in a compact format

• Fully analogue complex oscillator with wavefolding and harmonic shaping
• Analogue modulation oscillator with audio-rate and low-frequency operation
• Digital control over analogue circuitry with preset storage and recall
• Low-pass gate with VCA, filter, and combined modes using Sallen-Key design
• Non-traditional envelope system based on blended shapes and timing control
• Cycler modulation source combining LFO, envelope, clock, and randomness
• Additional extra-low-frequency oscillator for extended modulation
• Gesture-based modulation assignment without patch cables
• Integrated digital effects including reverb, delay, chorus, flanger, distortion, and pitch shift
• Macro-based effects control with wet-dry and size parameters
• Scale quantisation and support for alternative tuning systems
• MIDI connectivity via USB-C, USB 2.0, DIN, and Type-A
• CV, gate, and 1V/octave compatibility with modular systems
• External audio input routed through the low-pass gate
• Stereo output via headphone and dual quarter-inch outputs
• Web-based editor with WebMIDI support for patch management and firmware updates
• USB-C powered operation with optional dual power input
