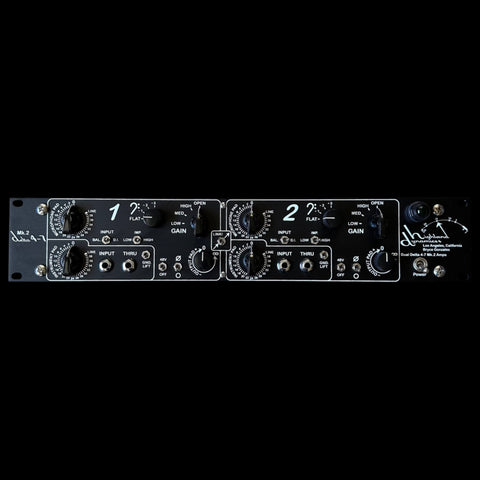

Highland Dynamics Dual Delta 4-7

Dual-channel Valve Preamp

Dual-channel, valve-based, transformer-balanced preamp hand-wired with premium components and offering switchable input impedance, variable input and output pads, four gain modes via feedback control, three selectable bass cut filters, cascading channel routing, and flexible D.I. and THRU options for advanced signal processing and tonal shaping.

Read More

CAP2: 0 £3,499.00 £2,915.83 ex VAT
Call or Email for availability.

AVAILABLE TO ORDER

This product is not currently in stock. Please allow additional processing time for delivery. For more information, please contact our team.

Check Availability & Get Our Best Price

WHY CHOOSE TO BUY FROM KMR AUDIO?

  • 22+ Industry Years Experience
  • Trusted By Our Customers
  • Lifetime Tech Support, Always Free
  • Great Reviews From Buyers

The Highland Dynamics Delta 4-7 MK.2 is a dual-channel, transformer-balanced, hand-wired microphone preamp and D.I. unit inspired by a revered 1960s British circuit, built in a limited run of 20 units using premium components and delivering a distinctly three-dimensional, valve-driven sonic character.

Design and Build Quality

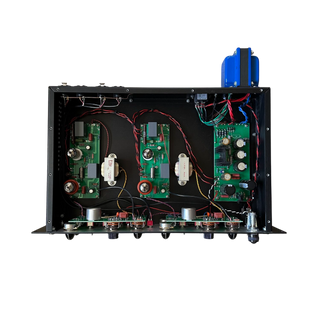

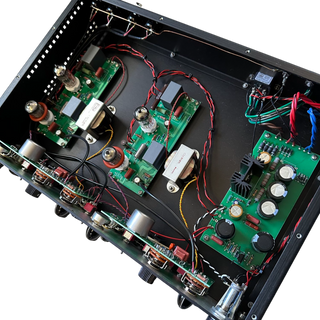

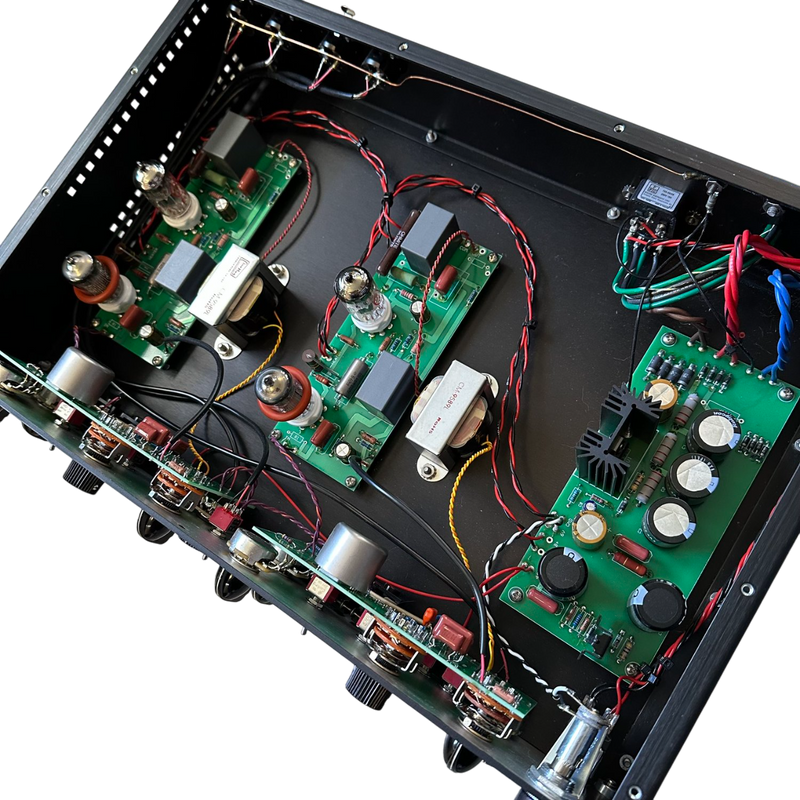

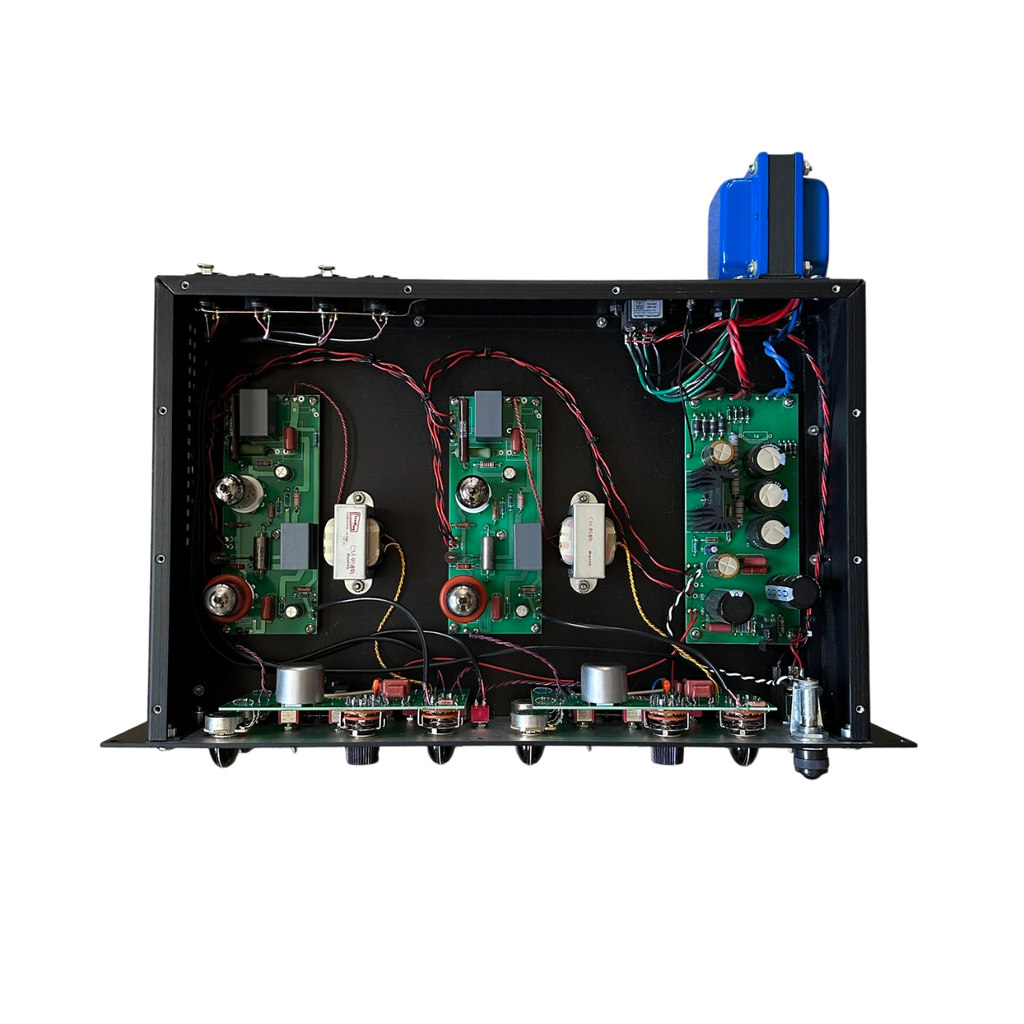

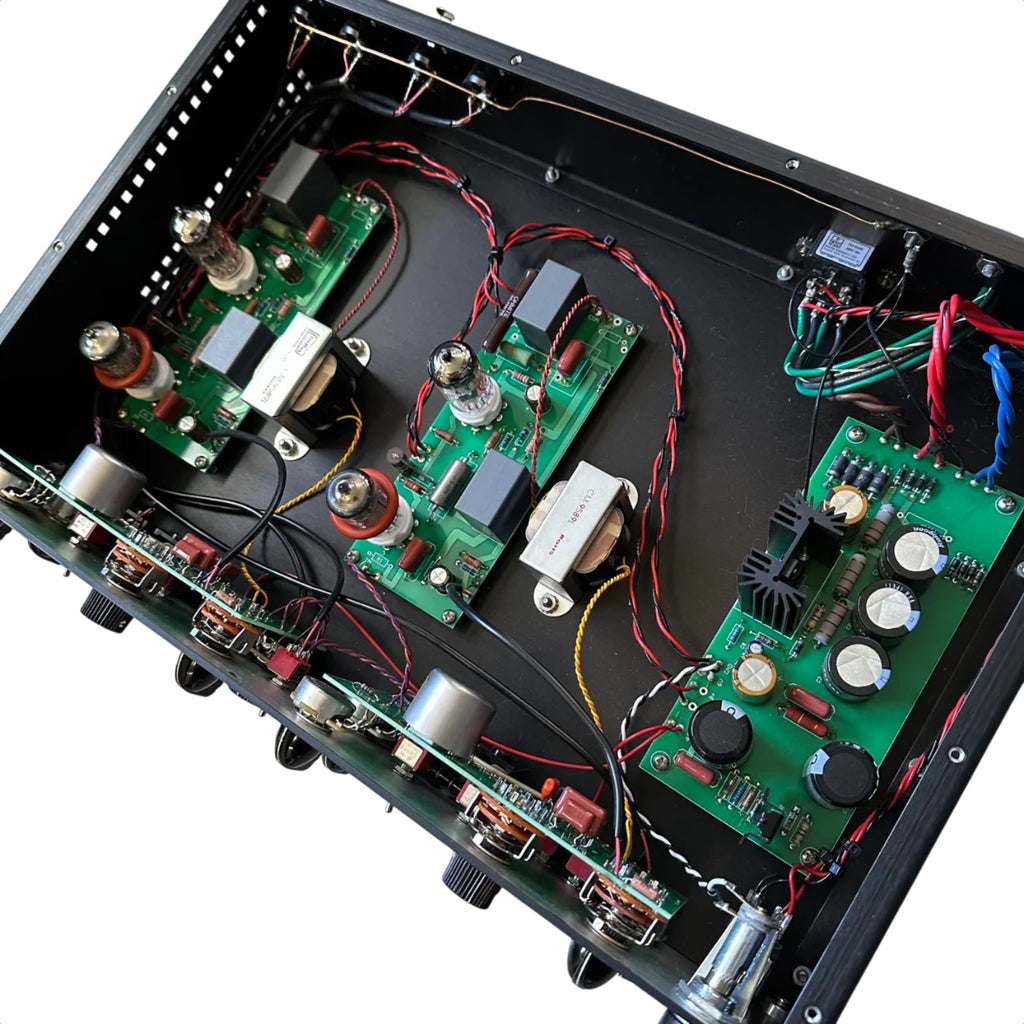

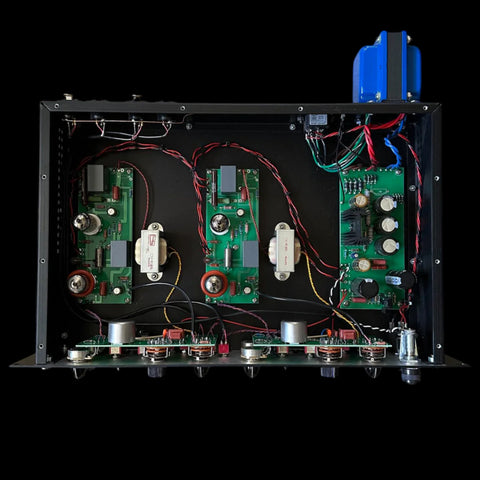

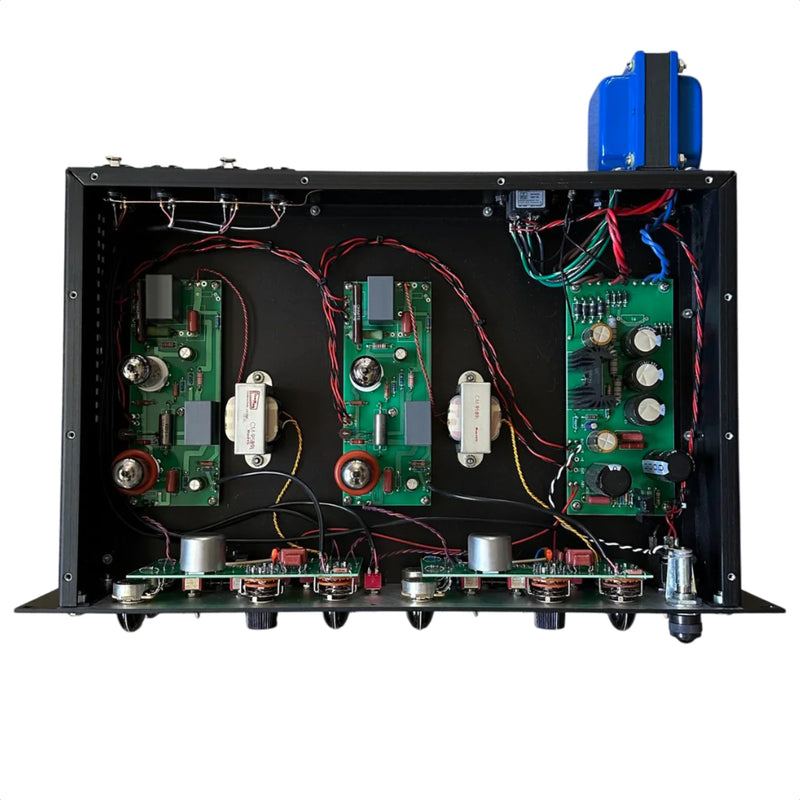

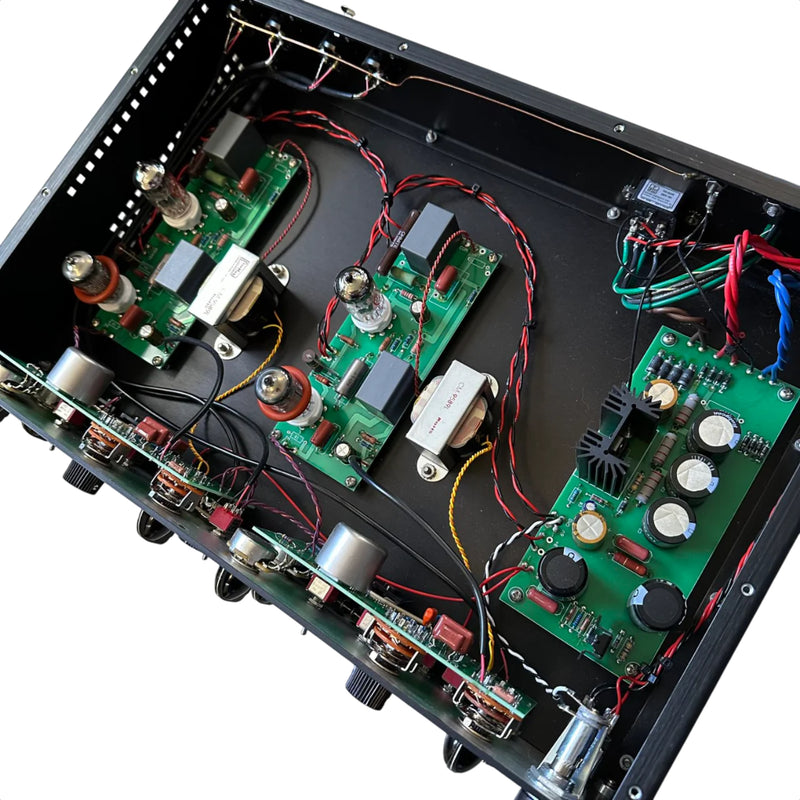

Highland Dynamics constructs each Delta 4-7 MK.2 unit by hand using point-to-point wiring, solid-core copper wire, and oversized film capacitors for robust amplifier power delivery. The signal path features paper and oil capacitors from West-Cap, Vitamin Q, and NYT, along with 2-watt carbon composition resistors. Precision 1% resistors maintain stability in non-audio circuits. Grayhill rotary switches govern both gain and bass cut functions, ensuring durability and repeatability. The preamp is transformer-balanced at both input and output, employing an EF86 tube for gain and a 6DJ8 for output drive, enhancing clarity and tonal warmth.

Input and Output Flexibility

Users can select between 150 and 37.5 ohm input impedances via transformer taps, offering tonal variation and ideal matching for various microphone types. The Delta 4-7 MK.2 includes a variable input pad, positioned after the input transformer and D.I., which allows seamless adjustment from no attenuation to line-level input—particularly beneficial for fine-tuning mic or instrument signals. The output pad, situated post-output transformer, enables users to reduce hot output levels without altering the character of the signal.

Gain Control and Tonal Shaping

The unit features four gain stages—Low, Medium, High, and Open—with gain controlled by varying the amount of negative feedback applied to the EF86 tube. The Low setting delivers the most hi-fi, controlled sound, while the Open mode applies no feedback for maximum gain and pronounced harmonic colouration. The variable input and output pads allow users to maintain preferred tonal settings while managing levels. Additionally, the bass cut filter offers three high-pass options—roughly 60 Hz, 150 Hz, and 300 Hz—placed before the gain stages to refine low-end response early in the signal path.

Advanced Routing and Overdrive Potential

Each channel of the Delta 4-7 MK.2 can be cascaded into the other via a routing switch, enabling console-like tube saturation. Setting the second channel to line level and gradually disabling the pad introduces dynamic overdrive, suitable for creative tone shaping and saturation. The D.I. input caters to direct instrument recording, while the THRU output allows users to integrate effects pedals between channels—ideal for achieving stereo clean and stereo effected signals simultaneously.

  • Dual-channel, transformer-balanced, hand-wired preamp using EF86 and 6DJ8 valves
  • Switchable 150Ω or 37.5Ω input impedance for tonal variation and microphone matching
  • Variable input pad post-transformer for fine level control from mic to line input
  • Output pad for managing hot signal levels post-output transformer
  • Four feedback-based gain modes: Low, Medium, High, and Open (no feedback)
  • Three-position bass cut filter between 60 Hz and 300 Hz pre-gain stage
  • Cascade routing between channels with D.I. THRU for creative stereo and effects integration
