Waldorf Iridium Desktop MK2

The Waldorf Iridium Desktop MK2 is a 16-voice, four-part multi-timbral hybrid synthesizer that runs on the Waldorf Synthesis Platform OS 4.0, combining three multi-mode oscillators per voice, dual stereo filters, a Digital Former processing stage, deep modulation, studio-grade effects, MPE support and a multi-touch performance interface within a compact desktop instrument.

Quantum-Class Hybrid Synthesis

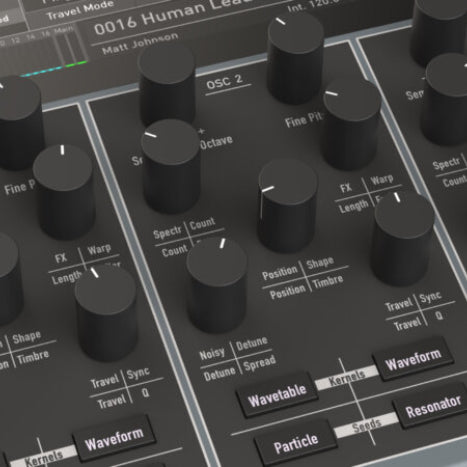

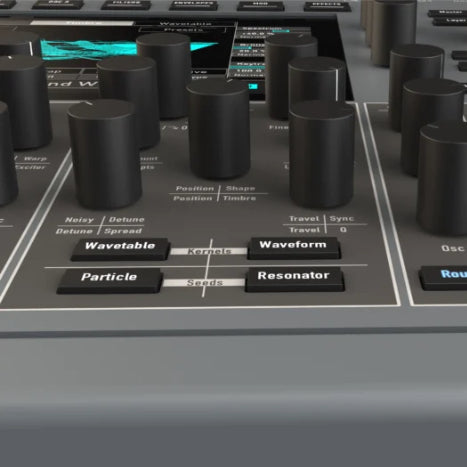

Iridium Desktop MK2 delivers the full synthesis architecture of Waldorf’s flagship Quantum engine in a compact metal desktop format designed for studio and performance use. Each voice contains three oscillators, and every oscillator can run one of six synthesis engines. These include traditional wavetable synthesis, classic waveform generation for virtual analogue sounds, the Particle engine for granular and sample-based textures, the Resonator mode for physical modelling inspired timbres, the modular-style Kernels engine for complex FM and phase modulation structures, and the experimental Seeds waypoint synthesis system.

This architecture allows sound designers and producers to move between familiar subtractive synthesis and more experimental digital synthesis techniques within a single patch. Complex layered tones, evolving textures and unconventional timbres all remain accessible through a coherent interface designed for fast programming and exploration.

Dual Stereo Filters and Digital Former Processing

Iridium MK2 shapes sound through a powerful filtering and processing architecture that operates in true stereo. Each voice contains two digital stereo filters that provide multiple models and routing options. These include 12 dB and 24 dB low-pass, high-pass and band-pass responses in several configurations, alongside characterful models derived from Waldorf instruments such as Nave, Largo, PPG and Quantum, as well as state-variable filter designs.

After the filter stage, the Digital Former module expands the sound-shaping possibilities further. This section introduces additional filter structures alongside comb filtering, drive circuits, bit reduction, ring modulation and formant processing. The result allows users to refine tonal balance, introduce harmonic complexity or create aggressive digital textures directly within the instrument.

Five effects slots per layer complete the signal path with studio-grade processing. Flexible routing enables the use of reverbs, delays, modulation effects, equalisation and dynamics processing so that finished sounds can emerge from the synthesizer ready for mixing or performance.

Advanced Modulation and Expressive Performance

Iridium Desktop MK2 includes an extensive modulation system that supports detailed sound movement and expressive performance control. Six envelopes and six LFOs provide primary modulation sources, while the Komplex Modulator enables intricate modulation patterns that evolve over time.

A 40-slot modulation matrix allows fast assignment between modulation sources and destinations, enabling sophisticated routing without interrupting the creative workflow. Per-note parameter locks allow individual notes to carry unique parameter values, which introduces subtle variation and expression into sequences.

The Flavour control adds natural variation to timing, pitch and timbre to create more organic sounding performances. Iridium MK2 also incorporates an advanced arpeggiator and step sequencer, alongside MPE compatibility for multidimensional control from expressive controllers.

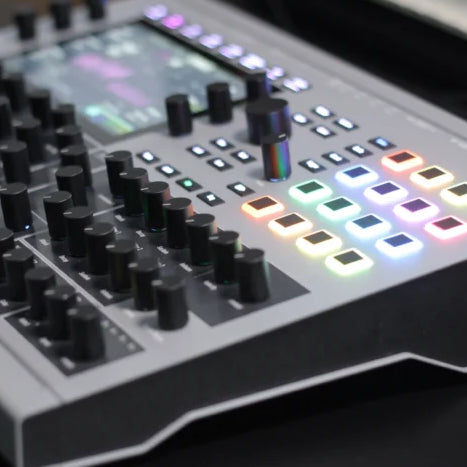

The performance interface combines a responsive multi-touch display with XY control and a 4×4 RGB pad matrix. These pads can trigger notes, chords or scales and provide a tactile interface for live performance and pattern creation.

Studio Integration and Connectivity

Iridium Desktop MK2 integrates easily into modern studio and live performance environments. Stereo audio inputs and outputs allow external audio processing through the synthesizer engine, while a dedicated headphone output supports monitoring.

The instrument provides both DIN MIDI and USB MIDI connectivity with MIDI 2.0 compatibility for expanded control resolution. Four high-resolution CV inputs enable integration with modular systems, and analogue clock and gate connections allow synchronisation with hardware sequencers.

Storage support includes microSD and USB media, which simplifies sample import and patch management. The synthesizer ships with more than 1750 factory presets and allows storage of up to 7000 patches. A 4 GB internal flash memory supports user samples, and compatibility with other Waldorf Iridium and Quantum instruments makes sound sharing straightforward across the platform.

Why Choose Waldorf Iridium Desktop MK2

• Provides the full Quantum synthesis engine in a compact desktop instrument suitable for both studio production and live performance

• Enables deep sound design that ranges from classic analogue tones to granular textures, physical modelling timbres and complex digital synthesis

• Offers a highly expressive modulation and performance system that supports MPE controllers and evolving musical textures

• Integrates easily into modern hybrid studios through extensive MIDI, CV and audio connectivity

• Delivers finished, mix-ready sounds using built-in filters, Digital Former processing and high-quality effects

• 16-voice polyphony with four-part multi-timbral architecture
• Waldorf Synthesis Platform OS 4.0 or later
• Three oscillators per voice with six synthesis engines
• Wavetable synthesis engine
• Virtual analogue waveform synthesis
• Particle granular and sample-based synthesis
• Resonator physical modelling style synthesis
• Kernels modular-style FM and phase modulation engine
• Seeds waypoint synthesis engine
• Dual digital stereo filters per voice
• Multiple filter models including Nave, Largo, PPG and Quantum styles
• 12 dB and 24 dB low-pass, high-pass and band-pass filters
• State variable filter models
• Digital Former processing stage
• Comb filtering, drive, bit reduction and ring modulation
• Formant processing within Digital Former
• Five effects slots per layer
• Reverb, delay, modulation effects, EQ and dynamics processing
• Six envelopes
• Six LFOs
• Komplex Modulator
• 40-slot modulation matrix with fast assignment
• Per-note parameter locks
• Flavour control for timing, pitch and timbre variation
• Advanced arpeggiator
• Integrated step sequencer
• MPE support for expressive controllers
• Multi-touch colour display with XY control
• 4×4 RGB pad matrix for notes, scales and chords
• Stereo audio inputs and outputs
• Headphone output
• DIN MIDI connectivity
• USB MIDI connectivity
• MIDI 2.0 compatibility
• Four high-resolution CV inputs
• Analogue clock and gate connections
• microSD storage support
• USB storage support
• 4 GB internal sample flash memory
• Over 1750 factory presets
• Storage for up to 7000 patches
• Patch compatibility with other Waldorf Iridium and Quantum models
