Authentic Wind Instrument Feel
Experience the tactile response of real saxophone keys with a mechanical keybed, designed for technically minded players who demand an acoustic setup's expressiveness.
KEY FEATURES
The ASM Diosynth is an advanced wind synthesizer that merges a Hydrasynth-derived engine with a powerful sample playback system, delivering a vast palette of acoustic and electronic tones for technically minded players.
Deep Hybrid Synthesis and Performance Control

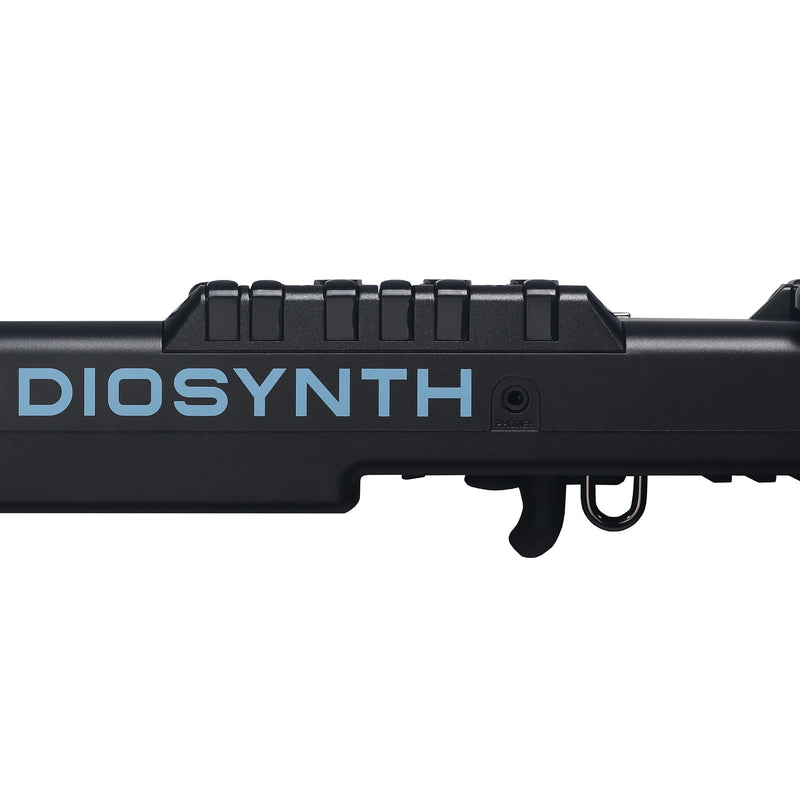

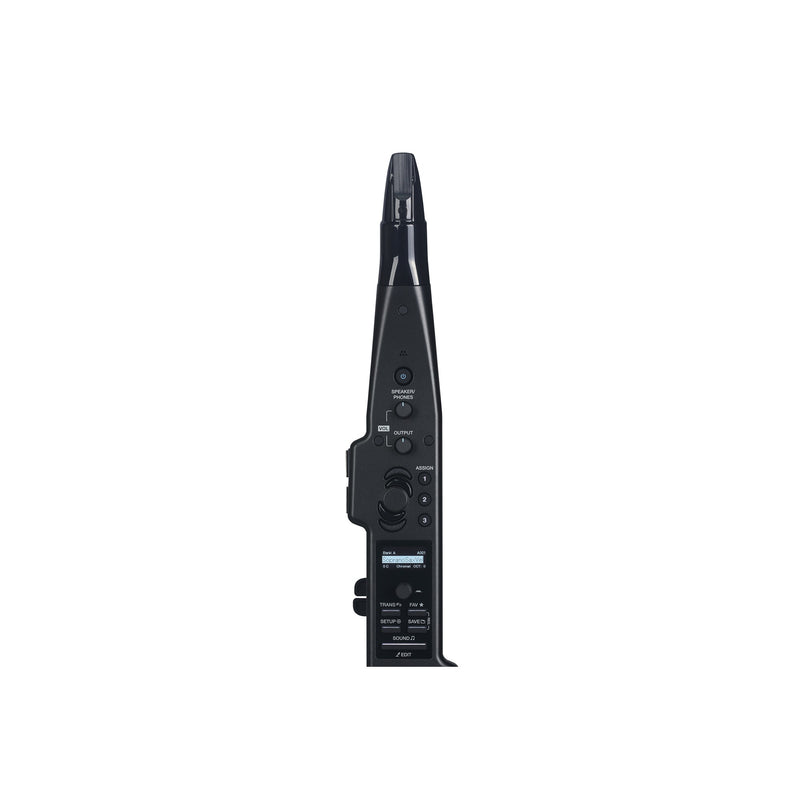

ASM designed Diosynth as a fully expressive instrument for wind players who expect the tactile feel of a true acoustic setup. The mechanical keybed recreates the response of real saxophone and wind-instrument keys, so it avoids the shallow, flat button layouts found on most wind controllers. Multiple fingering modes, scale and key-locking options, a nine-octave range and extensive transposition controls give players the freedom to handle complex passages with precision. The breath force sensor responds to micro-dynamics, the reed bite sensor shapes timbre in real time and the integrated gyro tracks physical movement to open up motion-driven modulation. Two pressure-sensitive touchpads, three programmable switches and a smooth X/Y joystick allow intricate performance routing that suits both traditional phrasing and experimental sound design.
Hydrasynth Power with a New Sample Oscillator
Diosynth expands the Hydrasynth architecture with a dedicated sample playback oscillator, enabling the blending of wavescan synthesis and high-quality sampling. ASM captured 128 distinctive reed, brass, fipple, string and rare world instruments, including contrabass flute, Eb Tubax and Peruvian llama whistle. With 219 synthesiser waveforms, 768 patch locations and 384 factory sounds, players can switch from authentic acoustic articulation to layered hybrid patches that combine up to four Hydrasynth oscillators and two sample voices. The 16-mode filter provides detailed tone shaping, while dual insert effects per part and extensive master send effects supply everything from reverbs, delays and rotary processing to overdrive, EQ, compression, phasing and tempo-synced modulation.
Flexible Connectivity and Gig-Ready Design

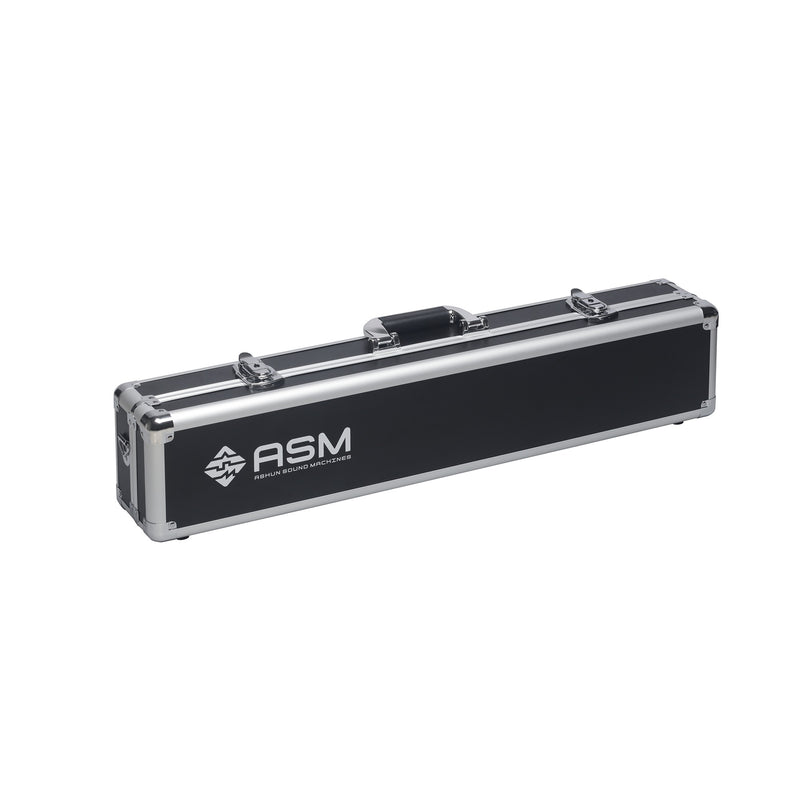

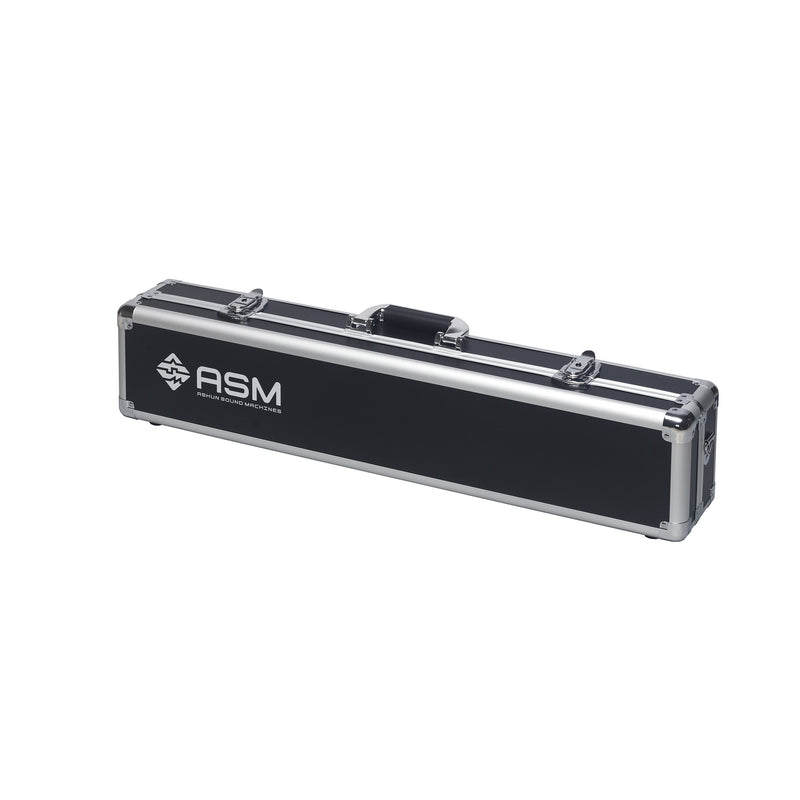

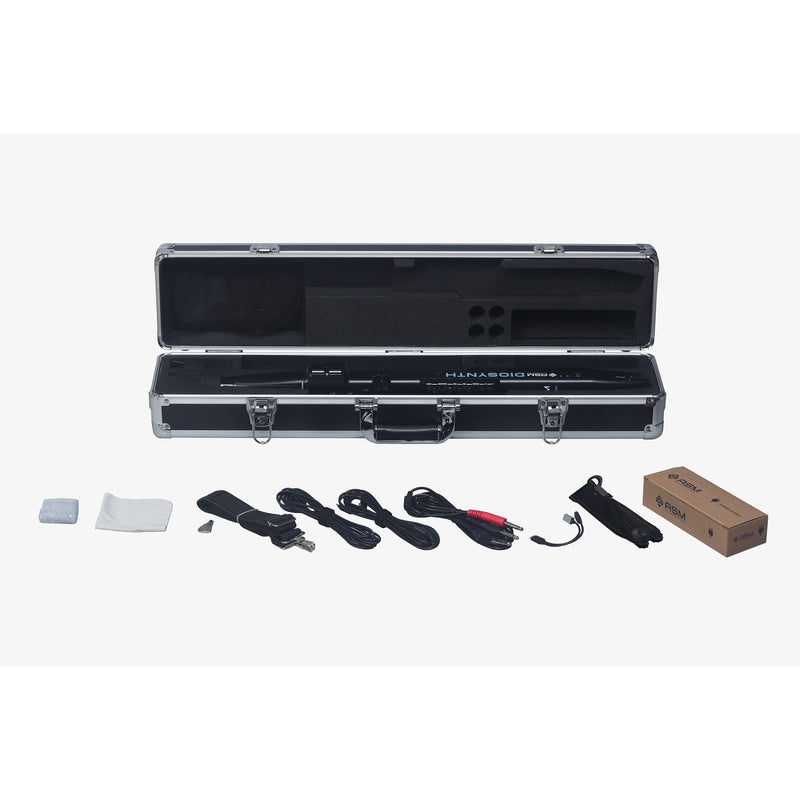

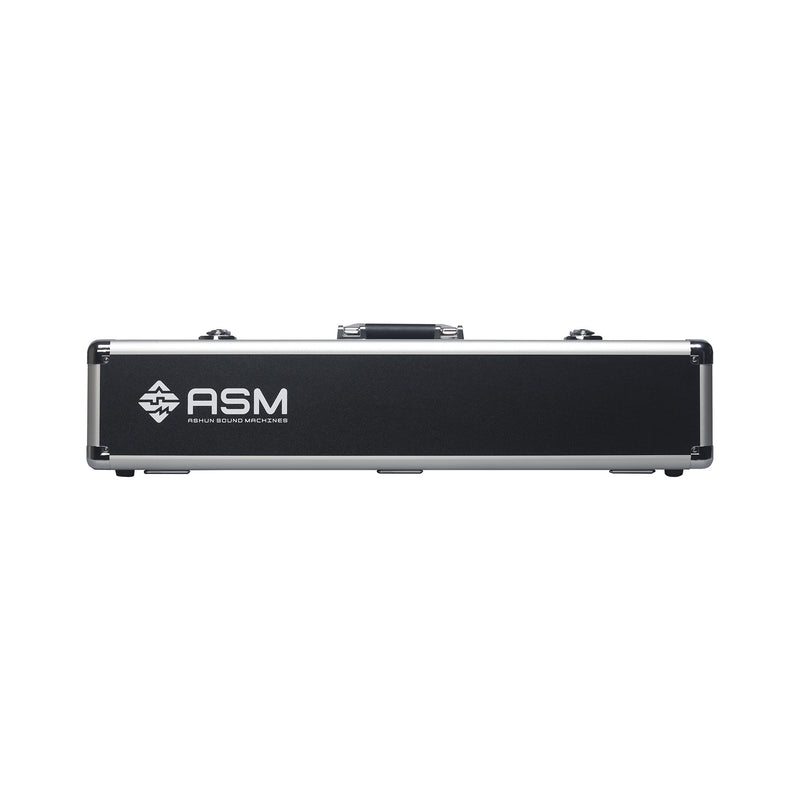

Diosynth offers professional connectivity with quarter-inch line out for mono or stereo operation, a dedicated headphone output with its own volume control, MIDI DIN in and out, USB MIDI and audio, and Bluetooth MIDI for wireless control. Bluetooth audio input allows players to practise with streamed music, and the built-in 2-watt speaker provides immediate monitoring without external gear. Diosynth runs on USB-C power or two 18650 lithium batteries for portable use. Its editor software for Mac, PC, iOS and Android streamlines patch editing, performance mapping and system configuration. Each unit arrives performance-ready with a hard case, stand, mouthpieces, neck strap, universal power supply and all required cables.
Why Choose the ASM Diosynth
- It delivers authentic wind-instrument feel with mechanical keys that suit experienced players
- It offers expressive performance control through breath, bite, gyro and touch sensors
- It blends Hydrasynth synthesis with a dedicated sample engine for truly hybrid sound design
- It gives access to rare instruments and detailed articulations not found in other wind synths
- It supports studio, stage and mobile use through extensive I/O, Bluetooth and battery operation
- It includes a professional editor and arrives with a full accessory set for immediate use
- Hydrasynth-based engine with new sample playback oscillator
- Mechanical wind-instrument keybed with multiple fingering modes
- Breath force sensor, reed bite sensor and integrated gyro
- X/Y joystick, two pressure pads and three programmable switches
- Nine-octave range with four octave keys and full transposition controls
- 128 sampled instruments including rare reeds, brass and world instruments
- 219 synthesizer waveforms and 384 factory patches
- 768 total patch locations plus 128 favourites
- Dual-part architecture with insert effects and EQ on each part
- Wide suite of master send effects including delays, reverbs, modulation and distortion
- Quarter-inch line output for mono or stereo operation
- Headphone output with independent volume
- MIDI DIN in and out, USB MIDI and audio, Bluetooth MIDI
- Bluetooth audio input and built-in 2-watt speaker
- Powered by USB-C or two 18650 rechargeable batteries
- Mac, PC, iOS and Android editor support
- Hard-shell case and full accessory set included
- UK over £99 FREE
- UK under £99 £10
- EU £36
- Rest of World £80
Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.
We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock.
This item, like everything we supply, comes with the complete support of our expert team. Our excellent technicians have been specifying, building and supporting studios for over twenty years. If you have any problems with installation, setup or everyday use, they’re never more than a click away, and always happy to help.
You can contact them here.
KEY BENEFITS
Expressive Performance Control
Utilize advanced sensors for breath, bite, and motion to achieve intricate modulation and dynamic expression, perfect for both traditional and experimental music styles.
Hybrid Sound Design Capabilities
Blend Hydrasynth synthesis with a dedicated sample playback engine, accessing a vast library of unique instruments and detailed articulations for unparalleled creative possibilities.
