Precision Monitoring Confidence
The ATC SCM100ASL Pro provides precise detailing for critical monitoring, ensuring instant recognition of mix anomalies for adjustments, essential for professional audio production.

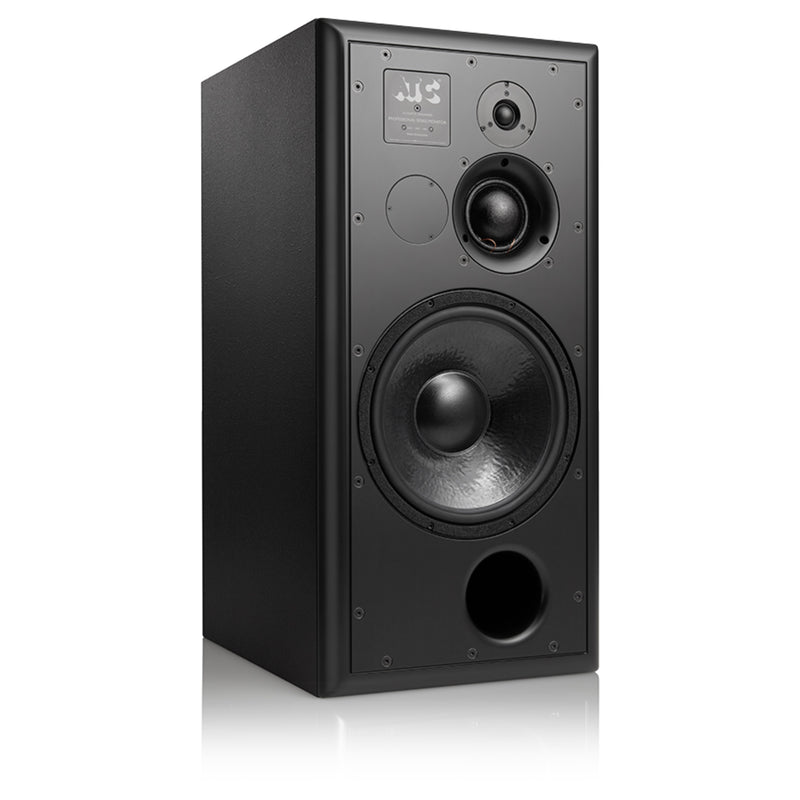

The ATC SCM100ASL Pro is a free-standing 3-way active reference monitor designed to operate in large rooms.
Critical monitoring relies on a speaker like the ATC SCM100ASL Pro to ensure that what you hear is what you get - when you get home and listen to it. ATC pride themselves on the precise detailing available in their monitors so that you know instantly if something is sitting incorrectly in the mix.
Capable of operating accurately at high spl levels for extended periods, the SCM100ASL Pro from ATC does it without colouration and fatiguing the listener's ears. Using the ATC Super Dome soft-dome mids reproduces transients with precision so you can monitor in complete confidence.
The SCM100ASL Pro is powered by a 350W 3 way Mosfet power amp.
The Acoustic Transducer Company started in the mid-70s producing drivers for the top touring bands like the Pink Floyd, before developing its respected reference monitors such as the ATC SCM100ASL Pro. The decades of experience are what gives you the confidence to trust your session to ATC.
Technical Specifications:
- Drivers: HF 25mm, Mid 75mm, LF 314mm
- Amplitude Linearity (±2dB): 65Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
- Horizontal Dispersion: ±80°, Coherent
- Vertical Dispersion: ±10°, Coherent
- Max. Continuous SPL (1 metre): 115dB
- Crossover Frequencies: 380Hz, 3.5kHz
- Input Connectors: Male XLR
- Input Sensitivity: 1V
- Input Sensitivity Trim: ±6dB
- Input Impedance: Balanced > 10kΩ
- Amplifier Output: Bass 200W, Mid 100W, High 50W
- Filters: Even Order Critically Damped
- Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
- Front Panel Indicators: Power On indicator, Gain Reduction warning
- LF EQ: +6dB @ 40Hz
- Dimensions (HxWxD): 832 x 398 x 581mm (32.8Àù x 15.7Àù x 22.9Àù) Depth with amplifier at rear adds 3Àù
- Weight: 65kg / 143lbs (Stands not included)
ATC SCM100ASL Pro Overview:

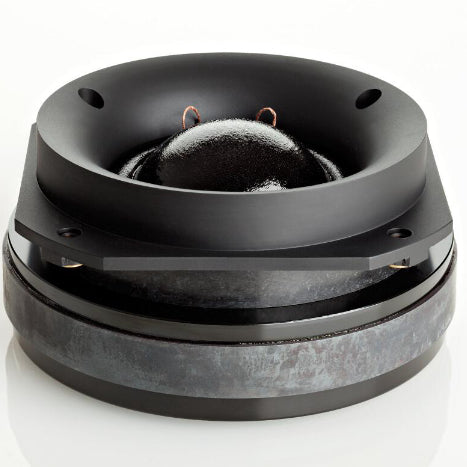

- 25mm soft dome tweeter

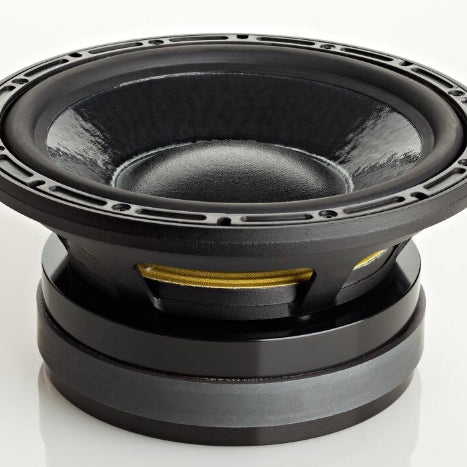

- Full “SL” spec 12Àù/314mm bass driver
- ATC 3″/75mm “Super Dome” mid driver
- On board grounded source 350W Tri-amp pack
- LF contour control
- Clip indication
- 6 year warranty
- Made in UK
- UK over £99 FREE
- UK under £99 £10
- EU £36
- Rest of World £80
Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.
We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock from £48.
At KMR, we provide exceptional support for all your audio studio requirements. Our committed team is ready to help you with setup, troubleshooting, and optimizing your gear for peak performance.
If you face any challenges, our customer service team is just a phone call away, prepared to offer expert assistance.
KEY FEATURES
High Endurance Sound Clarity
Designed to operate reliably at high sound pressure levels over prolonged periods, the SCM100ASL Pro delivers consistent, non-fatiguing sound without any colouration, ideal for long mixing sessions.
Expertly Crafted by Experience
With decades of experience in crafting superior sound systems, ATC’s heritage includes providing equipment for major bands, ensuring that the SCM100ASL Pro is built on a foundation of tried-and-tested audio excellence.
