ATC SCM25A Pro mkII (Pair)

ATC SCM25A Pro mkII (Pair)

3 Way Active Professional Monitoring

CAP2: 0 £8,749.00
£7,290.83 ex VAT
in stock

Compact 3-way active ported studio reference monitor with a 6.5"/164mm bass driver loaded in a 25-litre vented cabinet and an integrated 235W amplifier, well suited for smaller to medium studios., 3-way Compact Active ported Studio Monitor by ATC

ATC SCM25A Pro mkII (Pair)

3 Way Active Professional Monitoring

CAP2: 0 £8,749.00
£7,290.83 ex VAT
in stock
Visa MasterCard American Express Discover Diners Club Maestro UnionPay Shop Pay Apple Pay Google Pay

Compact 3-way active ported studio reference monitor with a 6.5"/164mm bass driver loaded in a 25-litre vented cabinet and an integrated 235W amplifier, well suited for smaller to medium studios., 3-way Compact Active ported Studio Monitor by ATC

Novuna Logo

Spread the cost of your purchase over 12-48 Months

AT A GLANCE

  • New SH25-76S Dual-Suspension Tweeter
  • Wide dispersion vs frequency for excellent stereo imaging over a large listening area.
  • ATC discrete MOSFET class A/B amp-pack delivers high dynamic range.
  • Input sensitivity and bass ‘lift’ user controls.
  • 4th order active crossovers with all-pass phase compensation ensure outstanding driver integration.
  • ATC hand built 3˝/75mm soft dome, mid driver
  • ATC hand built 7˝/175mm carbon-paper cone bass driver
  • Compact size with high output and low cut-off frequency with 6-year warranty
  • KMR Audio - ATC SCM25A Pro mkII (Pair)
    KMR Audio - ATC SCM25A Pro mkII (Pair)

    Compact 3-way active ported studio reference monitor with a 6.5"/164mm bass driver loaded in a 25-litre vented cabinet and an integrated 235W amplifier, well suited for smaller to medium studios., 3-way Compact Active ported Studio Monitor by ATC

    ATC SCM25A Pro MkII

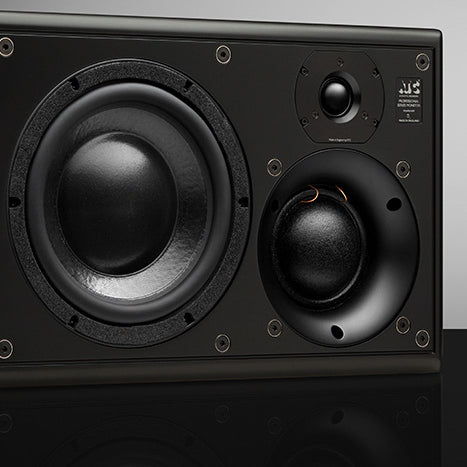

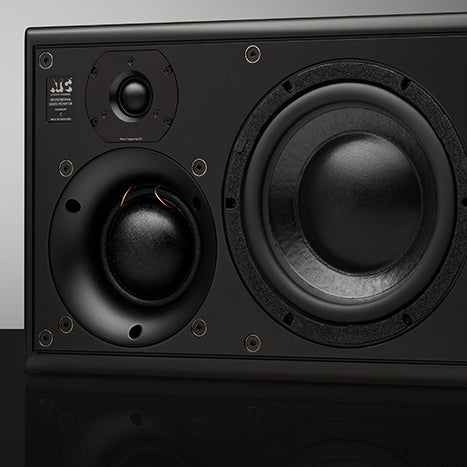

    The ATC SCM25A Pro MkII is a compact 3-way active ported studio reference monitor with a 6.5"/164mm bass driver loaded in a 25-litre vented cabinet and an integrated 235W amplifier, well suited for smaller to medium studios.

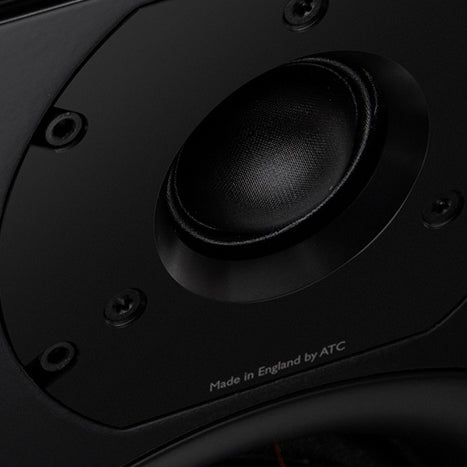

    The 3-way design features the ATC SM75-150 Soft Dome mid-range driver  (3"/75mm) which handles mid frequencies between 380Hz and 3.5kHz.

    The ATC SCM25A Pro MkII has all ATC-designed and produced proprietary drive units. A 6.5"/164mm bass speaker handles low frequencies below 380Hz.

    Updated Tweeter Design

    In addition, the new ATC SCM25A Pro MKII has ATC's SH25-76S Dual-Suspension 1"/25mm soft dome tweeter which handles high frequencies exceeding 3.5kHz. This HF driver upgrade is the crucial difference between the Mk1 and Mk2 models. The update with ATC’s latest SH25-76S ‘Dual Suspension’ tweeter, extends the high-frequency response also providing a reduction in distortion.

    The enclosure is a ported/vented design tuned to 32Hz and has a 3"/75mm diameter port with flared entrance and exit to reduce port air noise.

    Class A/B Amp

    A 3-way class A/B amp pack installed in the back of the cabinet actively drives the SCM25A Pro Mk2. Each driving unit is equipped with its power amplifier. The audio input is a 3-pin female XLR on the back panel, and the power is an IEC mains power inlet. The user may adjust input sensitivity and bass' boost'. Crossovers are 4th order Linkwitz-Riley with all-pass filters to improve tone accuracy, imaging, and on and off-axis frequency response. To reduce amplifier' hard-clipping,' FET peak limiters are added. A front-panel-mounted bi-colour LED indicates that the power and limiter are functioning.

    Hand built in the UK with a 6-year warranty




    ATC SCM25A Pro MK2 Technical Specifications:

    • Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot.
    • Input Impedance: 20kŒ© (differential).
    • Input CMRR: >82dB (10kHz).
    • Input Sensitivity: 2.2dBu / 1Vrms for full power
    • Input Sensitivity Control: Continuously Variable from 2.2dBu ‚Äì 8.2dBu / 1Vrms - 2Vrms (-6dB)
    • Bass Boost Control: Continuously variable from 0dB to +3dB.
    • Crossover Filters: 4th Order Linkwitz-Riley at 380Hz and 3.5kHz.
    • Frequency Response: <2Hz to >200kHz (-3dB).
    • Amplifier type: Grounded Source MOSFET based Class A/B, convection cooled.
    • Output Power: Bass 150W (8Œ©), Mid 60W (8Œ©), HF 32W (6Œ©)
    • THD+N: <0.003%/-92dB (1kHz, 1dB below rated power, 90kHz BW)
    • Limiter: ATC Active FET Momentary Gain Reduction, limiter 'active' indicated via front panel LED.
    • Mains Input: 220-230V or 115V ‚Äì Factory set. Please observe panel markings and labels!
    • Power Consumption: Idle 24W/35VA. 1/8th Power 117W/159VA. Full Power 255W/324VA.
    • Heat Output: Idle 82BTU/hr. 1/8th power 335 BTU/hr. Full Power 358BTU/hr.

    Please note we cannot ship ATC speakers outside of the UK.

    More From

    Logo

    At a glance

  • New SH25-76S Dual-Suspension Tweeter
  • Wide dispersion vs frequency for excellent stereo imaging over a large listening area.
  • ATC discrete MOSFET class A/B amp-pack delivers high dynamic range.
  • Input sensitivity and bass ‘lift’ user controls.
  • 4th order active crossovers with all-pass phase compensation ensure outstanding driver integration.
  • ATC hand built 3˝/75mm soft dome, mid driver
  • ATC hand built 7˝/175mm carbon-paper cone bass driver
  • Compact size with high output and low cut-off frequency with 6-year warranty
