ATC SCM50A SL Pro (Pair)

3-Way Active Professional Reference Monitor

CAP2: 0 £14,049.00
£11,707.50 ex VAT
Call or email for availability.

3-way active 230mm (9") bass driver / 75mm (3") soft dome mid range / 25mm (1") tweeter For studio reference monitoring in mid-sized rooms H 716mm / W 351mm / D 480mm

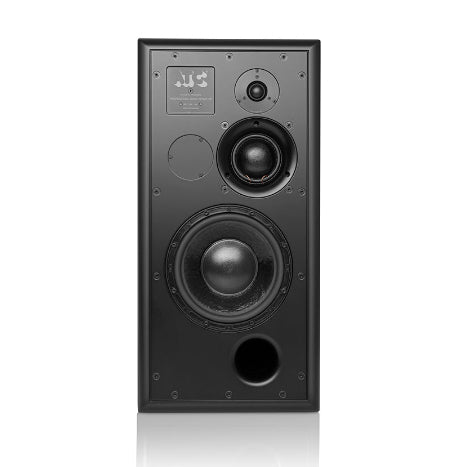

The ATC SCM50ASL Pro is a freestanding, ported, 3-way professional reference monitor with integral 350W amplifier, particularly suited for mid-sized rooms.

Inside the ported cab of the ATC SCM50ASL Pro is the full-spec 9" ATC SL bass driver, a 75mm Super Dome mid and a 25mm soft-dome tweeter, capable of delivering the extended bass, definitive mids and sparkling tops that you need to hear.

The speakers are powered by an internal 350W tri-amp feeding 200W to the bass, 100W to the mids and 50W to the high end. The sound of the SCM50ASL Pro is precise and clear, with good dispersal - and with the great definition and pinpoint-imaging of the slightest detail, that is something of an ATC trademark.

All products from ATC share the same company philosophy - if only the best is good enough, then only the best will do.

Technical Specifications:

  • Drivers: HF 25mm, Mid 75mm, LF 234mm
  • Amplitude Linearity (±2dB): 70Hz-17kHz
  • Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz
  • Horizontal Dispersion: ±80°, Coherent
  • Vertical Dispersion: ±10°, Coherent
  • Max. Continuous SPL (1 metre): 112dB
  • Crossover Frequencies: 380Hz, 3.5kHz
  • Input Connectors: Male XLR
  • Input Sensitivity: 1V
  • Input Sensitivity Trim: ±6dB
  • Input Impedance: Balanced > 10kΩ
  • Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
  • Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
  • Front Panel Indicators: Power On indicator, Gain Reduction warning
  • LF EQ: +6dB @ 40Hz
  • Dimensions (HxWxD): 716 x 351 x 400mm (28.2Àù x 13.8Àù x 18.8Àù) Depth with amplifier at rear adds 3Àù
  • Weight: 49kg / 107.8lbs

ATC SCM50ASL Pro Overview:

  • 25mm soft dome tweeter
  • Full “SL” spec 9Àù/234mm bass driver
  • ATC 75mm “Super Dome” mid driver
  • On board grounded source 350W Tri-amp pack
  • LF contour control
  • Clip indication
  • 6 year warranty
  • Made in UK



Please note, we are not able to ship ATC speakers outside of the UK
