Bettermaker PEQ_core

The Bettermaker Passive Equalizer is a stereo and dual mono mastering equaliser that combines a 100% analogue passive EQ signal path with advanced digital control, DAW automation, instant recall, snapshot management, and precise stereo linking, delivering the musical character of classic passive equalisation alongside modern workflow enhancements in a compact 1U format.

Classic Passive Equalisation with Modern Digital Control

The Bettermaker Passive Equalizer builds upon the renowned passive equaliser designs that engineers value for their smooth, musical tonal shaping. It retains a fully analogue audio signal path while integrating comprehensive digital control through a dedicated plugin. This approach delivers the sonic benefits of classic passive equalisation while providing the speed, accuracy, and convenience required in modern mastering, mixing, and production environments.

The new 1U chassis design makes the unit ideal for multi-bus processing systems, allowing multiple units to fit efficiently into professional studio racks without sacrificing functionality or accessibility.

Fully Analogue Signal Path

The audio signal remains entirely analogue throughout the processing chain. The equaliser handles audio with exceptional transparency, low distortion, and wide bandwidth, preserving source integrity while allowing significant tonal shaping. The unit achieves a frequency response from 7 Hz to 30 kHz and maintains frequency flatness within ±0.2 dB across the audible spectrum.

High headroom supports demanding professional workflows, with a maximum input level of +24 dBu and a maximum output level of +27 dBu. Low THD and noise figures ensure clean, accurate processing suitable for mastering applications.

Extended Passive EQ Circuitry

The equalisation section offers the broad, musical curves associated with passive EQ designs while extending functionality beyond traditional implementations.

The low-frequency section provides selectable boost and cut frequencies at 20, 30, 60, and 100 Hz. Engineers can apply up to 15 dB of boost and 16 dB of cut for precise low-end enhancement, tightening, or weight adjustment.

The high-frequency boost section extends beyond conventional passive equaliser designs by including dedicated air bands at 20 kHz and 28 kHz. These additional frequencies allow engineers to introduce openness, detail, and spaciousness without introducing harshness. Additional boost frequencies include 3, 4, 5, 6, 8, 10, 12, and 16 kHz.

The high-frequency attenuation section offers selectable frequencies at 5, 10, and 20 kHz, enabling controlled top-end shaping and smoothing when required.

Dedicated Plugin Integration

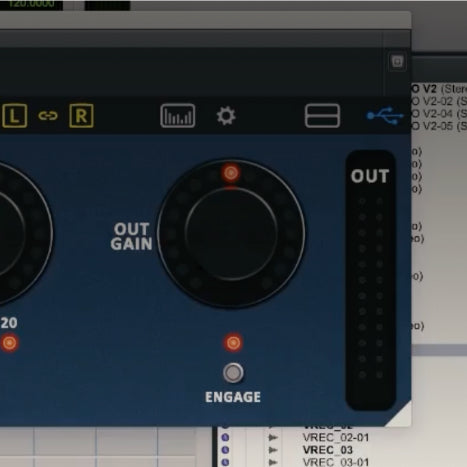

A newly developed plugin provides complete control over all hardware parameters directly from the DAW. Engineers can adjust settings remotely, automate parameters, save sessions, and instantly recall previous configurations.

The plugin includes dedicated input and output metering for accurate level monitoring during operation. Fast snapshot functionality enables rapid comparison between settings and accelerates workflow during mastering and mix evaluation.

Because the hardware stores and recalls settings digitally, users can move between projects without manually documenting or recreating complex equaliser configurations.

Advanced Monitoring and Audition Features

The band audition function allows engineers to isolate and monitor individual frequency bands while making adjustments. This feature speeds up decision-making and improves accuracy when targeting specific frequency ranges.

The plugin also adds mastering-grade high-pass and low-pass digital filters, providing additional corrective and finishing tools without altering the analogue EQ circuitry itself.

Stereo and Dual Mono Flexibility

The unit supports both stereo and dual mono operation. In stereo mode, digitally controlled parameter linking ensures precise channel matching and consistent imaging across the stereo field. A single control adjusts both channels simultaneously, improving efficiency and maintaining accuracy.

Dual mono mode enables independent processing of left and right channels, offering greater flexibility for corrective work, stereo enhancement, and creative processing applications.

Precision Output Level Control

An adjustable output gain stage provides ±8 dB of level control with extremely fine 0.1 dB resolution. This allows precise level matching during critical comparisons and mastering workflows, ensuring objective evaluation of EQ decisions.

Connectivity and Workflow Integration

USB connectivity enables seamless integration with both Mac and PC systems. Complete DAW automation support allows every available parameter to respond to automation data, making the unit suitable for dynamic processing applications and complex production environments.

Instant recall, repeatable adjustments, comprehensive automation, and rapid snapshot management transform a traditionally analogue process into a highly efficient modern workflow without compromising sonic quality.

Why Choose the Bettermaker Passive Equalizer

• Combine the musical sound of classic passive equalisation with complete DAW integration and automation.

• Recall complex mastering settings instantly without manual documentation.

• Add smooth low-end weight, detailed midrange shaping, and extended high-frequency air with exceptional precision.

• Maintain a fully analogue signal path while benefiting from digital workflow enhancements.

• Achieve perfectly matched stereo processing through precise digital parameter control.

• Work faster with plugin-based control, metering, snapshots, and instant session recall.

• Integrate easily into modern mastering, mixing, and multi-bus processing systems thanks to the compact 1U design.

• Make accurate EQ decisions using the band audition function and integrated metering tools.

• Stereo and dual mono operation
• 100% analogue audio signal path
• Compact 1U rackmount design
• Extended high-frequency boost section with 20 kHz and 28 kHz air bands
• Low-frequency boost and cut frequencies at 20, 30, 60 and 100 Hz
• High-frequency boost frequencies from 3 kHz to 28 kHz
• High-frequency attenuation frequencies at 5, 10 and 20 kHz
• Up to 15 dB low-frequency boost
• Up to 16 dB low-frequency cut
• Up to 18 dB high-frequency boost
• Adjustable output gain ±8 dB
• 0.1 dB output gain resolution
• Dedicated plugin for complete hardware control
• Input and output metering within the plugin
• Band audition function for precise frequency adjustment
• Mastering-grade high-pass digital filters available from the plugin
• Mastering-grade low-pass digital filters available from the plugin
• Complete DAW automation of all parameters
• Instant parameter recall
• Fast snapshot management
• Precise stereo linking
• Independent dual mono channel processing
• USB connectivity for Mac and PC
• Maximum input level of +24 dBu
• Maximum output level of +27 dBu
• Frequency response from 7 Hz to 30 kHz
• Frequency flatness of ±0.2 dB
• Dynamic range of 101 dB
• THD+N of 0.009%
• Crosstalk greater than 88 dB
• CMRR greater than 70 dB
