High-Quality AD/DA Conversion
Experience pristine audio quality with the Cranborne Audio 500ADAT, featuring a 121dB signal-to-noise ratio and ultra-low jitter under 0.5 picoseconds, ensuring detailed and artifact-free recordings.
The Cranborne Audio 500ADAT is a highly innovative analogue / digital hybrid ADAT expander and summing mixer with high-performance AD/DA conversion and zero-latency artist mixer.
8 x 500 slots

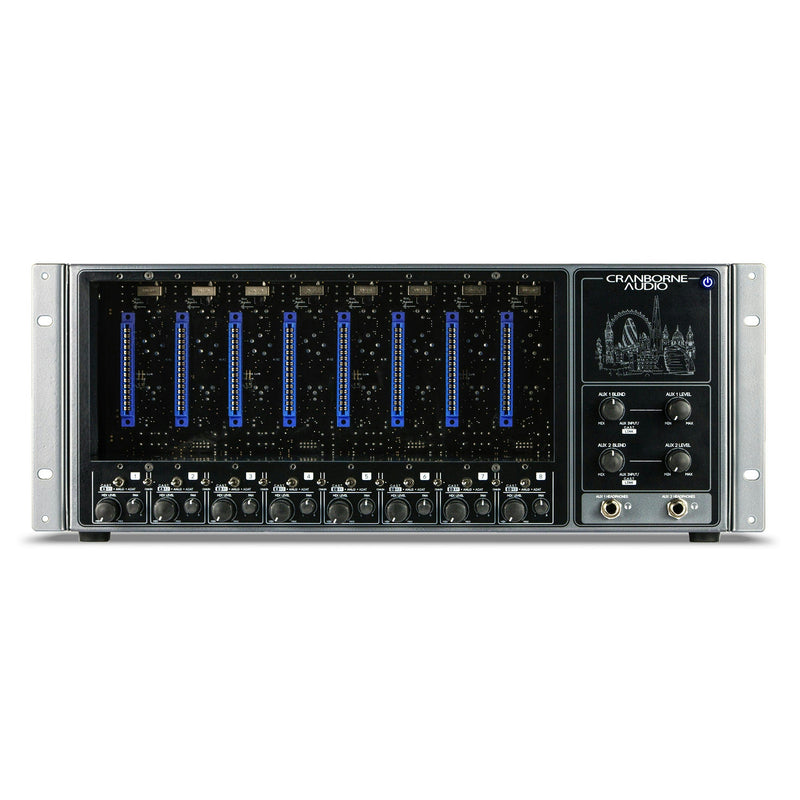

The Cranborne Audio 500ADAT includes eight 500 series slots to accommodate up to eight 500 series mic preamps, allowing you to create your ideal front-end and integrate it instantly into your Digital Audio Workstation. Alternatively, you can create your ideal channel strip by adding EQ and compressor modules and commit the recordings directly to your system.
The 500 series integration also works the other way around, allowing you to route your recorded tracks back to 500 series EQ and compressors for mixing and print the processed signal back. It also includes an eight-to-two high headroom analogue summing mixer letting you sum your instrument stems and print to a stereo track.
ADAT integration
With its 8in/8out ADAT interface, the Cranborne Audio 500ADAT integrates perfectly with any ADAT-ready audio interface and converters. Using reference-class analogue-to-digital conversion with an impressive 121dB signal-to-noise ratio and master-grade digital clock with ultra-low jitter (<0.5 picoseconds). Capture your analogue recording with the utmost detail, free from unwanted digital artefacts.
A zero-latency artist mixer lets you the dedicated high-headroom analogue summing mixer giving you all-analogue artist mixes with none of the latency issues created by virtual mixers. Each of the headphone outputs includes a blend and output level controls.
Furthremore, the Cranborne Audio 500ADAT is equipped with four CAST (Cat5 Analogue Snake Transport) which lets you transport four channels of analogue over a single cable. It uses clever impedance matching ensuring high-quality audio at a fraction of the price of an audio cable. Use CAST connectors to additional breakout boxes.
- Dynamic Range: 121dB A-weighted, AES17 method, 20Hz - 20kHz
- Frequency Response: -1dB, 2.2Hz to >80kHz
- THD+N: <0.00032% (-110dB) @ -4dBFS, 20Hz - 40kHz, 1kHz, A-weighted
-
Clock Jitter:
<0.5 Picoseconds
- 8-slot 500 series chassis with digital conversion and ADAT
- ADAT, SMUX II/IV Expander
- Discrete Summing Mixer
- Zero-Latency Artist Mixer
- High-Powered Headphone Amps
USER MANUAL
Informational guide on how to use
Informational guide on how to use
QUICK START
Getting started quickly and efficiently
Getting started quickly and efficiently
- UK over £99 FREE
- Same Day (M25) £48 stock dependent
- UK under £99 £10
- EU £36
- Rest of World £80
Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.
We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock.
At KMR, we provide exceptional support for all your audio studio requirements. Our committed team is ready to help you with setup, troubleshooting, and optimizing your gear for peak performance.
If you face any challenges, our customer service team is just a phone call away, prepared to offer expert assistance.
KEY FEATURES
Flexible 500 Series Integration
Customize your audio setup by inserting up to eight 500 series modules, allowing for seamless integration with your DAW for recording and mixing, or route back for further processing.
Zero-Latency Mixing
The zero-latency artist mixer provides real-time audio mixing without delay, utilizing high-headroom analogue summing, ideal for live performance monitoring and studio sessions.
PRODUCT VIDEOS
“It sounds just as crisp and clean as the impressive specs suggest it should”
