Drawmer 1979 - Channel Strip

The Drawmer 1979 is a 1U analogue channel strip that combines a transparent multi-input preamplifier, Lift dynamic gain module, fully variable three-band parametric equaliser, and soft-knee FET compressor with switchable processing order and true bypass for detailed tone shaping and controlled dynamics.

Overview

Drawmer integrates the character of its classic analogue designs with modern refinements, creating a channel strip that delivers detailed capture, real-time dynamic enhancement, musical equalisation, and warm compression in a compact rackmount format. The 1979 keeps the workflow fast and tactile while providing technical flexibility for high-end recording, tracking, and tone crafting.

Preamplifier

The preamplifier offers mic, line, and instrument DI inputs with up to 66 dB of stepped gain, ensuring controlled gain staging and a clean signal path. Engineers adjust input impedance to match every microphone and optimise its tonal response, whether they work with ribbons, dynamics, or condensers. This stage provides transparent amplification, restores life to dull sources, and supports direct instrument connection without noise.

Lift Module

Lift, first developed for the Drawmer 1972, enhances low-level detail by raising signals that fall below 0 dB while leaving higher-level audio untouched. Engineers achieve natural loudness reduction without traditional compression artefacts because Lift reacts in real time with smooth, musical behaviour. It improves clarity in vocals, fingerpicked acoustic instruments, pianos, or ambient recordings and introduces no distortion or additional noise.

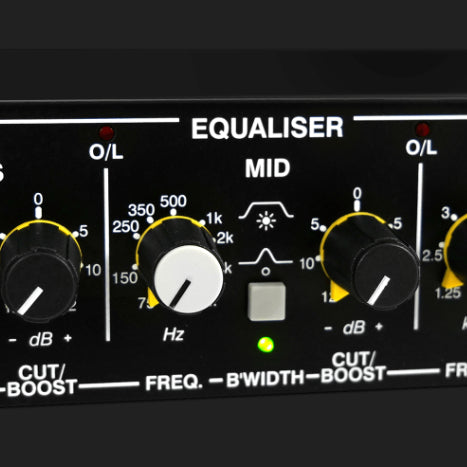

Three-Band Parametric Equaliser

The fully variable three-band parametric equaliser provides ±12 dB of cut or boost with a switchable bandwidth control on the mid band. Engineers sculpt tone with precision, apply broad shaping for warmth or presence, or correct problematic resonances during tracking. The EQ responds smoothly, maintains musicality even with large adjustments, and works effectively before or after the compressor depending on the chosen signal path.

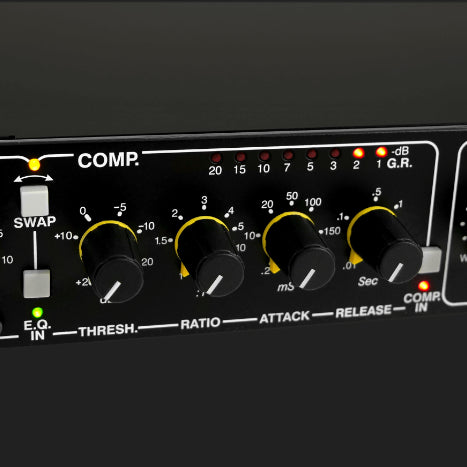

FET Compressor

The soft-knee FET compressor brings the warm, musical behaviour associated with vintage Drawmer dynamics. It manages vocals with gentle levelling, adds mix cohesion when engineers use it more subtly, or produces assertive punch for drums, bass, and synthesizers. Its soft-knee response ensures natural gain reduction even at more extreme settings.

Output Stage

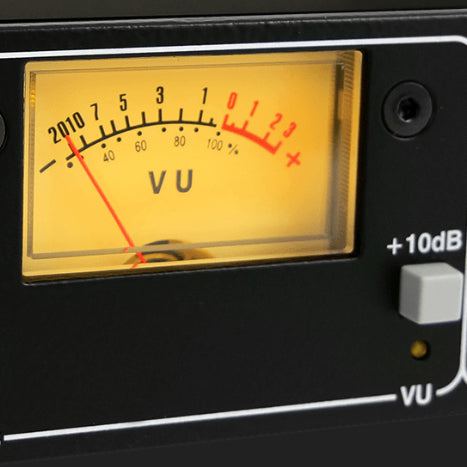

The final output section includes a wet/dry blend for parallel processing, enabling engineers to mix compressed or EQ-shaped tone with the dry signal for refined control. Output gain allows precise level matching into any interface or recording chain. A large illuminated VU meter displays level clearly, while a global bypass returns the signal to a direct preamplifier output for the cleanest possible path. The user chooses the compressor-EQ processing order to suit the programme material and workflow.

Why Choose the Drawmer 1979?

• Provides a complete analogue channel strip that improves recording speed and decision making

• Preserves detail and clarity even when shaping tone or applying dynamics

• Works with any microphone or instrument and adapts easily to different sources

• Enhances subtle nuances without introducing artefacts or colouration

• Offers creative flexibility through switchable EQ/compression order and parallel processing

• Delivers vintage warmth with modern precision and reliability

• Integrates seamlessly into professional recording, mixing, and production environments

• 1U analogue channel strip combining preamp, Lift, EQ, and FET compression
• Mic, line, and instrument DI inputs with up to 66 dB stepped gain
• Switchable impedance to optimise microphone performance
• Lift module that boosts low-level detail without affecting louder signals
• Three-band parametric EQ with ±12 dB boost/cut and switchable mid-band bandwidth
• Soft-knee FET compressor for warm, musical gain control
• Switchable EQ and compressor order in the signal path
• Independent bypass for EQ and compressor sections
• Wet/dry parallel mix control
• Output gain for precise level matching
• Large backlit VU meter for clear level monitoring
• Direct ultra-clean preamp output through global bypass
