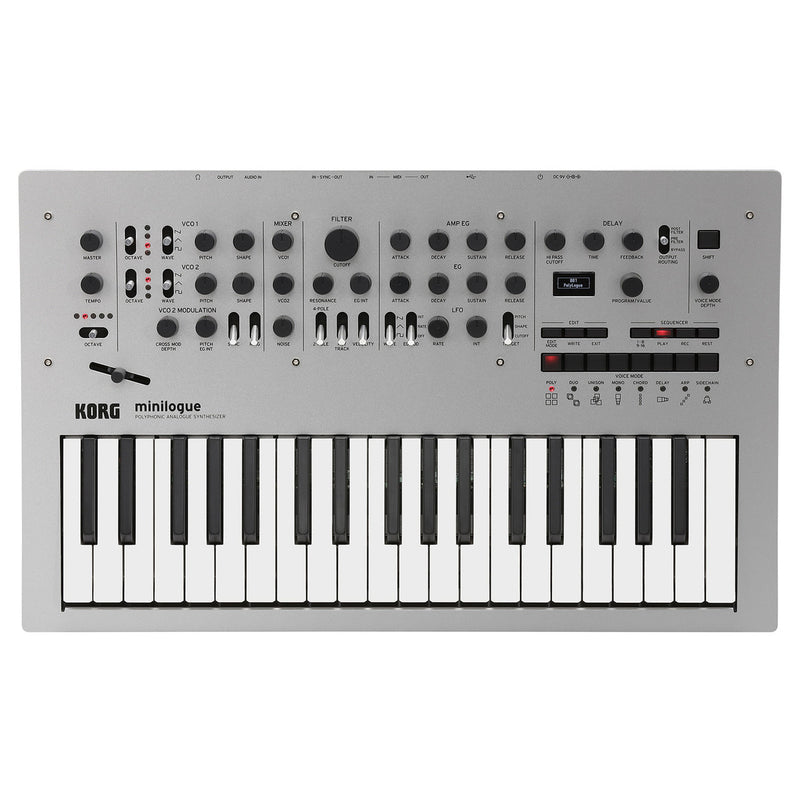

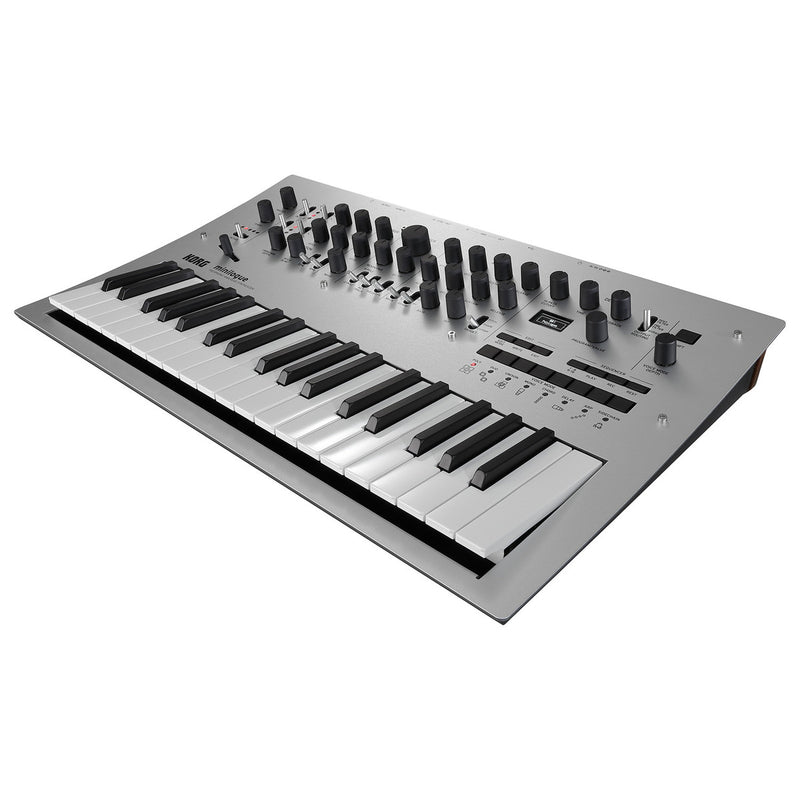

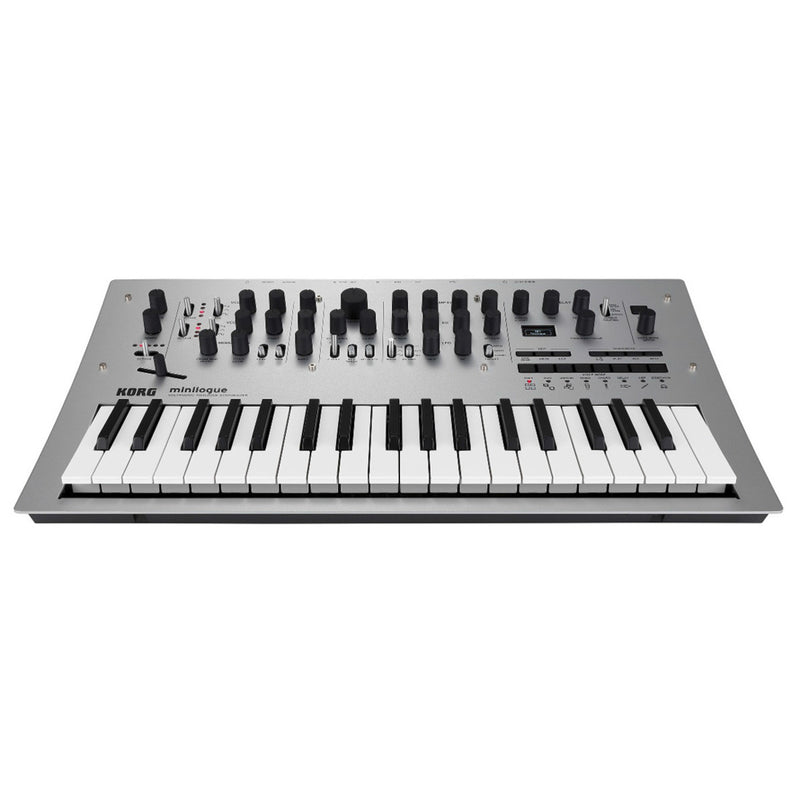

Korg Minilogue - Polyphonic Analogue Synthesizer

The Korg Minilogue Polyphonic Analogue Synthesizer is a four-voice programmable analogue synthesiser with a 37-key velocity-sensitive keyboard, 200 program memories, 16-step polyphonic sequencer, and a built-in OLED oscilloscope display for real-time waveform monitoring.

Versatile Sound Design

The Minilogue features four-voice polyphony with eight selectable voice modes, ranging from polyphonic chord playing to unison, duo, mono with sub-oscillator, chord generation, delayed voice triggering, arpeggiator, and sidechain-style dynamics. Each voice mode alters how the four analogue voices behave, providing a wide palette of tonal and structural possibilities for both studio and live performance.

Programmable Power with Presets

The synthesiser includes 200 program slots, with 100 professional presets ready for use and 100 blank slots for user patches. Each stored program saves voice mode and sequence data, enabling quick recall of sounds. Up to eight favourites can be registered for immediate access during live sets or studio sessions.

Integrated Sequencer

A 16-step polyphonic sequencer with motion sequencing allows automation of up to four parameters, enabling evolving patterns and dynamic textures. Real-time recording with overdubbing is supported alongside step input for constructing complex sequences with precision.

Oscilloscope Display

The OLED oscilloscope provides visual feedback by displaying the waveform as it is shaped, offering a unique interface for sound design. This feature enhances both creative exploration and technical accuracy in sculpting tones.

Connectivity and Synchronisation

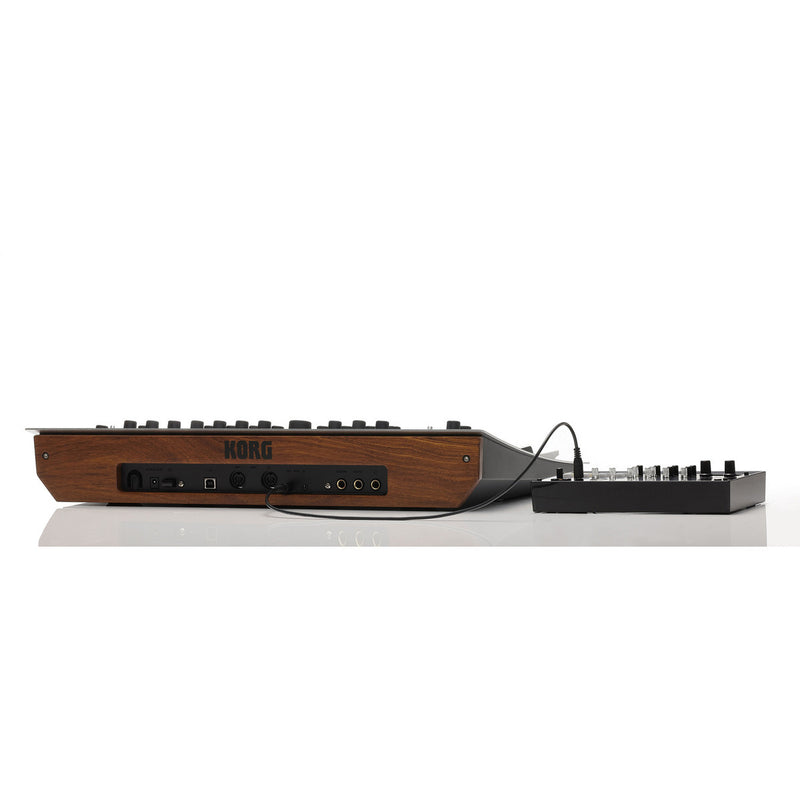

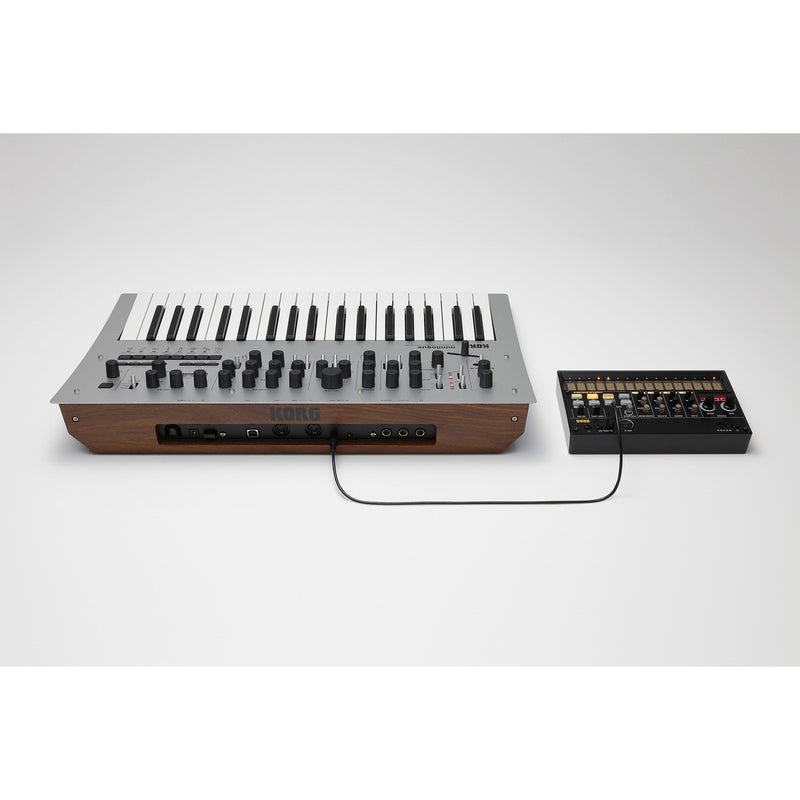

Alongside standard MIDI in/out, USB MIDI, and audio input/output, the Minilogue includes Sync In and Sync Out mini-jacks for integration with Korg’s Volca series, Electribe, and SQ-1 sequencers. This ensures seamless synchronisation with other hardware for expanded performance setups.

Premium Build Quality

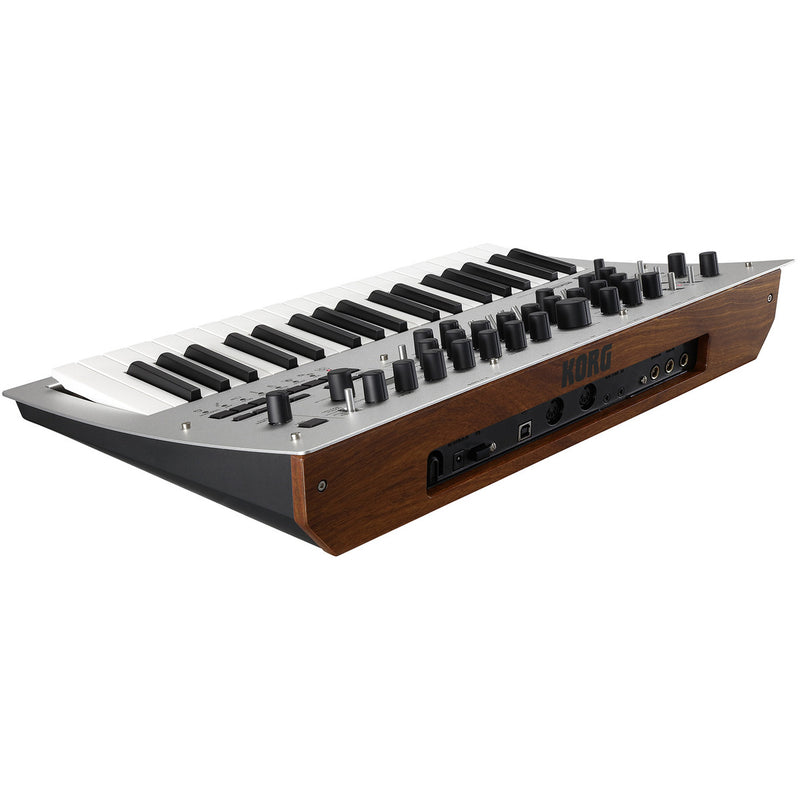

The instrument combines a sand-blasted aluminium front panel with a real wood back panel, solid chassis-mounted potentiometers, and rubber-coated knobs. This ensures both durability and a professional aesthetic suitable for touring and studio environments.

Specifications

• Keyboard: 37 velocity-sensitive slim keys

• Sound generation: Analogue synthesis

• Maximum polyphony: 4 voices

• Programmes: 200 total (100 presets / 100 user) with favourites function

• Voice modes: 8 (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)

• Sequencer: 16-step polyphonic with motion sequencing on four parameters

• Controls: 41 panel controls plus assignable slider

• Display: OLED oscilloscope with real-time waveform monitoring

• Power: DC9V AC adapter, 8 W consumption

• Dimensions: 500 × 300 × 85 mm

• Weight: 2.8 kg

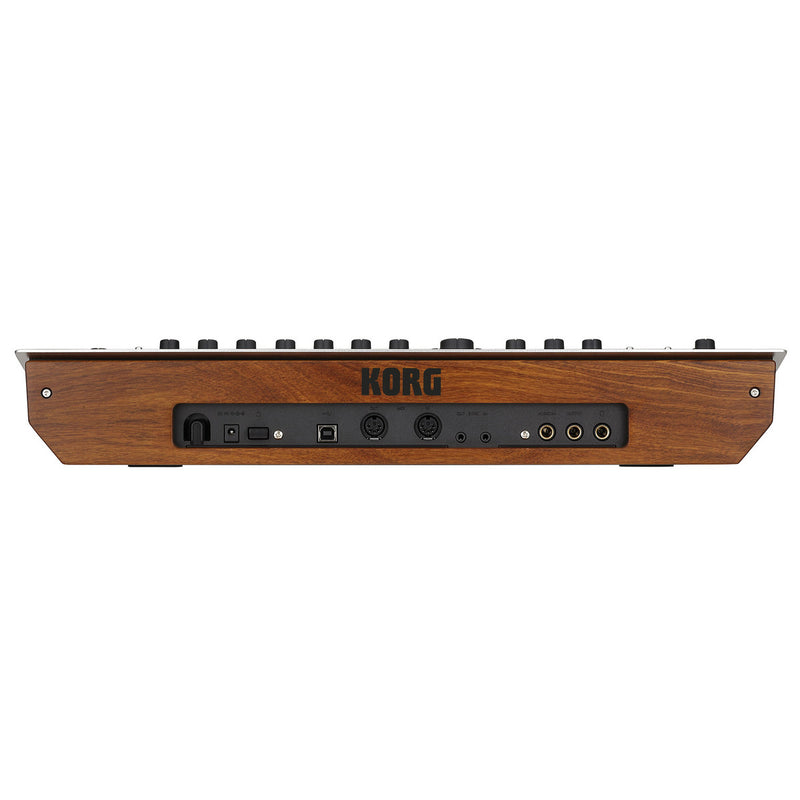

• Connectors: 6.3 mm stereo headphones out, 6.3 mm mono output, 6.3 mm audio input, 3.5 mm sync in/out, MIDI in/out, USB (Type B)

• Main synthesis parameters: Dual VCOs with saw, triangle, square waveforms, cross modulation, sync, ring modulation, mixer with noise source, multimode filter (2-pole/4-pole), EGs for filter and amp, LFO with multiple waveforms, delay with HPF cutoff and routing options

Why Choose the Korg Minilogue

• Four-voice analogue engine with eight versatile voice modes

• 200 programmable memory slots with 100 presets and 100 user patches

• OLED oscilloscope for real-time waveform display

• 16-step sequencer with motion automation for evolving sound design

• Premium build with aluminium top panel, wooden back and solid controls

• Seamless connectivity with MIDI, USB, Audio In/Out and Sync integration

• Compact 2.8 kg design ideal for live performance and studio use
