Neumann MT 48

Neumann MT 48

The Neumann MT 48 is a new 4-in / 8-out audio interface that sets a new benchmark in the industry with 78dB gain available on preamps, a dynamic range of up to 136 dB(A) and ADAT, SPDIF and AES67/RAVENNA expandability.

The Neumann MT 48 interface delivers unrivalled perfection to users' signal chains and fully translates the quality of Neumann microphones, offering pristine audio not found in other monitors or headphones.

Compared to other audio interfaces, the MT 48 offers four times the resolution with a dynamic range of up to 136 dB(A) and delivers up to 78 dB of gain, making it ideal for use with any microphone, including low-output ribbons. The MT 48 has powerful, ultra-low impedance headphone outputs that perform better than competing devices and external headphone amps.

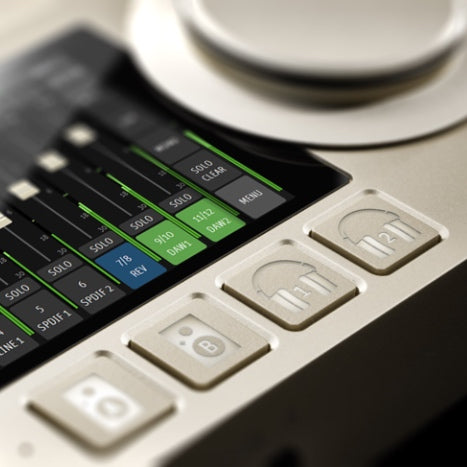

Ease of use is also an essential factor for users and the MT 48 addresses this by featuring a high-resolution touchscreen with an intuitive user interface. In addition, all settings are made on the device itself, eliminating the need for a controller application on the computer.

Powerful DSP

Moreover, the MT 48 is a fully featured digital mixing console with a powerful DSP that offers sophisticated EQ and dynamics processing in every channel, plus reverb for inspiring monitor mixes. With four analogue inputs and eight analogue output channels, the MT 48 has everything necessary for personal recording and can be expanded via ADAT / S/PDIF and AES67/RAVENNA to accommodate larger setups.

Merging partnership

Designed in collaboration with Merging Technologies, the Neumann MT 48 embodies Neumann's core values of superior quality and a hassle-free user experience.

Specifications

Mic Inputs 1-2

• Dynamic Range: 136 dB-A
• Equivalent Input Noise (150 Ohm): -128 dBu-A
• Input Impedance: 10 kΩ
• Gain Range: 12…+78 dB in 0.5 dB steps or 0.1 dB (fine)
• Pad: 12 dB/24 dB
• Max. Input Level: 0 /+12/+24 dBu (without Pad/with Pad)
• THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -110 dB (0.0003%)

Line Inputs 1-2

• Dynamic Range: 138.5 dB-A
• Input Impedance: 10 kΩ
• Gain Range: 0…+66 dB
• Sensitivity: +24 dBu…-42 dBu
• Max. Input Level: +24 dBu
• THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -105 dB (0.0006%)

Instrument/Line Inputs 3-4

• Dynamic Range: 135 dB-A
• Input Impedance: 2 MΩ (balanced) / 1 MΩ (unbalanced)
• Gain Range: 0…+66 dB
• Sensitivity: +18 dBu…-48 dBu
• Max. Input Level: +18 dBu
• THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -112 dB (0.0003%)

Line/Monitor Outputs

• Output Impedance: < 70 Ω
• THD+N@ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
• Dynamic Range: 123 dB-A
• Max. Output Level: +24 dBu

Headphone Outputs

• Output Impedance: 0.035 Ω
• Dynamic Range: 122 dB-A (high) / 117 dB (low)
• Max. Output Level: +16 dBu (high) /+8 dBu (low)

AES67/Ravenna

• Standard RJ-45 Gigabit-Ethernet-Anschluss

Expansion Connectivity

• ADAT/S/PDIF optical I/O
• MIDI I/O via 1/4” jack
• USB-C, 2.0 High Speed (480 MB/s) or higher

Power Consumption

• <25 W

• Optimised for Neumann's studio microphones, KH-series studio monitors, and NDH-series headphones
• High-precision AD converters yield a jaw-dropping dynamic range of 136dB
• 2 low-noise mic preamps with up to 78dB of gain
• 2 line/instrument inputs yield true reference-quality sound
• 4 analogue outputs for monitoring and patching in outboard gear
• 2 excellent-sounding headphone outputs
• Supports ADAT, S/PDIF, and AES67 digital expansion
• Includes onboard MIDI I/O
• Built-in DSP provides a fully parametric 4-band EQ, feature-rich dynamics processor, and studio-quality reverb
• Control 4 separate monitor mixes — with effects — directly from the unit's intuitive touchscreen
• DSP deploys for monitoring, printing effects, or both simultaneously via Direct Output Technology
