Iconic Sound Meets Modern Convenience
Capture the legendary Neve warmth and headroom while enjoying seamless integration with macOS or Windows, eliminating the need for additional drivers.
KEY FEATURES

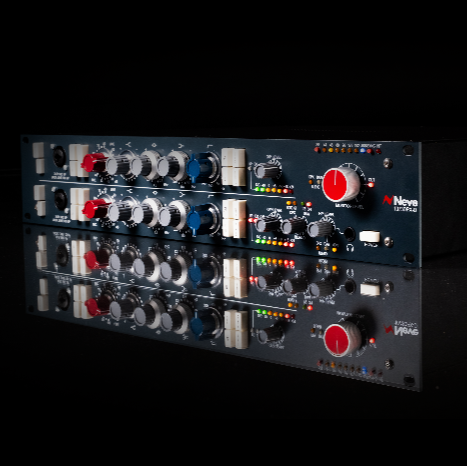

The Neve 1073DPX‑D merges two full‑size 1073 channel strips with a 10‑in/12‑out USB‑ADAT audio interface, delivering class‑A, transformer‑balanced pre‑amplification, inductive EQ, and 192 kHz/24‑bit AD/DA conversion in a compact rack‑mount chassis that plugs directly into macOS or Windows without drivers.
Classic Neve DNA Meets Modern Workflow
Neve preserves the legendary 1970s class‑A architecture, hand‑wound Marinair transformers and stepped‑gain ELMA switch that give the original 1073 its unmistakable warmth and headroom (> +26 dBu). The unit adds a new balanced DI input, switchable phantom power, impedance, pad and phase controls, and a dedicated headphone amp that drives vintage or contemporary headphones.
On the digital side, the built‑in USB/ADAT engine routes ten inputs and twelve outputs, allowing the 1073DPX‑D to act as a central hub or an analogue front‑end for an existing interface. Users can select USB/ADAT Hub Mode to expand a studio with additional Neve pre‑amps, or ADAT Audio Expander Mode to feed two analogue 1073 channels into another converter via a single optical cable.
Integrated Monitoring and Insert Capabilities

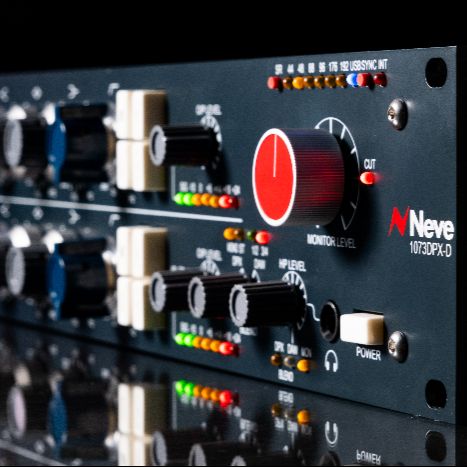

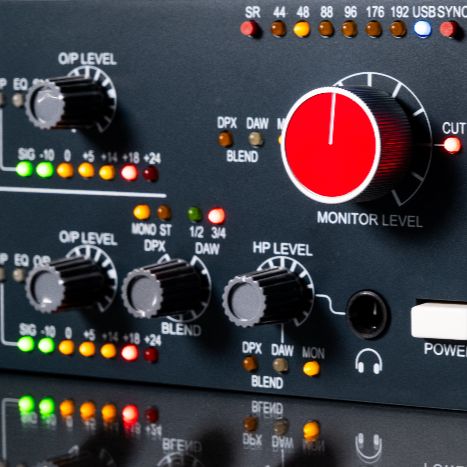

The device provides zero‑latency hardware monitoring, a classic Neve red loudspeaker‑level knob, and a blend control that balances DAW playback with live inputs. Engineers can send vocals, instruments or stems through the pre‑amp, EQ and DI, then return the processed signal digitally, achieving true analogue colour inside any DAW without patch bays.
Flexible I/O for Professional Studios
Front and rear mic/line inputs, a front DI, pre/post‑EQ insert loops, and balanced XLR outputs give users full routing freedom. Four analogue outputs support monitoring and outboard gear, while eight ADAT outputs deliver multichannel playback. The unit’s robust 2‑U rack format fits neatly into standard studio racks, and its hand‑wired SMT and through‑hole construction ensures long‑term reliability.
Why Choose Neve 1073DPX‑D
- Capture the iconic Neve sound with modern digital convenience.
- Expand your studio instantly via USB or ADAT without extra drivers.
- Route analogue colour into any DAW as a hardware insert for creative flexibility.
- Benefit from zero‑latency monitoring and independent headphone amplification.
- Future‑proof your workflow with two ADAT operating modes and scalable I/O.
- Two full‑size Neve 1073 channel strips in a 2‑U rack chassis
- Class‑A discrete circuitry with hand‑wound Marinair transformers
- Stepped 5 dB ELMA gain switch for precise recall
- Three‑band inductive EQ with ±16 dB shelves and ±18 dB mid boost
- High‑pass filter selectable per channel
- Balanced DI input with transformer‑balanced harmonics
- Switchable phantom power, impedance, pad and phase controls
- 192 kHz / 24‑bit AD/DA conversion, USB‑class compliant, driver‑free
- 10‑in / 12‑out USB‑ADAT interface, hub or expander mode
- Zero‑latency hardware monitoring with loudspeaker‑level knob
- Independent headphone output with dedicated amplifier
- Pre/post‑EQ insert loops for external processing
- Scalable ADAT expansion for multi‑mic sessions
- UK over £99 FREE
- UK under £99 £10
- EU £36
- Rest of World £80
Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.
We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock.
This item, like everything we supply, comes with the complete support of our expert team. Our excellent technicians have been specifying, building and supporting studios for over twenty years. If you have any problems with installation, setup or everyday use, they’re never more than a click away, and always happy to help.
You can contact them here.
KEY BENEFITS
Flexible Routing for Creative Freedom
Utilize front and rear mic/line inputs, pre/post-EQ insert loops, and balanced outputs to achieve versatile signal routing tailored to your studio needs.
Zero-Latency Monitoring for Efficiency
Experience real-time monitoring with independent headphone amplification, allowing you to blend live inputs with DAW playback effortlessly for optimal recording sessions.
