Neve StarNet ADA24 -24×24 Dante AD/DA Converter

The Neve StarNet ADA24 is a 24‑channel Dante‑enabled analogue‑to‑digital and digital‑to‑analogue converter that offers 32‑bit integer resolution, up to 192 kHz sampling, 119 dBFS ADC dynamic range, 122 dBFS DAC dynamic range and selectable analogue headroom of +18, +24 or +26 dBu, delivering pristine, transparent conversion for professional studios, broadcast facilities and live‑sound rigs.

Classic Heritage Meets Modern Innovation

Neve builds on its legendary 88RS console lineage, employing the same balanced line‑amplification technology for the analogue outputs while integrating contemporary Dante networking for low‑latency, IP‑based audio transport. The unit retains the familiar DB‑25 connectivity favoured by engineers, yet adds dual rear‑panel Dante ports that provide primary‑secondary redundancy and switched‑mode daisy‑chaining for robust, mission‑critical deployments.

High‑Resolution Conversion

The ADA24 converts analogue signals with 32‑bit integer precision, supporting sample rates from 44.1 kHz to 192 kHz. Its converters achieve a measured dynamic range exceeding 119 dBFS on input and 122 dBFS on output, with total harmonic distortion plus noise typically 0.0008 % at 1 kHz and +26 dBu. Frequency response stays within ±0.1 dB from 5 Hz to 22 kHz, ensuring flat, accurate reproduction across the audible spectrum.

Flexible Analogue Headroom

Engineers select analogue headroom of +18, +24 or +26 dBu to match the gain structure of any studio console or outboard gear. This flexibility aligns the ADA24 with both modern low‑noise converters and classic analogue desks, preserving signal integrity while preventing overload.

Precision Clocking and Low‑Jitter Performance

A low‑drift crystal oscillator paired with a precision phase‑locked loop supplies stable, low‑jitter clocking. The unit also hosts a 75 Ω BNC word‑clock input and output, allowing it to act as a master clock for complex multi‑device installations. Jitter‑elimination circuitry maintains conversion accuracy even under demanding conditions.

Redundant Dante Networking

Dual Dante Ethernet ports deliver automatic failover, guaranteeing uninterrupted audio flow. Engineers configure primary and secondary paths, or employ switched‑mode daisy‑chaining to expand the network without additional switches, ideal for broadcast trucks, large venues and distributed recording rooms.

Front‑Panel OLED Display and Remote Management

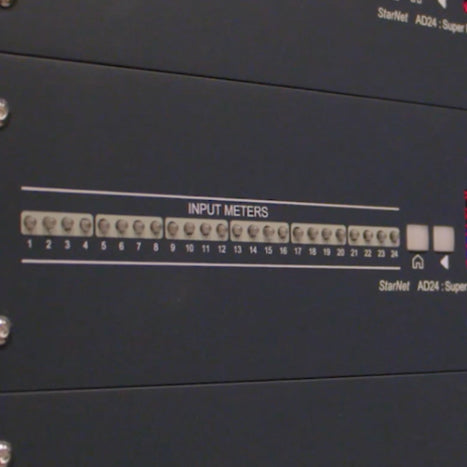

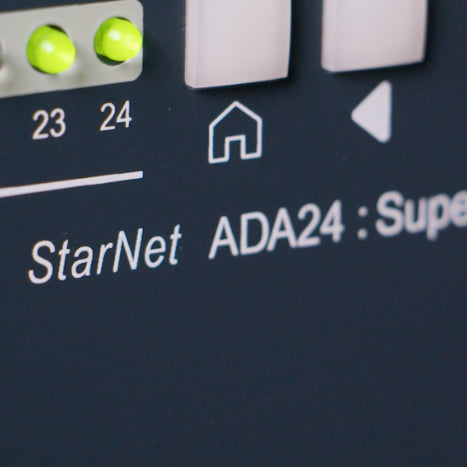

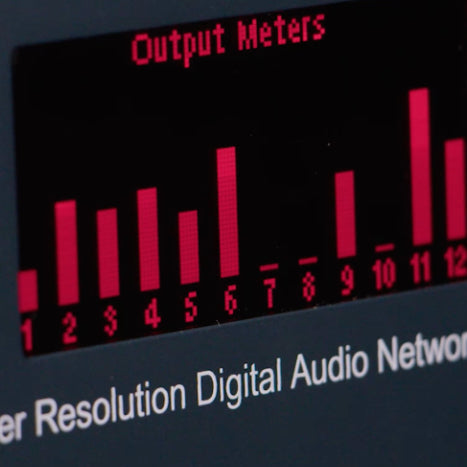

An OLED screen presents real‑time sample‑rate, bit‑depth, clock source, network status and level metering for all 24 inputs and outputs. Dedicated LEDs flag signal presence and clipping per channel. The Neve ADA24 Remote App lets users adjust output attenuation and mute channels from any networked device, protecting speakers and amplifiers during rehearsals or live events.

Robust Power and Thermal Design

An external universal‑voltage power supply (90–240 V AC) feeds a fan‑assisted chassis that dissipates 30 W of heat, ensuring reliable operation in tightly packed racks or high‑density facilities.

Why Choose Neve StarNet ADA24

• Seamless integration of classic Neve analogue pedigree with modern Dante IP workflow
• Unmatched conversion fidelity with 32‑bit integer resolution and >119 dBFS dynamic range
• Flexible headroom settings adapt to any studio or live‑sound environment
• Dual‑port Dante redundancy guarantees continuous audio even during network faults
• Real‑time visual monitoring and remote app control streamline session management

• 24 balanced analogue inputs (DB‑25, TASCAM standard)
• 24 balanced analogue outputs (DB‑25, TASCAM standard)
• Dual Dante Ethernet ports with primary/secondary redundancy
• 75 Ω BNC word‑clock input and output
• Selectable analogue headroom: +18, +24, +26 dBu
• 32‑bit integer conversion, up to 192 kHz sample rate
• ADC dynamic range >119 dBFS, DAC dynamic range >122 dBFS
• THD+N typically 0.0008 % at 1 kHz, +26 dBu
• Frequency response ±0.1 dB, 5 Hz – 22 kHz
• OLED front‑panel display with per‑channel metering and clipping LEDs
• Remote management via Neve ADA24 Remote App
• External universal‑voltage PSU (90–240 V AC) with fan‑assisted cooling
