Rupert Neve Designs 2x 5052 Modules, Wooden Chassis, & PSU

This bundle comes with two Rupert Neve Shelford 5052 housed in a beautiful wooden box and the Rupert Neve PSU-5

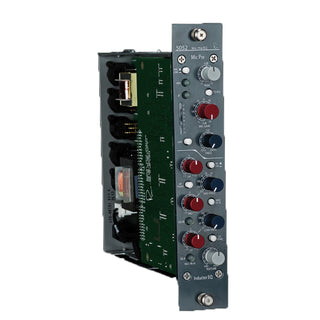

The Rupert Neve Designs Shelford 5052 is a vintage-style mic pre and 3-band EQ inspired by some of the most popular and timeless outboards.

The Rupert Neve Designs Shelford 5052 mic updates the classic designs to include many new features such as simultaneous pre / post tape operation, variable Silk/Texture control found on the Portico II series. The Shelford 5052 combines the best of his classic designs with the best components and modern performance.

The mic preamp of the Shelford 5052 delivers 72dB of discrete class-A gain, which is coupled with square-core transformers and features Rupert Neve's modern Silk / Silk Blue and Texture controls found on his Portico II series. This allows you to control your tonality further adding more flexibility by adding between 4-5% Total Harmonic Distortion (THD) mainly from the 2nd order but some 3rd order harmonics as well to deliver a richer, thicker sound. Without the Silk button engaged, the sound is a very modern pristine sound with Rupert's signature sound so revered throughout the world. Additional features of the mic preamp include Mic/Line selection, a sweepable 20-250Hz high-pass filter, 48V phantom power, and polarity reversal.

The Shelford 5052 uses a transformer-coupled output which can route the preamp's signal to tape or your DAW before reaching the EQ section while still using the Silk and Texture options. Alternatively, a compressor can be connected between the preamp and the EQ section or both pre and post EQ sources can be fed into the recording system. A "To EQ" button can be engaged to route the signal into the EQ as a regular channel strip would.

The 3-band EQ of the Shelford 5052 is reminiscent of its vintage legend, using the best of each of Rupert's Neves original designs. From the Low-Frequency band based on the 1064 known for its creamy and resonant bass sound to the mid and high bands based on the ultimate 1073, the Shelford 5052 is sure to become a modern classic. The 5052's homage to the classic designs of the past is only matched by many of the modern features such as a blending inductor circuitry which allows you to get a great vintage tone but with greater control, while a low-feedback class-A discrete electronics prevent low-level artefacts and harshness occurring when shaping your sound. Although referring to timeless classics, the Rupert Neve Designs Shelford 5052 uses modern components and techniques setting it apart from its predecessors and a powerful unit in its own right.

Specifications :

MIC PREAMP

NOISE
Un-weighted, 22 Hz - 22 kHz, source impedance 150 Ohm balanced.
Mic Pre Out @ unity gain: Better than -102 dBV
Main Out @ unity gain: Better than -103 dBV
With gain @ +66 dB: Better than -60 dBV
Equivalent Input Noise: Better than -126 dB
Gain Unity: up to +66 dB in 6 dB steps followed by a +/- 6 dB trim

LINE INPUT
Gain +/- 6 dB continuously adjustable

MIC PRE OUTPUT
Un-weighted, 22 Hz - 22 kHz, source impedance 40 Ohm balanced.
No load: Via line input with 40 Ohm source impedance

NOISE
Better than -102 dBV

FREQUENCY RESPONSE
+/- 0.1 dBu from 10 Hz to 31.5 kHz
-2.6 dB @ 120 kHz

MAXIMUM OUTPUT LEVEL
25 dBu

TOTAL HARMONIC DISTORTION AND NOISE
@ 1 kHz, +20 dBu output level, no load: Better than 0.002%
@ 20 Hz, +20 dBu output level, no load: 0.25% Typical (2nd and 3rd harmonic)

MAIN OUTPUT
Measured via line input.

NOISE
Un-weighted, 22Hz - 22kHz, source impedance 40 Ohm balanced.
No load: Better than -102 dBV

FREQUENCY RESPONSE
+/- 0.1 dBu from 10 Hz to 40 kHz
-1 dB @ 174 kHz

MAXIMUM OUTPUT LEVEL
25 dBu

TOTAL HARMONIC DISTORTION AND NOISE
@ 1 kHz, +20 dBu output level, no load: Better than 0.002%
@ 20 Hz, +20 dBu output level, no load: 0.08% Typical (2nd and 3rd harmonic)

TOTAL HARMONIC DISTORTION AND NOISE WITH SILK ENGAGED

RED
TEXTURE @ min.
@ 100 Hz, +20 dBu input level, no load 0.015%, mostly 3rd harmonic (typical)

TEXTURE @ max.
@ 100 Hz, +20 dBu input level, no load 1.5%, mostly 2rd harmonic (typical)

BLUE
TEXTURE @ min.
@ 100 Hz, +20 dBu input level, no load 0.0075%, mostly 3rd harmonic (typical)

TEXTURE @ max.
@ 100 Hz, +20 dBu input level, no load 1%, mostly 2rd harmonic (typical)

EQ INPUT
Un-weighted, 22 Hz - 22 kHz, source impedance 40 Ohm balanced.
No Load: Noise Better than -105 dBV

FREQUENCY RESPONSE
+/- 0.1 dBu from 10 Hz to 40 kHz
-1 dB @ 174 kHz

MAXIMUM OUTPUT LEVEL
26 dBu

TOTAL HARMONIC DISTORTION AND NOISE
@ 1 kHz, +20 dBu output level, hi Z: Better than 0.002%
@ 20 Hz, +20 dBu output level, hi Z: 0.006% Typical (2nd and 3rd harmonic)

HIGH PASS FILTER
Continuously variable swept frequency from 20 Hz to 250 Hz.
Slope: 12 dB/Octave

EQUALISER ENGAGED

NOISE
Un-weighted, 22 Hz-22 kHz, source impedance 40 Ohm balanced.
No load: Better than -95 dBV

MAXIMUM OUTPUT LEVEL
25 dBu

PHANTOM POWER
Supplied by internal switching converter, switch selectable on front faceplate

MAXIMUM INPUT
From 20 Hz to 20 kHz, +25 dBu

POWER REQUIREMENTS
@ +/-24VDC maximum current draw: 0.26A/0.20A

DIMENSONS
9.375” H x 1.75” W
