RODEC ONE + MINISTYLER BUNDLE

Legendary Stereo filter

Compact stereo analogue filter module for the 100-series that combines the iconic Sherman Filterbank circuitry with continuously morphable low-pass, band-pass, and high-pass modes, CV and audio-reactive modulation, self-oscillating resonance, a powerful drive stage with dry/wet blend, and seamless integration with the Rodec ONE — a high-headroom modular interface featuring balanced I/O, MIDI sync, CV control, sidechain input, and rugged portability for both studio and live performance.

Read More

CAP2: 0 £645.00 £537.50 ex VAT

AVAILABLE TO ORDER

Sold out but more on the way. Contact us for accurate delivery time and our best price.

Check Availability & Get Our Best Price

WHY CHOOSE TO BUY FROM KMR AUDIO?

  • 22+ Years Industry Experience
  • Rated “Excellent” By Our Customers
  • Lifetime Tech Support, Always Free
  • Easy 14 Day Returns

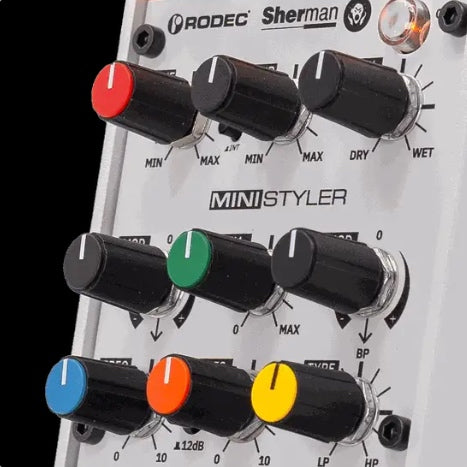

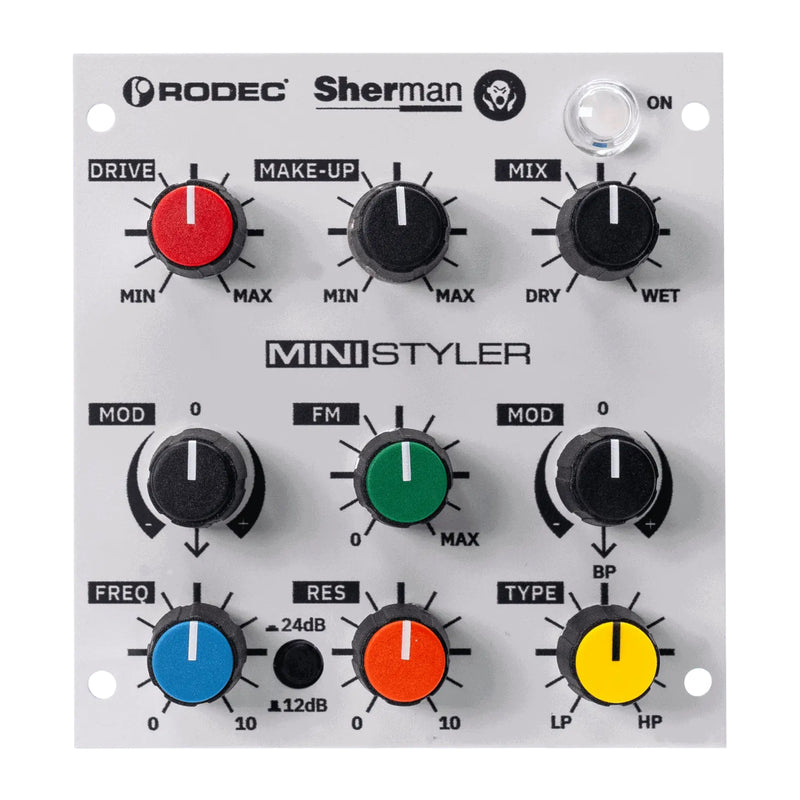

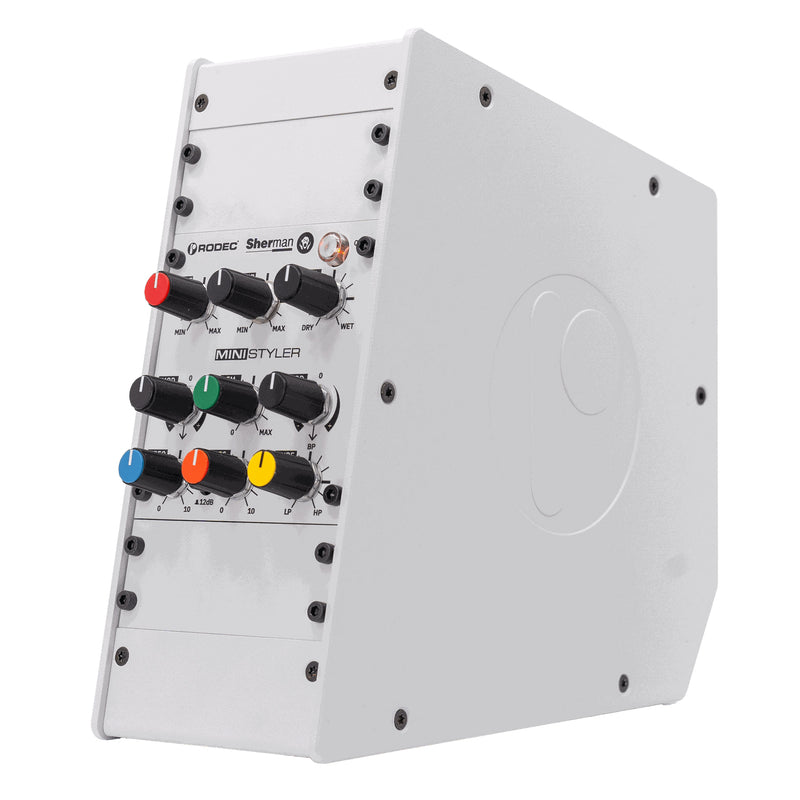

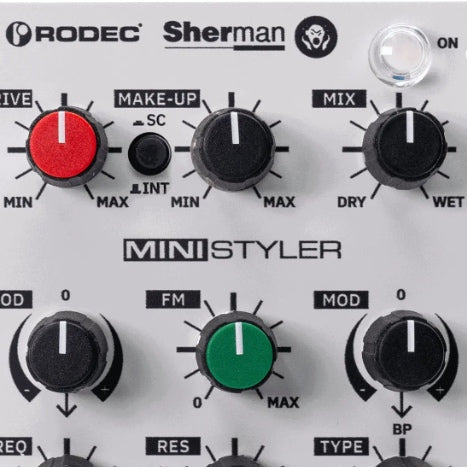

The Rodec ONE Ministyler is a stereo analogue filter module built for the 100-series format, combining the legendary Sherman Filterbank circuitry with CV, FM, and audio-reactive modulation in a compact, high-headroom unit.

Sherman Analogue Circuitry, Reborn

At the core of the Ministyler lies the classic Sherman filter architecture, now redesigned for modular use. It offers seamless morphing between low-pass, band-pass, and high-pass filtering, with selectable 12dB or 24dB slopes. Users can drive the resonance into self-oscillation, generating screaming tonal peaks, harmonic saturation, or even a controllable sine-wave oscillator. This implementation captures the raw sonic aggression and flexibility that defined the original Filterbank, now optimised for modern stereo signal paths.

Modulate with CV, FM or Audio

The Ministyler features fully analogue modulation options, including control voltage (CV) inputs, FM from the incoming audio signal, and audio-reactive movement. These modulation paths can influence both filter frequency and mode, enabling complex dynamic responses such as pulse-driven sweeps, envelope-shaped cuts, or rhythmically synced filter transitions. The result is a filter module that behaves as a performance instrument in its own right.

Drive Circuit with Dry/Wet Control

The onboard gain stage adds makeup gain and introduces controlled analogue saturation. A dedicated dry/wet blend allows for precise balancing of clean and processed signals, enabling applications ranging from gentle warmth on synths and vocals to destructive, harmonically rich textures for drums and basslines.

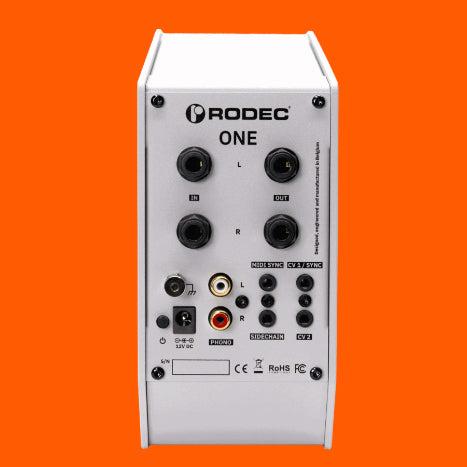

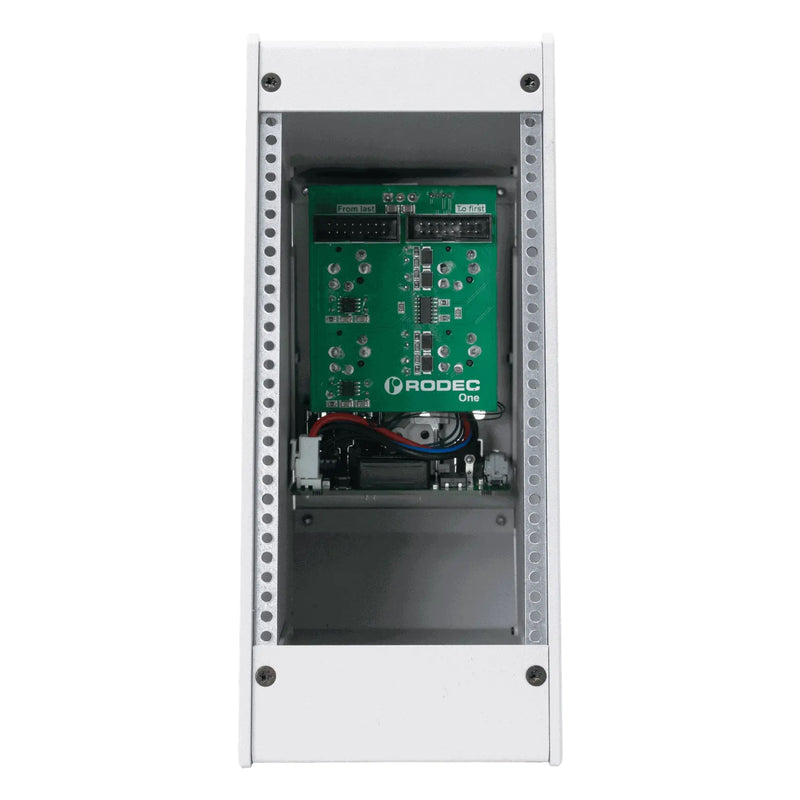

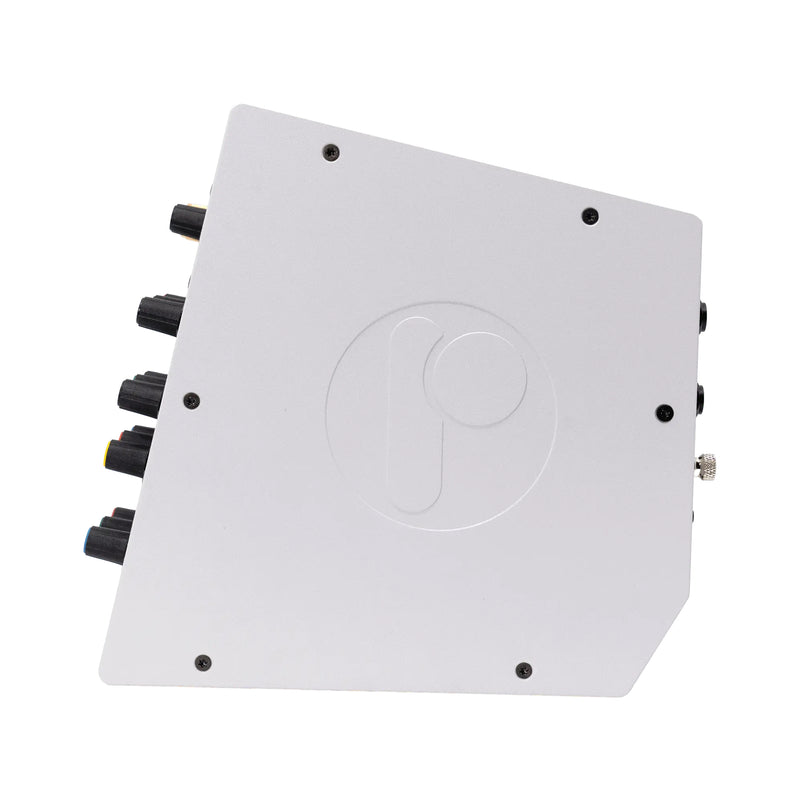

Rodec ONE: Modular Integration, Pro-Level I/O

Designed to be the modular system’s control centre, the Rodec ONE is a compact, road-ready mixer and interface with high-headroom balanced stereo inputs and outputs. It includes dedicated phono preamps with grounding for direct turntable connection and integrates seamlessly with external hardware via CV inputs, MIDI, pulse sync, and sidechain capability. Whether in a modular rig, DJ setup, or hybrid DAW system, the ONE acts as both a creative tool and a central routing hub.

+26dBU of Headroom with Analogue Depth

The Rodec ONE delivers +26dBU of balanced output headroom, preserving punch and detail even when signals are driven into saturation. This clean operating range enhances both tracking and playback, ensuring high dynamic integrity and clarity during live performance or studio use.

Modular, Musical, and Mobile

Built for mobility and immediacy, the Rodec ONE supports fast-paced workflows with tactile analogue controls and flexible signal routing. Ideal for jamming, live sets, or modular improvisation, it brings professional-grade analogue sound into a portable, modular-friendly format.


Specifications :

Format:

  • Module Type: Stereo 100-series Module

Compatibility:

  • Designed for use in:
  • Rodec 500 to 100 series adapter (https://www.rodec.com/shop/500-to-100-series-adapter-26)
  • Rodec One  (https://www.rodec.com/one)

Main Controls & Features:

  • Up to +30dB of Gain
  • Makeup Control
  • Dry/Wet blend

Filter Section:

  • Original Sherman circuit design
  • Slope: Switchable, 12dB/octave or 24dB/octave
  • Frequency: Manual knob control (CV controllable)
  • Resonance: Manual knob control (Capable of self-oscillation)
  • Type: Manual knob control (Continuously variable: Low Pass <-> Band Pass <-> High Pass) (CV controllable)

Modulation:

  • CV Control Inputs (+/-5V):
  • Filter Frequency
  • Filter Type
  • Internal Audio Modulators:
    • Quantity: 2
    • Function: Modulate Filter Frequency and Type (selectable positive or negative modulation)
    • Source: Incoming audio signal
  • FM Modulation:
    • Function: Filter Frequency Modulation
    • Modulator Source: Incoming audio signal

Dimensions

  • 75.85mm x 80.9mm (16HP high)
  • Stereo analogue filter module with Sherman Filterbank circuitry
  • Morphable low-pass, band-pass, and high-pass modes with 12/24dB slopes
  • Self-oscillating resonance for tonal shaping or oscillator use
  • Audio-reactive, FM, and CV-based modulation for filter frequency and mode
  • Drive circuit with makeup gain and dry/wet blend control
  • Rodec ONE offers balanced +26dBU stereo I/O and CV, MIDI, sidechain inputs
  • Compact 100-series design ideal for modular, live, and studio integration
DPD UPS
  • UK over £99 FREE
  • UK under £99 £10
  • EU £36
  • Rest of World £80

Large/Heavy items: Extra charges may apply (e.g., consoles, large monitors). We’ll contact you before processing if so.

We ship with DPD and UPS across the UK, EU and worldwide. Same-day within the M25 is available depending on stock.

This item, like everything we supply, comes with the complete support of our expert team. Our excellent technicians have been specifying, building and supporting studios for over twenty years. If you have any problems with installation, setup or everyday use, they’re never more than a click away, and always happy to help.

You can contact them here.

RODEC ONE + MINISTYLER BUNDLE

RODEC ONE + MINISTYLER BUNDLE

AVAILABLE TO ORDER

KEY BENEFITS

**Legendary Sherman Filter Architecture**

The Rodec ONE Ministyler features a redesigned Sherman filter circuit, enabling seamless transitions between low-pass, band-pass, and high-pass filters for diverse sound sculpting.

**Versatile Modulation Capabilities**

Equipped with CV, FM, and audio-reactive modulation, the Ministyler allows dynamic manipulation of filter frequency and mode, making it a highly interactive tool for performance and studio work.

**High-Fidelity Audio with Extensive Headroom**

With +26dBU of balanced output headroom, the Rodec ONE maintains audio integrity and clarity even under high saturation, perfect for both live performance and studio settings.
