Oberheim Teo 5 Module

The Oberheim TEO-5 Desktop Module is a five-voice analogue synthesiser that delivers Oberheim’s renowned tone and modulation depth in a compact desktop format. Each voice features two voltage-controlled oscillators, a sub oscillator and a noise generator, providing lush, powerful and harmonically rich sounds. Oscillator sync, selectable triangle, saw and variable pulse waves, through-zero FM and switchable key tracking give users an expansive tonal range, while the authentic SEM filter morphs smoothly from low-pass through notch to high-pass, offering dynamic control during sound shaping or performance.

Iconic Analogue Design

The TEO-5 uses the same core engine as the keyboard version, maintaining its full analogue signal path for warmth and clarity. Its SEM filter and DADSR envelopes provide precise sculpting over tone and amplitude, reacting expressively to velocity and keyboard tracking. The sub oscillator and noise generator add further depth and texture, making it suitable for pads, basses, leads or complex layered timbres.

Advanced Modulation and Routing

A 19-slot modulation matrix with 19 sources and 64 destinations gives near-limitless flexibility. Users can assign LFOs, envelopes, velocity, aftertouch or audio-rate modulation to parameters such as filter cutoff, oscillator pitch or effect depth. The two LFOs, each with five waveforms and tempo sync, deliver rhythmic movement or evolving textures. Two five-stage envelopes extend traditional ADSR control, allowing more expressive sound transitions and detailed modulation control.

Effects, Arpeggiator and Sequencer

The built-in effects engine enhances creative sound design. A dedicated reverb with damping, pre-delay, decay and tone parameters provides ambience, while a second multi-effect processor includes chorus, flanger, phaser, ring modulation, delays, distortion, rotary speaker, Lo-Fi and high-pass filter effects. A separate overdrive circuit adds warmth and analogue grit. The 64-step polyphonic sequencer supports ties and rests for complex rhythmic structures, and the versatile arpeggiator includes multiple time divisions, octave ranges and play modes. Internal, tap-tempo and MIDI sync ensure perfect timing integration in both live and studio environments.

Direct Control and Connectivity

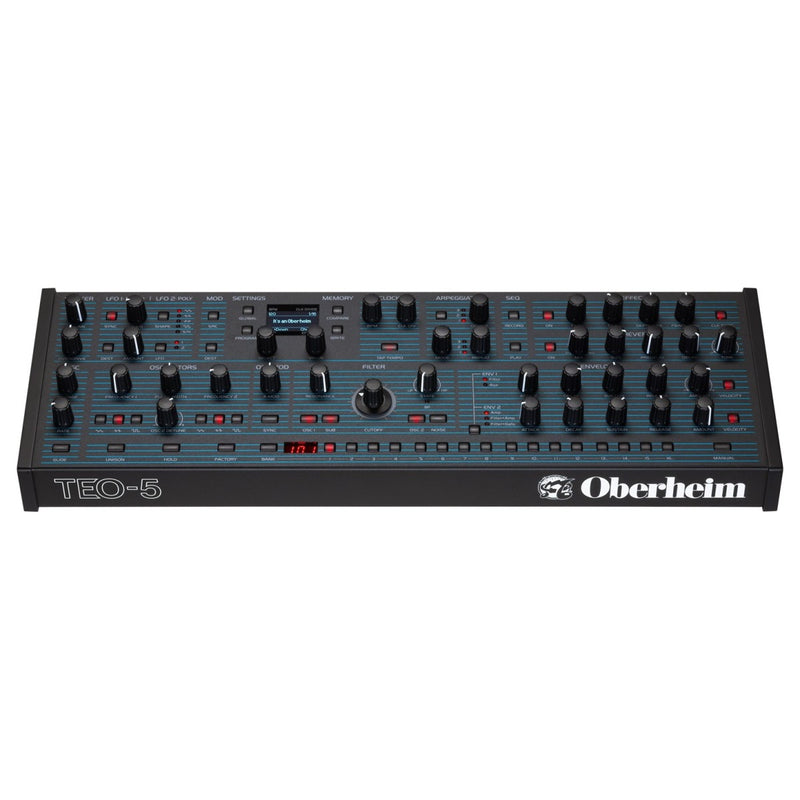

All parameters are accessible from the top panel, providing immediate tactile control. Manual mode ensures that the sound reflects the physical position of the controls, while performance features such as note hold, polyphonic glide and configurable unison mode deliver expressive flexibility. Connectivity includes stereo outputs, headphone output, MIDI In/Out/Thru, USB MIDI, and pedal inputs for volume and sustain. With 512 total patch slots (256 user and 256 factory programs), users can store and access an extensive sound library with direct recall.

Why Choose the Oberheim TEO-5 Desktop Module

• Compact format retaining full Oberheim analogue architecture

• Distinctive SEM filter with continuous morphing between filter types

• Highly flexible 19-slot modulation matrix for advanced routing

• Intuitive front-panel layout for direct, immediate sound control

• Built-in reverb, delay and modulation effects for complete sound shaping

• Powerful arpeggiator and 64-step sequencer for creative composition

• Classic Oberheim warmth with modern digital precision

• Seamless studio and live integration via MIDI, USB and expression inputs

• Five-voice analogue polysynth engine
• Two VCOs, sub oscillator and noise generator per voice
• Simultaneously selectable triangle, saw and variable pulse waves
• Oscillator sync and through-zero FM control
• Switchable key tracking for each oscillator
• SEM filter morphing from low-pass through notch to high-pass
• Band-pass mode with bi-polar filter envelope and velocity sensitivity
• Two five-stage (DADSR) envelopes for filter and amplifier
• Dual tempo-syncable LFOs with five waveforms
• 19-slot modulation matrix with 19 sources and 64 destinations
• Audio-rate modulation routing options
• Dedicated overdrive and Lo-Fi effects
• Reverb with pre-delay, damping, decay and tone control
• Multi-effects engine with chorus, flanger, phaser, delays, ring mod and more
• 64-step polyphonic sequencer supporting ties and rests
• Versatile arpeggiator with multiple time divisions and play modes
• Manual mode reflecting physical control positions
• Polyphonic portamento and unison stacking
• Vintage knob introducing voice-to-voice analogue variation
• 512 patch slots (256 user + 256 factory)

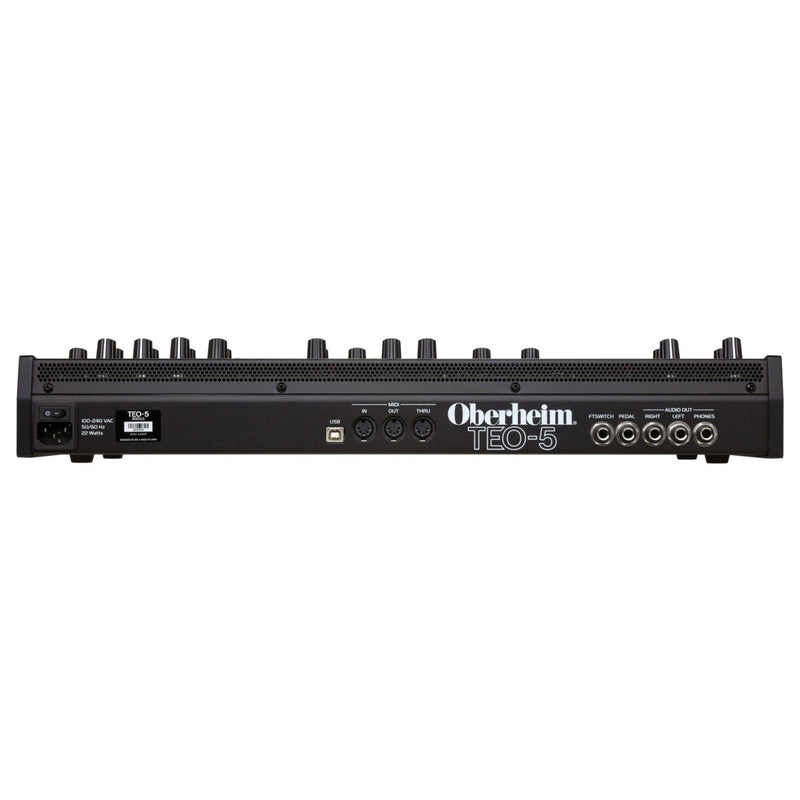

• Stereo audio outputs, headphone jack, MIDI In/Out/Thru and USB MIDI
• Volume and sustain pedal inputs
• Master clock with tap tempo, BPM display and MIDI sync
• Dimensions: 59.4 x 24.6 x 19.1 cm
• Weight: 4.5 kg
