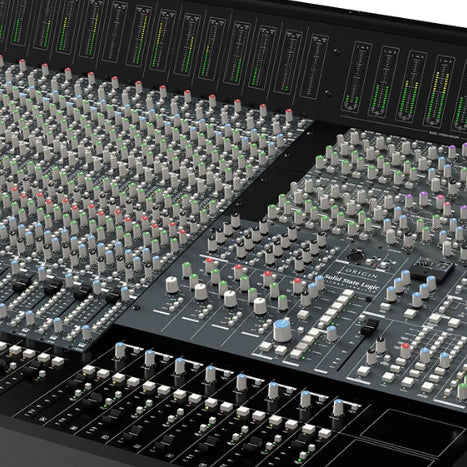

Solid State Logic SSL Origin EVO 16

The Solid State Logic ORIGIN EVO 16 is a compact 16‑track in‑line analogue console that marries the revered 4000 Series sonic DNA with contemporary hybrid‑workflow enhancements, presenting PureDrive mic preamps, the iconic 242 “Black Knob” E‑Series EQ, refined E‑Series dynamics, dual high‑pass/low‑pass filters, a modernised SSL Bus Compressor and electronic routing for up to 44 inputs.

PURE‑DRIVE MIC PRE

The PureDrive preamp on the ORIGIN EVO 16‑Channel supplies engineers with a dual‑personality front‑end: an ultra‑transparent, low‑noise capture path and a colour‑rich, VHD‑inspired DRIVE mode that adds warm harmonic distortion when desired. Its discrete transistor architecture guarantees pristine fidelity while the optional saturation retains the unmistakable SSL character in a single unit.

E‑SERIES EQ

Every channel houses the celebrated 242 “Black Knob” equaliser, originally co‑designed with Sir George Martin for the SL 4000 E. The four‑band parametric layout offers high‑frequency and low‑frequency bell‑shelf switches, dedicated HMF and LMF Q controls and a full‑circuit bypass, empowering users to sculpt tonal balances with the precision that has defined professional mixes for more than forty years.

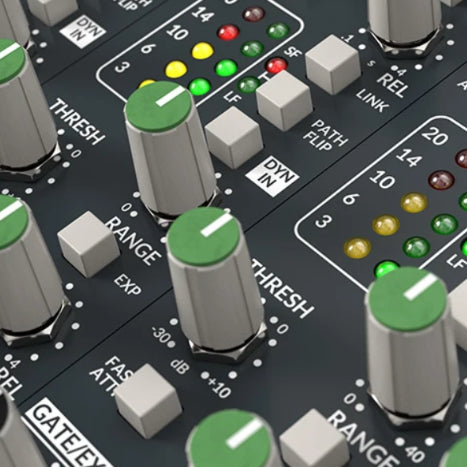

E‑SERIES DYNAMICS

The dynamics section reproduces the classic ’80s SSL compression and gating circuitry on each channel. True‑RMS side‑chain detection, an all‑discrete gain‑reduction stage and the genuine Class‑A VCA chip deliver the original punch and speed. Three selectable compression characters—fast attack, soft‑knee bypass and either logarithmic or linear release—provide versatile tonal shaping, while the LINK function forwards the side‑chain signal to neighbouring channels for chained processing.

HIGH‑ AND LOW‑PASS FILTERS

Both an 18 dB/octave high‑pass filter and a 12 dB/octave low‑pass filter sit in the channel strip, granting expanded tonal sculpting. Each filter can be routed to the dynamics side‑chain, enabling precise control for tasks such as drum gating or de‑essing. The ability to reverse filter order (EQ → Filter or Filter → EQ) further widens creative options.

HYBRID PRODUCTION WORKFLOWS

A 19‑inch rack‑mounted modular centre section adapts to varied studio layouts. Users can slot a UF8 DAW controller, shift the Stereo Group fader tile and reposition the 3U centre meter panel for optimal sightlines. Insert points on both the large and small faders, together with a 0 dB fader bypass, streamline stem printing and the insertion of additional analogue processing.

THE BUS COMPRESSOR – ENHANCED

The legendary SSL Bus Compressor reappears in the ORIGIN EVO 16‑Channel with authentic circuitry plus fresh capabilities. New compression ratios, an insert return for external processing and an integrated side‑chain high‑pass filter extend the classic “glue & punch” while preserving the historic sonic fingerprint that has powered innumerable hit records.

THE SSL MIX BUS

The mix bus follows the SSL tradition of ultra‑low noise and minimal distortion through an entirely analogue design. This architecture enables effortless summing with clear separation and a spacious stereo image, furnishing engineers with a robust platform for creative mixing.

ADVANCED BUS ROUTING

Electronic routing supplants conventional top‑strip switches, eradicating repetitive hand‑reaches and boosting reliability by removing heat‑sensitive components. A single ROUTE selector, coupled with intelligent multi‑select finger presses, simplifies session configuration and curtails routing mistakes.

SOLID STATE LOGIC ORIGIN EVO 16‑CHANNEL FEATURES

The console presents a 16‑channel in‑line format, up to 44 inputs at mixdown, small and large faders, two stereo cue outputs, two mono buses, eight track buses, PureDrive mic preamps delivering +70 dB clean gain, the classic 242 EQ, authentic E‑Series dynamics, dual high‑pass/low‑pass filters, an upgraded Bus Compressor and a modular centre section for seamless DAW controller integration.

Why Choose ORIGIN EVO 16‑Channel

• Timeless SSL character – classic 242 EQ and faithful dynamics provide the recognised analogue warmth and impact.
• Hybrid‑ready modular centre – integrates DAW controllers and outboard gear without disrupting workflow.
• Dual filtering with side‑chain routing – affords precise tonal control for specialised processing.
• Modernised Bus Compressor – new ratios and insert return broaden creative possibilities while retaining the iconic glue.
• Reliable electronic routing – eliminates heat‑prone switches, reducing maintenance.
• PureDrive preamps – +70 dB clean gain plus a colour‑rich DRIVE mode for versatile capture.

• 16‑channel in‑line analogue console, up to 44 inputs at mixdown
• Small and large faders with 0 dB bypass for stem printing
• Two stereo cue outputs, two mono buses, eight track buses
• PureDrive mic preamps delivering +70 dB clean gain and a DRIVE mode for warm harmonic colour
• Iconic 242 “Black Knob” E‑Series EQ: four‑band parametric, HF/LF bell‑shelf switches, dedicated
• HMF/LMF Q controls and full‑circuit bypass
• E‑Series dynamics: compressor/limiter, expander/gate, true‑RMS side‑chain detector, authentic Class‑A
• VCA chip, three compression characters (fast attack, soft‑knee bypass, logarithmic/linear release) and LINK side‑chain routing
• High‑pass filter (18 dB/oct) and low‑pass filter (12 dB/oct), both switchable to the dynamics side‑chain and capable of filter‑order reversal
• Enhanced SSL Bus Compressor with additional compression ratios, insert return for external processing and built‑in side‑chain high‑pass filter
• Electronic bus routing via a single ROUTE selector and multi‑select finger presses, eliminating traditional top‑strip switches
• Modular 19‑inch centre section accommodating a UF8 (or UF1) DAW controller, movable Stereo Group fader tile and repositionable 3U meter bridge
