Upgrade kit allowing existing ORIGIN owners retrofit their consoles with EVO‑spec channel strips using affordable 8‑channel upgrade kits, enabling a staged, cost‑effective transition to the full EVO feature set; each kit replaces legacy modules with the new dynamics, EQ, and PureDrive™ preamp architecture.
At a glance
- 8‑channel upgrade kits that replace legacy channel modules with EVO‑spec components
- Allows existing ORIGIN consoles to be retrofitted in stages, spreading cost over multiple purchases
- Installs the new PureDrive™ mic preamp architecture, providing up to +70 dB clean gain and DRIVE mode on upgraded channels
- Introduces the authentic SSL E‑Series dynamics (LINK side‑chain, true‑RMS detector, Class‑A VCA gain‑reduction) to each upgraded channel
- Adds the iconic 242 “Black Knob” four‑band parametric EQ with HF/LF bell‑shelf switches, HMF/LMF Q controls and true circuit bypass
- Incorporates the high‑pass (18 dB/oct) and low‑pass (12 dB/oct) filters, routable to the side‑chain for precise tonal shaping
- Enables the upgraded channels to integrate seamlessly with the modular centre section, preserving ergonomic workflow and allowing custom outboard processor placement
- Provides compatibility with the integrated UF8/UF1 DAW controllers and advanced electronic bus routing already present in the base console
- Maintains the original SSL signal path quality while delivering the modern hybrid workflow features of ORIGIN EVO.

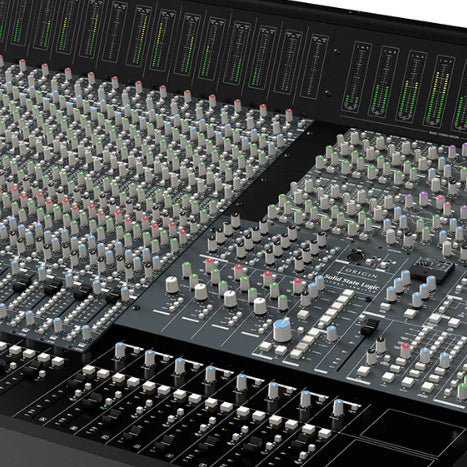

The Solid State Logic SSL Origin EVO upgrade kit is a modular 8‑channel analogue console upgrade that blends the legendary 4000‑Series E‑Series EQ and VHD‑derived drive circuitry with modern hybrid‑workflow ergonomics, delivering pristine low‑noise transparency, selectable saturation, and extended filtering in a rack‑mountable format.
Upgrade Kit
SSL supplies an 8‑channel upgrade kit that retrofits existing ORIGIN consoles, allowing phased implementation and cost‑effective expansion. Engineers connect directly to the kit and benefit from the same build quality as original SSL hardware.

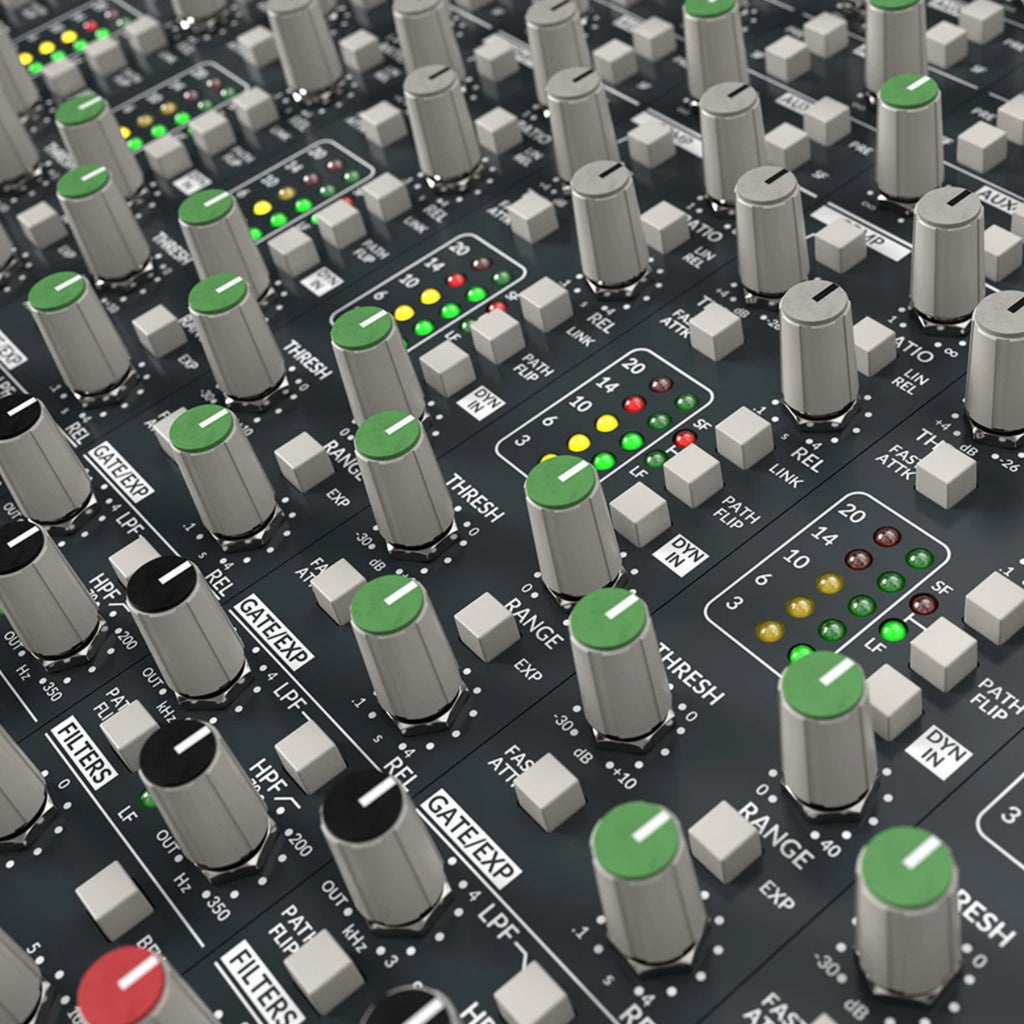

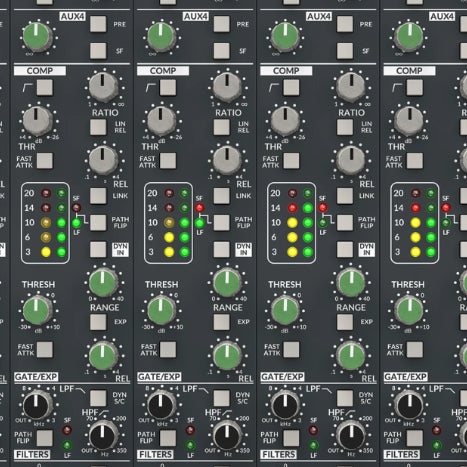

Authentic E Series Dynamics
ORIGIN EVO equips each channel with SSL’s iconic E‑Series dynamics, a hallmark of the classic 1980s SSL sound, delivering punchy, aggressive compression and ultra‑fast gating through original‑spec circuitry that captures the authentic 4000 E character. Every compressor incorporates a LINK function that routes the side‑chain signal to the neighbouring channel, enabling consecutive channels to operate together. The dynamics section employs a true‑RMS side‑chain detector and an all‑discrete gain‑reduction stage identical to the Class‑A VCA chip found in the original console. Controls allow the engineer to bypass the soft‑knee curve, engage a fast attack, and choose between logarithmic or linear release, providing three distinct compression flavours that have defined countless classic recordings.
PureDrive™ Mic Pre
The PureDrive™ microphone preamp provides two distinct sonic personalities: a high‑resolution, ultra‑clean path and a warm, harmonically‑rich drive mode derived from SSL’s VHD technology. Switching between transparency and character requires a single knob, giving instant tonal flexibility for tracking, stem printing, or creative processing.
E‑Series EQ
Each channel incorporates the iconic 242 “Black Knob” EQ from the 4000‑Series consoles, a design co‑developed with Sir George Martin. The four‑band parametric layout supplies surgical frequency control that has defined professional mixes for over four decades.
High‑ and Low‑Pass Filters
The channel strip features an 18 dB/octave high‑pass filter paired with a new 12 dB/octave low‑pass filter. Both filters can be routed to the dynamics side‑chain, enabling precise frequency shaping for gating, de‑essing, or compressor trigger control.
Hybrid Production Workflows

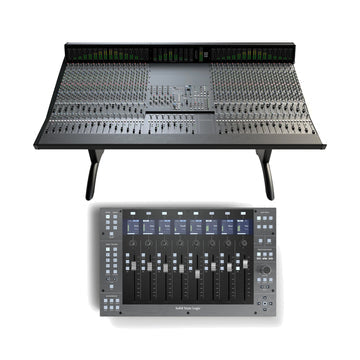

A 19‑inch rack‑mounted centre section houses a modular layout that accommodates UF8 or UF1 DAW controllers, a movable Stereo Group fader tile, and a re‑positionable 3U metre panel. Engineers enjoy seamless integration of outboard gear, 0 dB fader bypass for stem printing, and insert points on both Large and Small faders for additional processing.
Why Choose SSL ORIGIN EVO Upgrade Kit
- Instant tonal versatility – switch between crystal‑clear and coloured sound without extra hardware.
- Proven legacy – classic 4000‑Series EQ and VHD‑inspired drive deliver trusted sonic character.
- Future‑proof workflow – modular rack design adapts to DAW controllers and outboard gear.
- Precise filtering – dual high‑ and low‑pass filters with side‑chain routing enhance dynamic control.
- Scalable upgrade – eight‑channel kits allow staged implementation on existing consoles.
