Heritage Audio 73 DI ACTIVE ONE CHANNEL DI

The Heritage Audio 73 DI ONE is a single-channel active DI box with a Class A JFET input stage, a custom low-impedance output transformer, and full phantom power operation.

Classic 73 Topology for Modern Instruments

Heritage Audio has adapted its renowned 3-transistor Class A topology into a DI format, retaining the iconic 2N3055-driven transformer-coupled output stage. The first transistor is replaced with a J109 JFET, delivering a 2.2 MΩ input impedance, ideal for extracting the full tonal character of passive instruments while ensuring compatibility with active sources. Powered by +48V phantom power, the 73 DI ONE preserves headroom while delivering the harmonic saturation associated with vintage 73 preamps.

Transformer-Driven Output

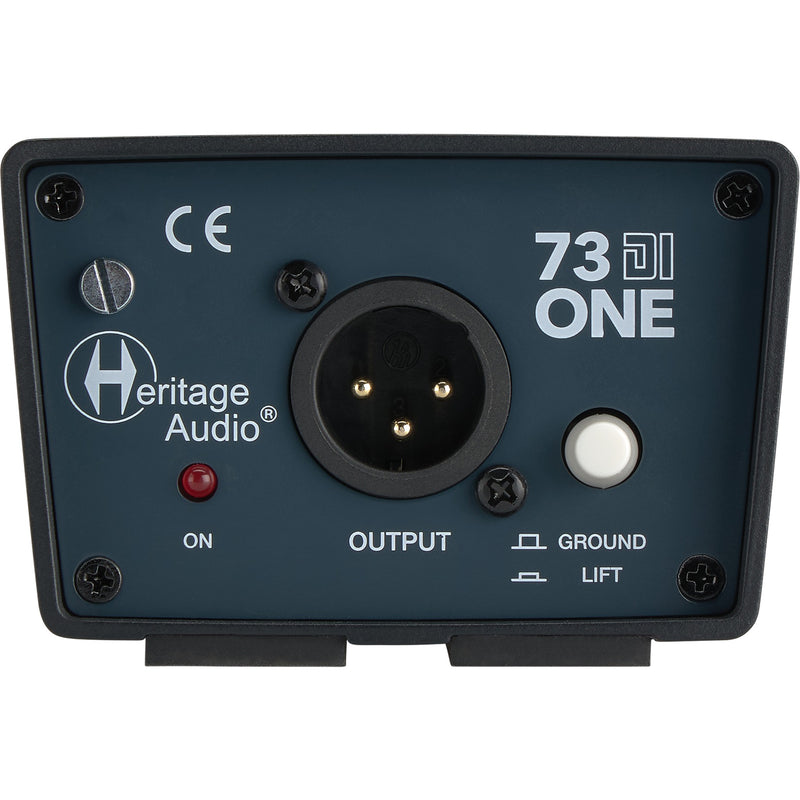

A custom-designed silicon steel, grain-oriented output transformer — a phantom-safe version of the classic LO1166 — drives the signal with remarkable integrity. The transformer enhances the natural body of the instrument while maintaining clarity, dynamics, and noise rejection. A ground lift switch eliminates unwanted hum, while the isolated output ensures interference-free performance.

Enhanced Functionality

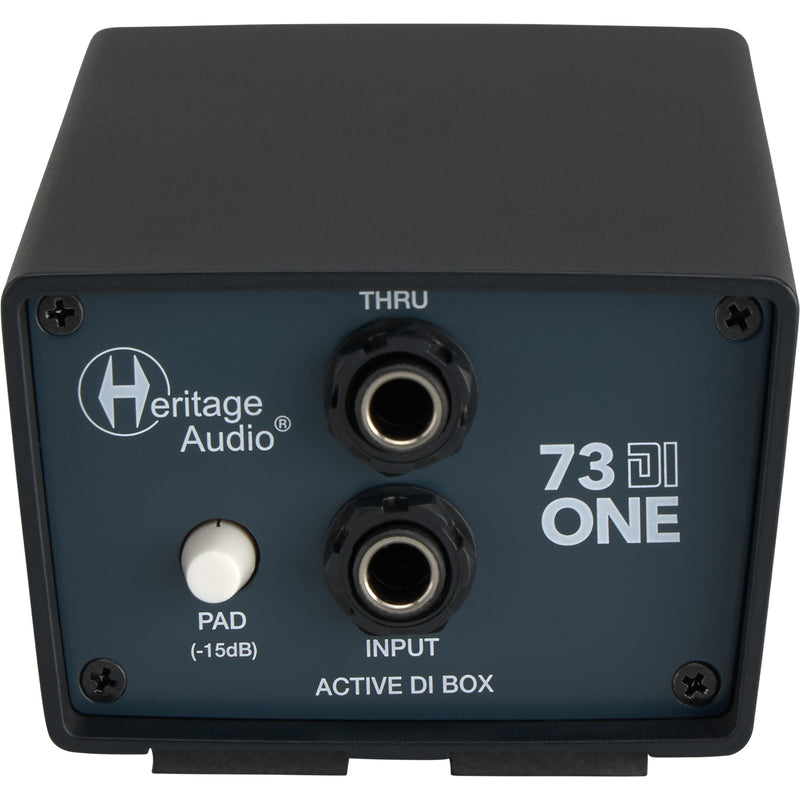

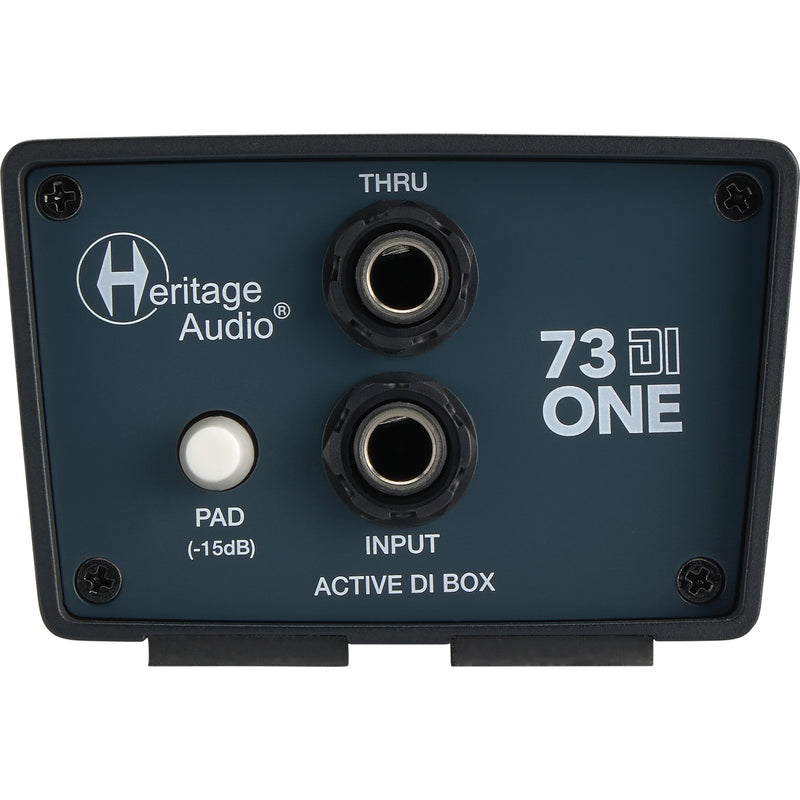

The 73 DI ONE features a 15dB pad, allowing direct connection of hotter instruments or even speaker outputs. Gold-plated input, thru, and XLR connectors guarantee maximum conductivity and reliability. A red LED indicator confirms phantom power status, while durable metal switches rated for over 25,000 cycles ensure road-ready operation. The frequency response fully captures the harmonic complexity of instruments, adding warmth and definition where needed.

Built for Professional Environments

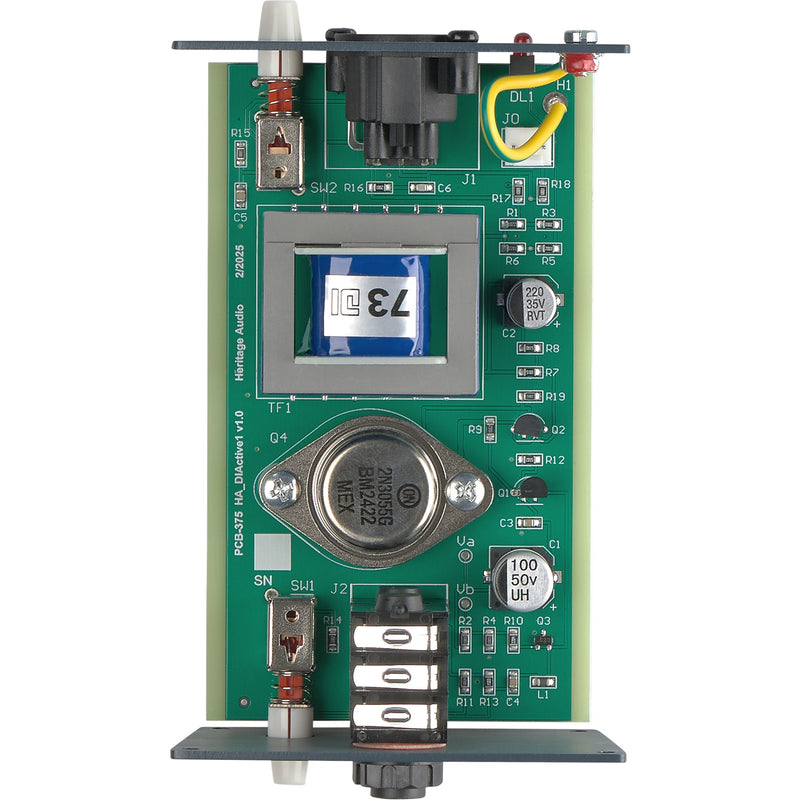

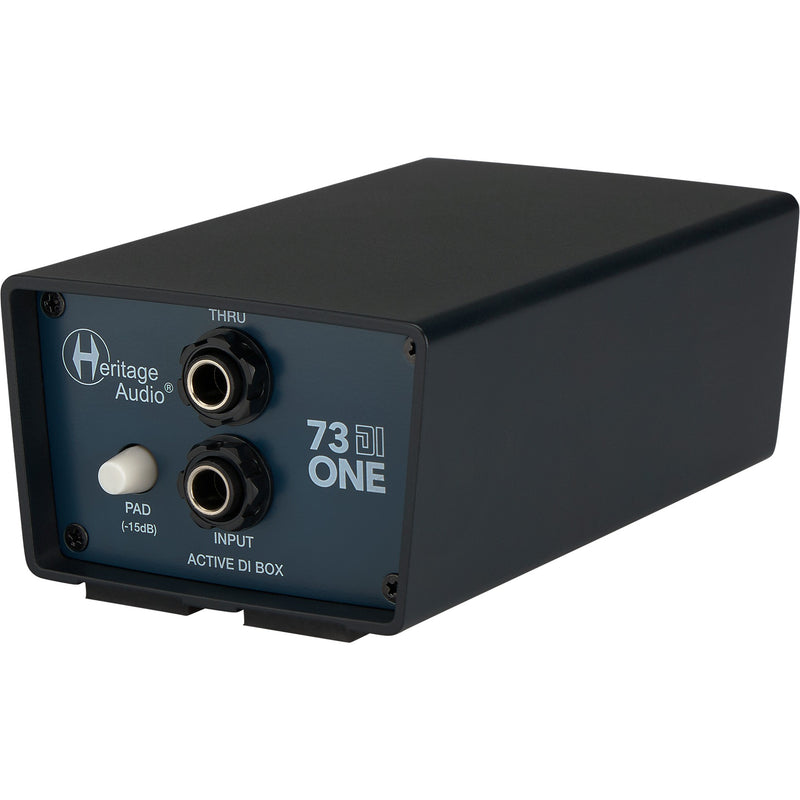

The 73 DI ONE employs a rugged extruded aluminium case with recessed connections, making it virtually indestructible on stage or in the studio. A MIL-spec PCB with a full ground plane ensures ultra-quiet operation, while the 14-gauge steel housing protects against physical stress and potential component failure.

Why Choose the 73 DI ONE?

• Class A JFET discrete input stage for maximum fidelity

• Custom-designed 73-DI output transformer for vintage tone and noise rejection

• Wide headroom to handle guitars, basses, keyboards, and even speaker outputs

• Rugged 14-gauge steel enclosure with extruded aluminium housing

• MIL-spec PCB with full ground plane for ultra-low noise operation

• Durable switches tested to 25,000 cycles

• Gold-plated jacks and XLR for superior connectivity

• 15dB pad for hotter signals

• Ground lift switch to eliminate hum

• Phantom powered via +48V with red LED indicator

• Single channel active DI
• Class A JFET discrete input stage for high input impedance
• Heritage Audio custom 73-DI transformers with vintage LO1166 design
• 2N3055-driven transformer output for harmonic saturation
• Operates on +48V phantom power with red LED indicator
• Wide input headroom for guitars, basses, keyboards, synths, and samplers
• 15dB pad for hot signals or speaker-level inputs
• Ground lift switch for hum elimination
• Gold-plated input, thru, and XLR connectors
• Rugged extruded aluminium housing with recessed connections
• 14-gauge steel chassis for durability
• MIL-spec circuit board with full ground plane for ultra-quiet performance
• Durable switches tested for 25,000 cycles
