Heritage Audio TRANSFORMER PASSIVE DUAL CHANNEL DI

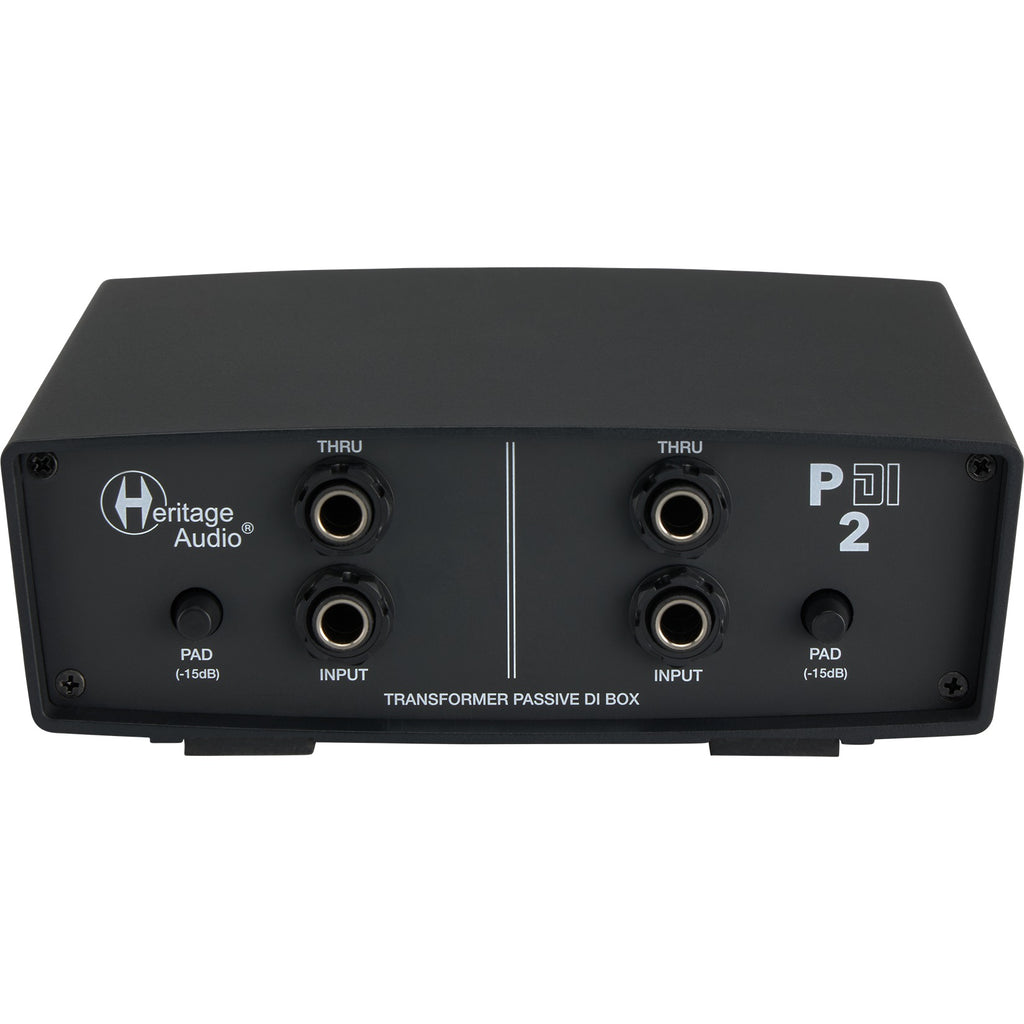

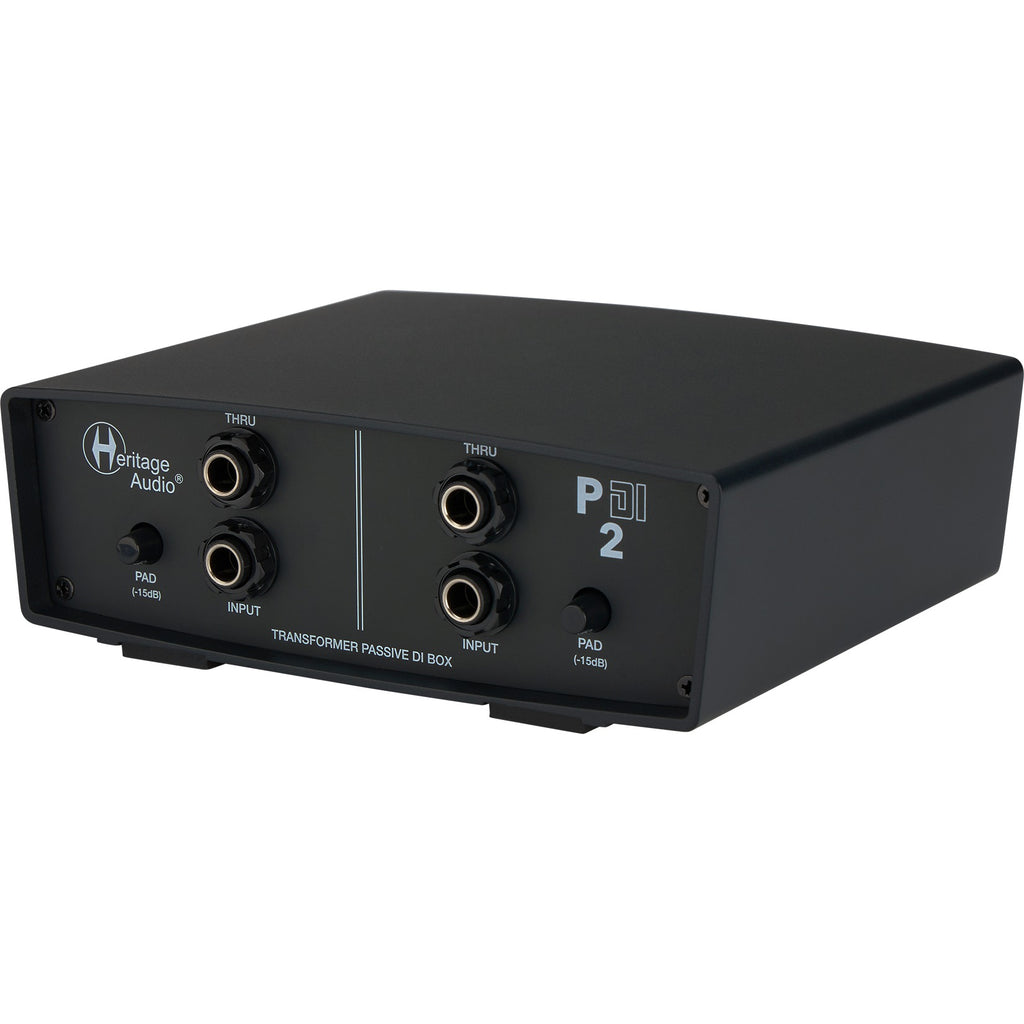

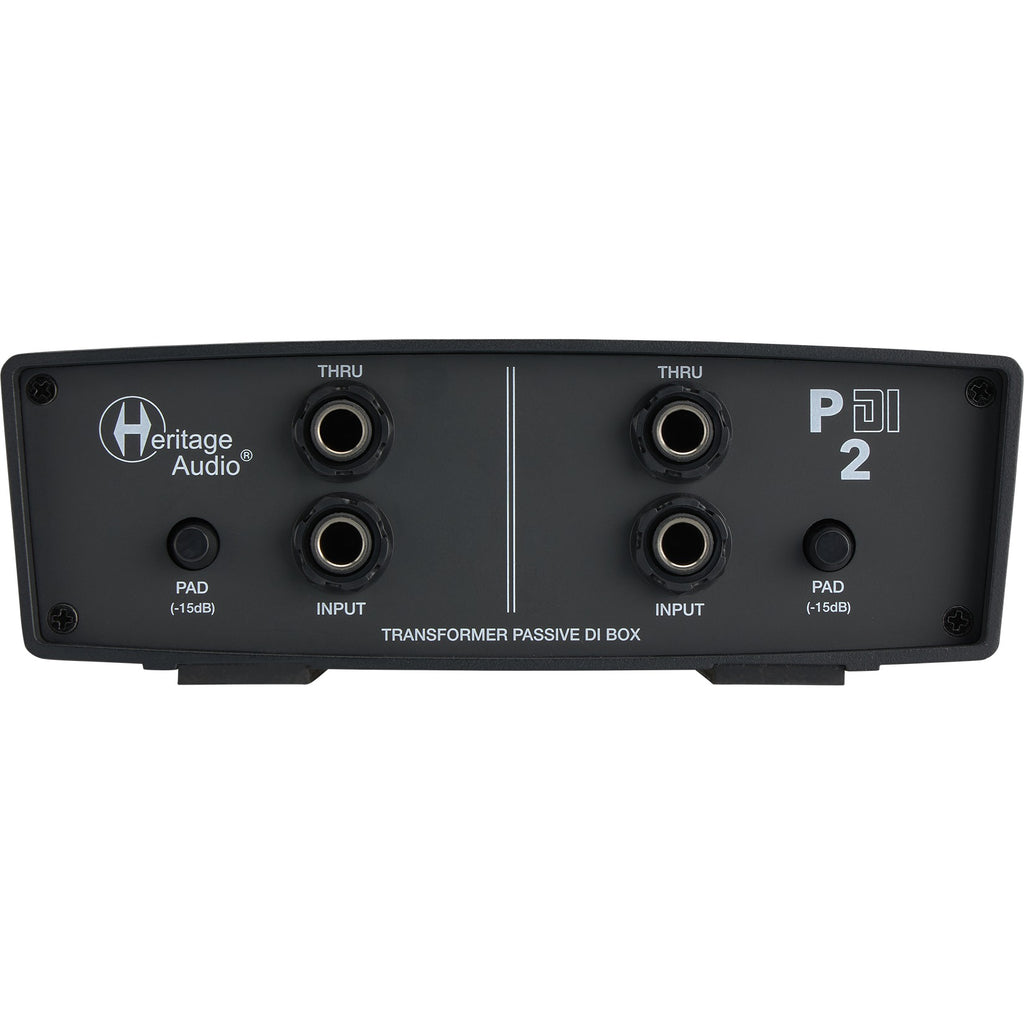

The Heritage Audio P DI 2 is a dual channel passive DI box that extends the same premium design philosophy to stereo or multi-instrument setups.

Dual-channel Transparency

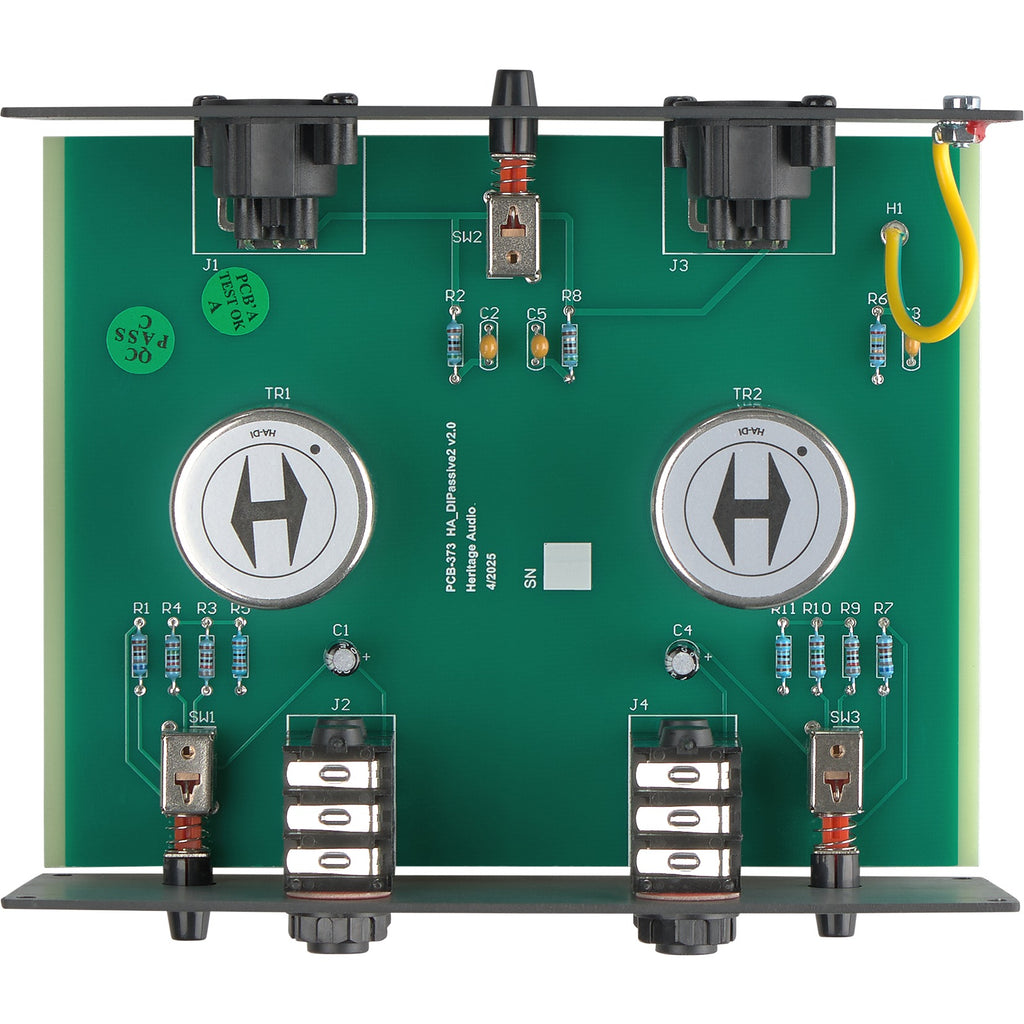

Equipped with two HA-DI custom transformers, each with nickel cores and MU Metal shielding, the P DI 2 guarantees unmatched clarity, noise rejection, and hum elimination across both channels.

Robust and Reliable

The P DI 2 shares the same 14-gauge steel chassis and MIL-spec circuit board design as the P DI ONE, ensuring a lifetime of dependable performance. Gold-plated jacks and XLR outputs ensure the cleanest transfer possible, while heavy-duty switches provide years of faultless operation.

Enhanced Functionality

With independent 15dB pads and ground lift switches for each channel, the P DI 2 adapts seamlessly to complex live and studio environments. A 20Hz–18kHz frequency response preserves the full spectrum of audio detail, making it the ideal choice for professional multi-instrument setups.

Why Choose the P DI 2?

• Dual-channel design for stereo or multiple instruments

• Two HA-DI transformers for ultra-transparent sound

• MU Metal shielding for superior EMI rejection

• Rugged 14-gauge steel housing

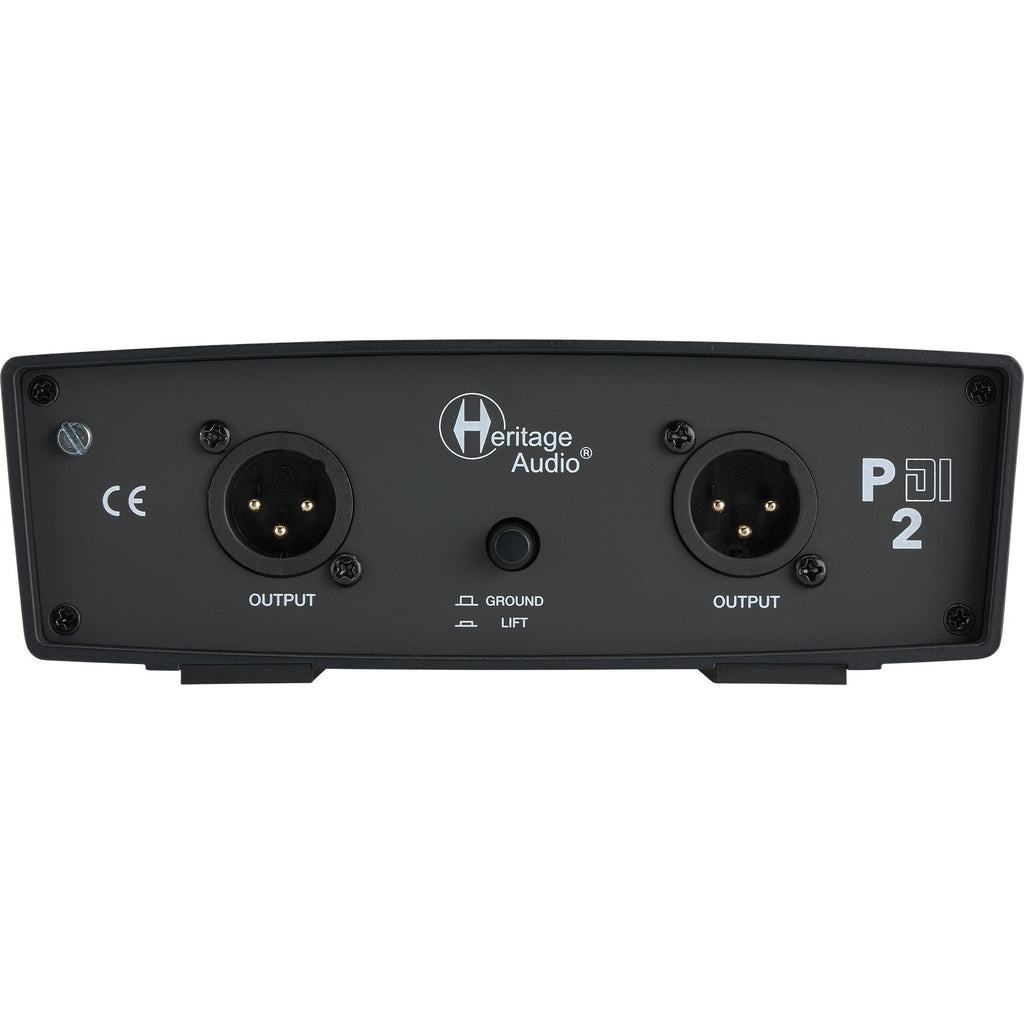

• Gold-plated inputs, thru connections, and XLR outputs

• Independent 15dB pads and ground lift switches

• Full ground plane PCB for minimal noise

• Long-life switches rated for 25,000 cycles

• Wide 20Hz–18kHz frequency response
